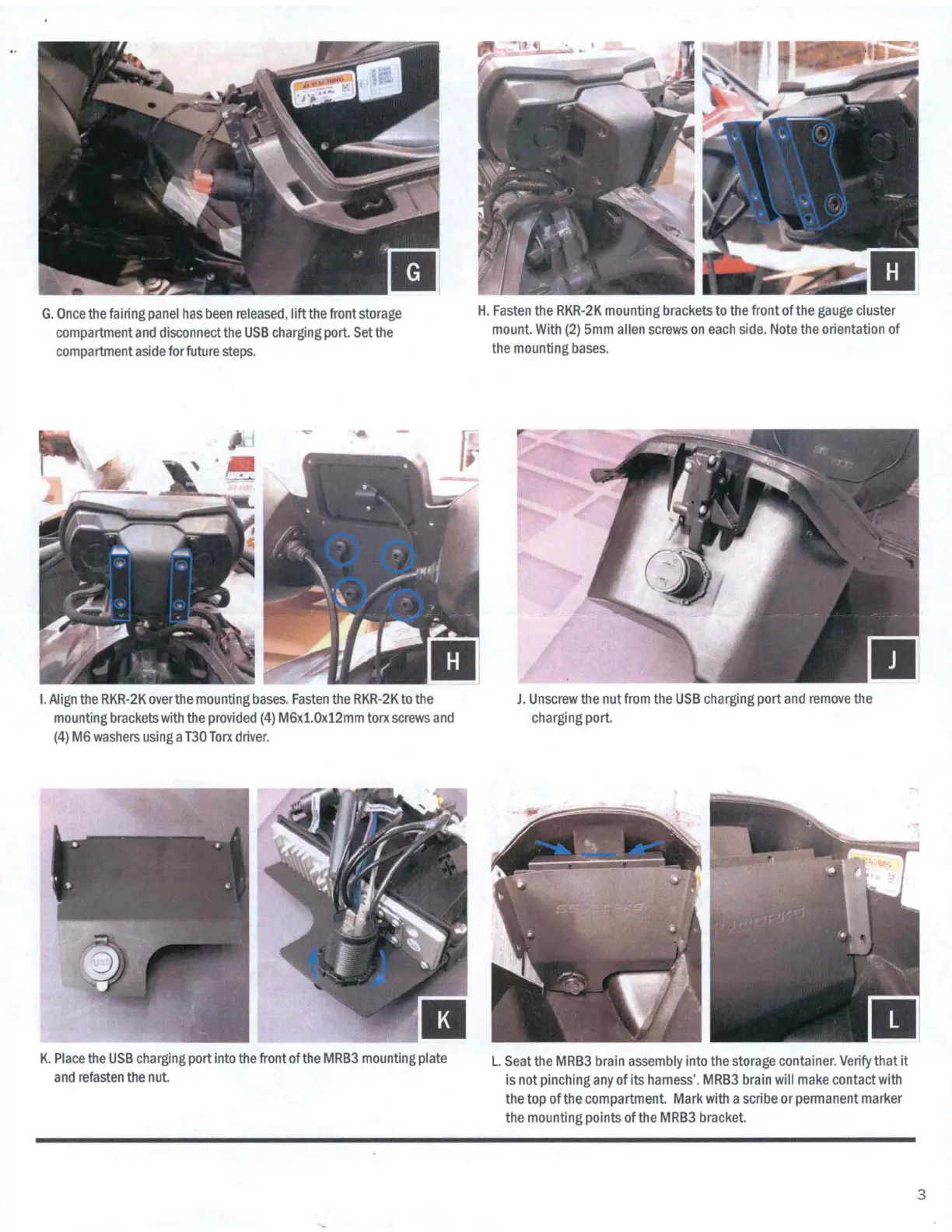

G. On ce the fairing panel has been released , lift the front storage
compartment and disconnect the USB charging port. Set the
compartment aside for future steps.
I. Align the RKR-2K over the mounting bases. Fasten the RKR-2K to the
mount i ng brackets with the provided (4) M6xl.Ox12mm torx screws and
(4) M6 washers using a T30 Torx driver .
K. Place the USB charging port into the front of the MRB3 mounting plate
and refasten the nut.
H. Fasten the RKR - 2K mounting brackets to the front of the gauge cluster
mount. With (2) 5mm alien screws on each side . Note the orientation of
the mounting bases .
J. Unscrew the nut from the USB charging port and remove the
charging port.
L. Seat the MRB3 brain assembly into the storage conta i ner . Verify that it
is not pinching any of its harness '. MRB3 brain will make contact with
the top of the compartment. Mark with a scribe or permanent marker
the mounting points of the MRB3 bracket.
3
