ST ST7735R - 10.2.4 INVCTR (B4 h): Display Inversion Control

ST7735R
V0.2 129 2009-08-05

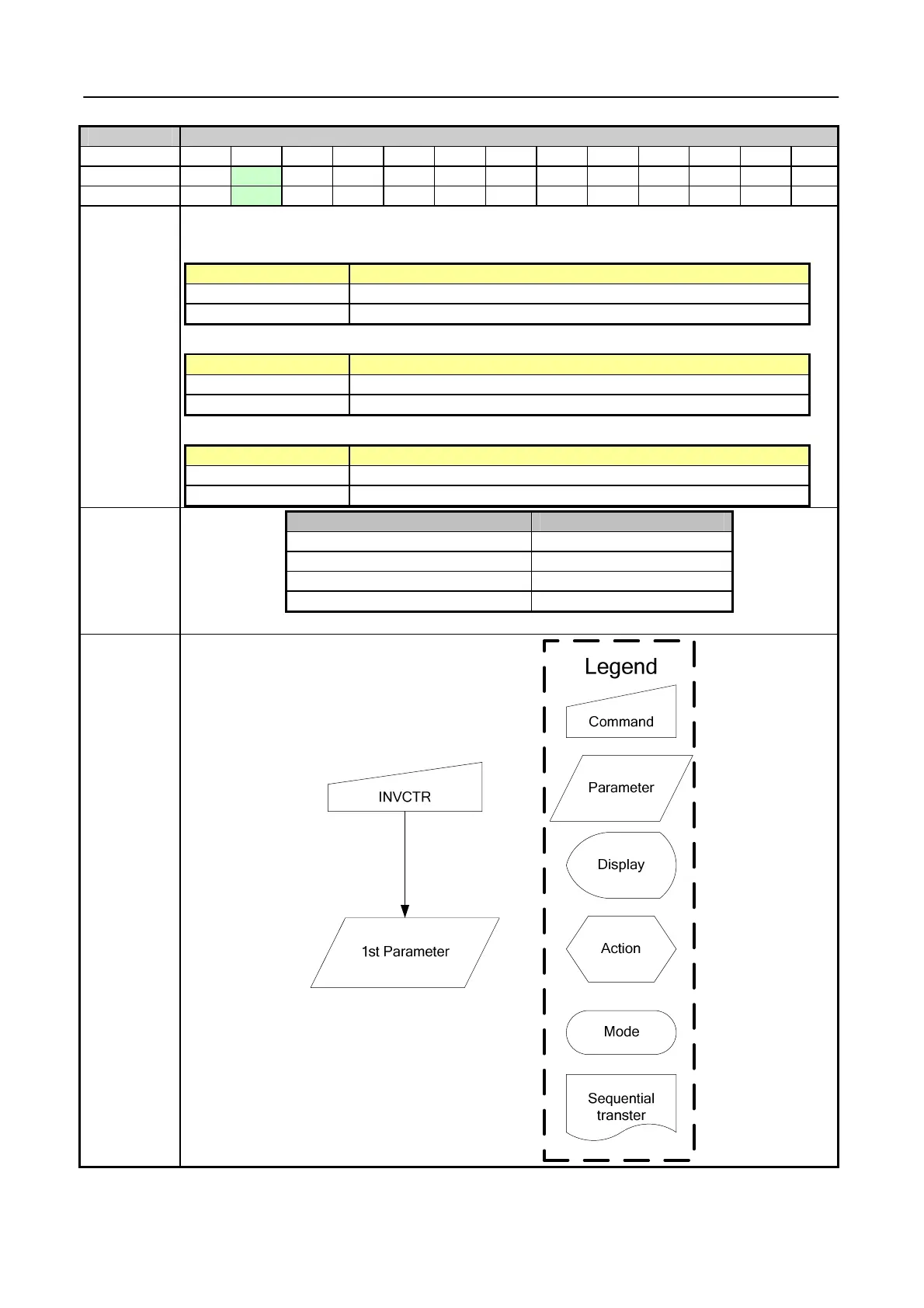

10.2.4 INVCTR (B4h): Display Inversion Control
B4H INVCTR (Display Inversion Control)
Inst / Para
D/CX WRX RDX D17-8 D7 D6 D5 D4 D3 D2 D1 D0 HEX
INVCTR
0 ↑ 1 - 1 0 1 1 0 1 0 0 (B4h)
Parameter
1 ↑ 1 - 0 0 0 0 0 NLA NLB NLC
Description
-Display Inversion mode control
-NLA: Inversion setting in full colors normal mode (Normal mode on)
NLA Inversion setting in full Colors normal mode
0 Dot Inversion
1 Line Inversion
-NLB: Inversion setting in Idle mode (Idle mode on)
NLB Inversion setting in Idle mode
0 Dot Inversion
1 Line Inversion
-NLC: Inversion setting in full colors partial mode (Partial mode on / Idle mode off)
NLC Inversion setting in full Colors partial mode
0 Dot Inversion
1 Line Inversion
Default
Status Default Value
B4h
Power On Sequence 03h
S/W Reset 03h
H/W Reset 03h
Flow Chart
