ST ST7735R - 10.2.15 NVFCTR2 (DEh): NVM Read Command

ST7735R
V0.2 146 2009-08-05
10.2.15 NVFCTR2 (DEh): NVM Read Command
DEH NVFCTR1 (NV Memory Function Controller 2)
Inst / Para
D/CX WRX RDX D17-8 D7 D6 D5 D4 D3 D2 D1 D0 HEX
NVFCTR2
0 ↑ 1 - 1 1 0 1 1 1 1 0 (DEh)
1
st
parameter
1 ↑ 1 1 1 1 1 0 1 0 1 F5
2
nd
parameter
1 ↑ 1 1 0 1 0 0 1 0 1 A5
Description
NVM Read Command
NOTE: “-“ Don’t care

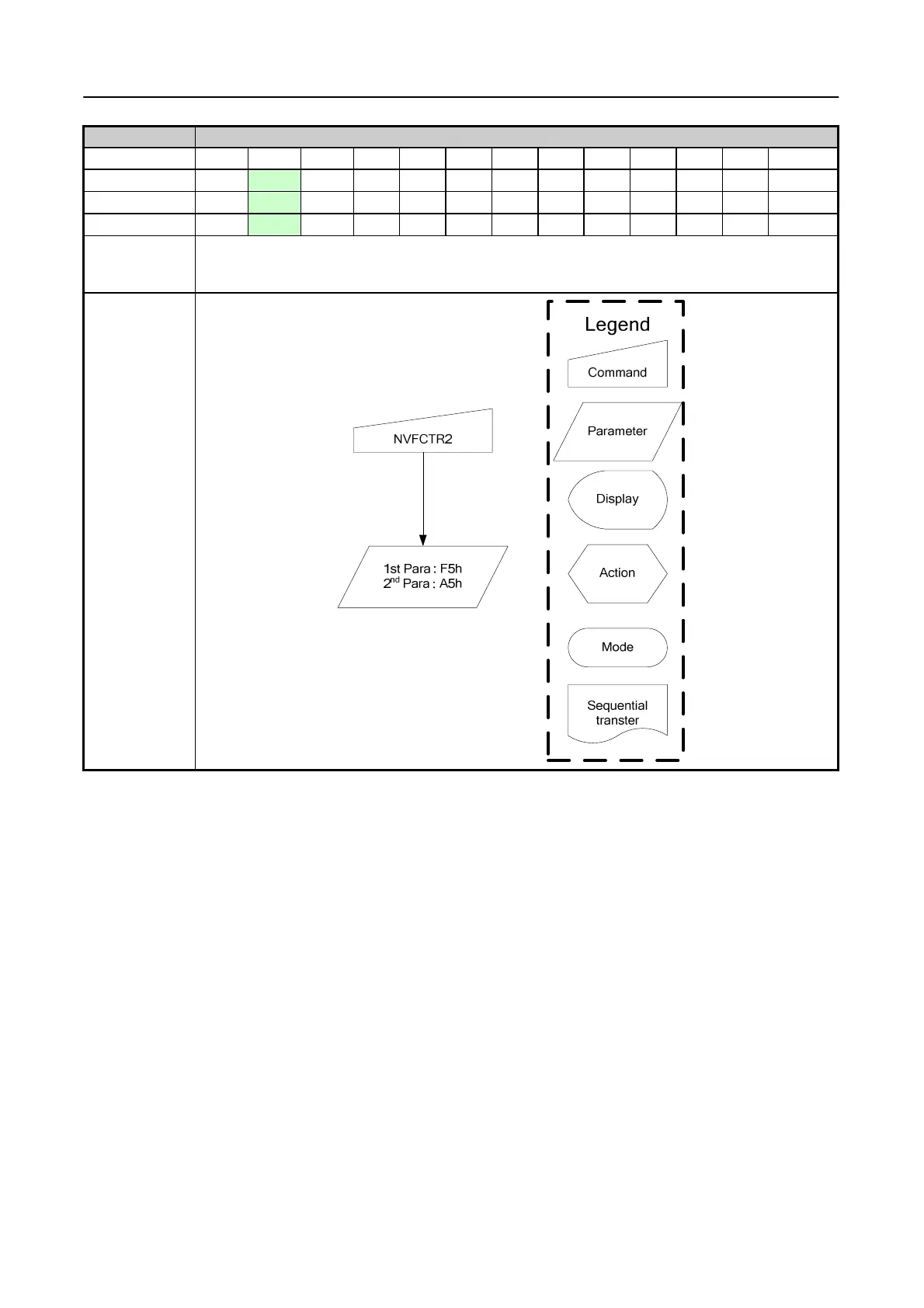

Flow Chart
