STA-RITE JBMB-56S - Page 13

13
2410 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
12
11
12
10
10A
9

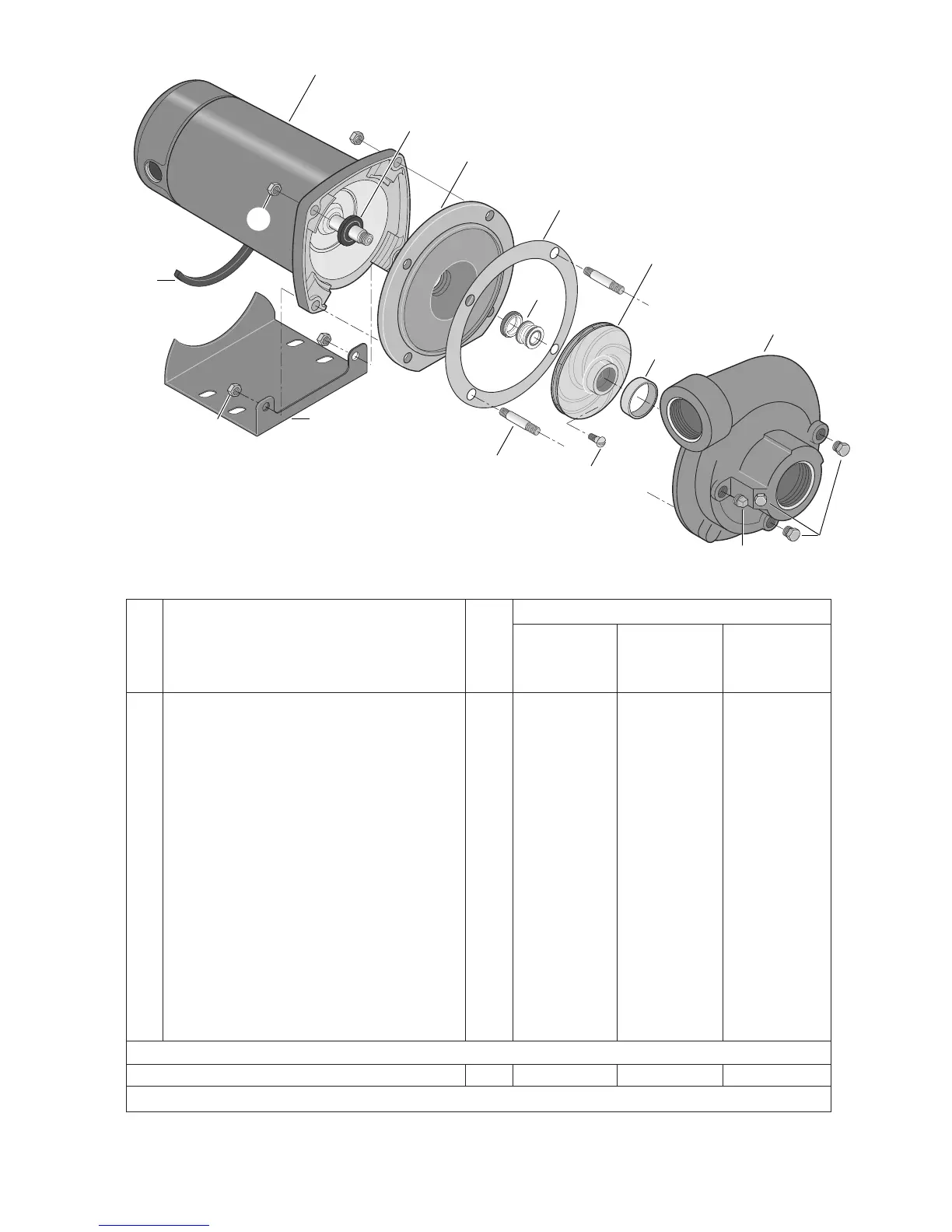

This drawing is for use with
Models using a stud configuration.
REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JBMF-40S JBMG-41S JBMMG-59S
Key Part No. JBMF3-40S JBMG3-41S JBMMG3-59S
No. Description Used 1-1/2 HP 2 HP 2-1/2 HP
1 Motor, 115/230V, 1 Phase 1 J218-601PKG J218-883APKG J218-628APKG
1 Motor, 230/460V, 3 Phase 1 AP100FL AP100GL AP100G5L
2 Water Slinger 1 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-52 C3-52 C3-52
4 Gasket, Seal Plate 1 C20-21 C20-21 C20-21
5 Shaft Seal 1 U109-6A U109-6A U109-6A
6 Impeller, Single Phase 1 C105-79B C105-73BA C105-80DA
6 Impeller, Three Phase 1 C105-79BA C105-73BA C105-80DA
6A Impeller Screw 1 C30-14SS C30-14SS C30-14SS
7 Volute Assembly with Wear Ring 1 C101-123 C101-123 C101-123B
7A Wear Ring 1 C23-19 C23-19 C23-19
8 Pipe Plug, 1/4” NPT Sq. Hd. 1 U78-57DT U78-57DT U78-57DT
9 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV U78-941ZPV
10 Base with Motor Pad 1 J104-9 J104-9 J104-9F
10A Motor Pad 1 C35-5 C35-5 C35-5
11 Stud, 3/8 - 16 x 1-13/16” 4 U30-35SS U30-35SS U30-35SS
12 Hex Nut, 3/8 - 16 4 U36-38ZP U36-38ZP U36-38ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700
NOTE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor
Model Plate.
