STA-RITE JBMB-56S - Page 12

12
2409 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
10
9
9A
8
8
This drawing is for use with
Models using a capscrew configuration.
11

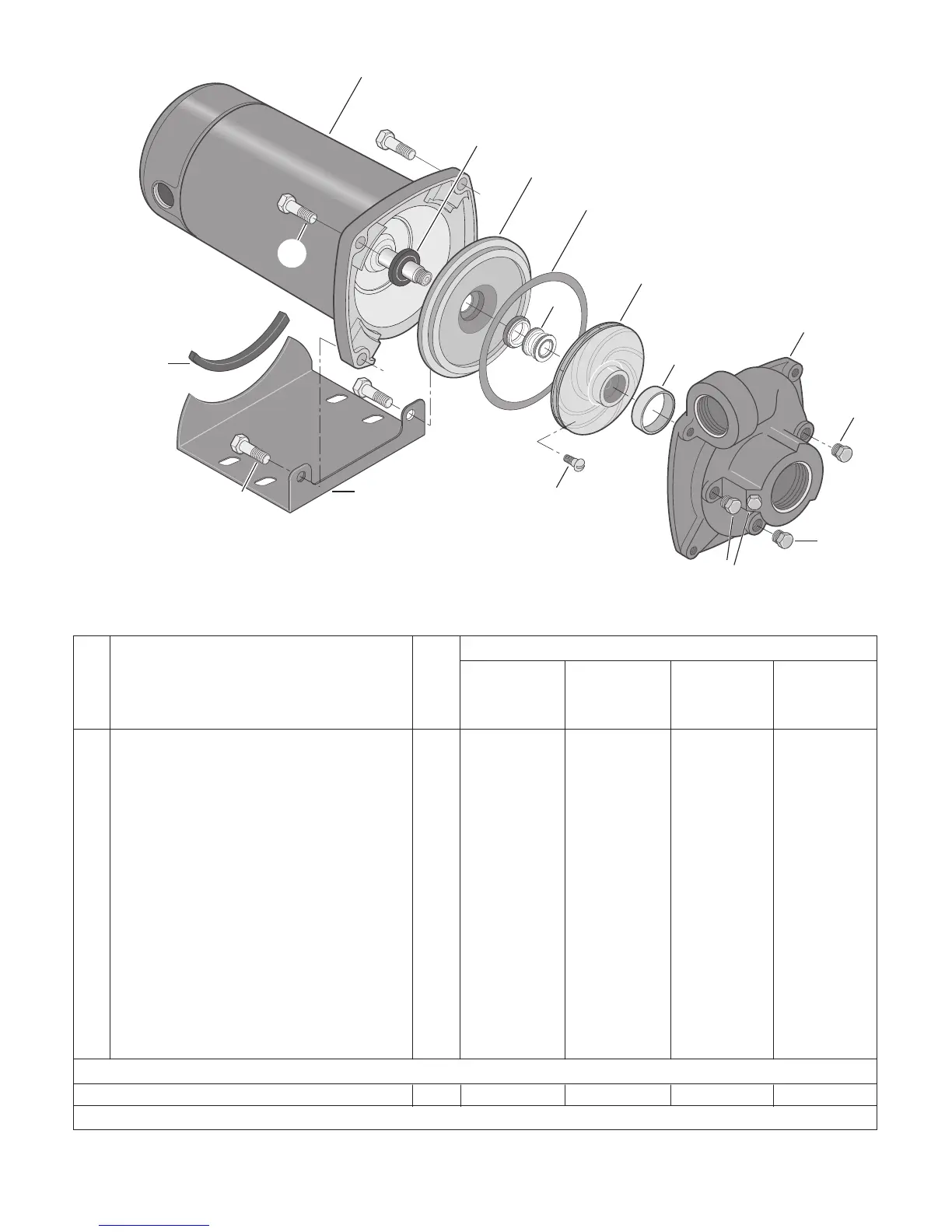

REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JBMB-56S JBMC-56S JBMD-57S JBME-58S
Key Part No. – JBMC3-56S JBMD3-57S JBME3-58S
No. Description Used 1/3 HP 1/2 HP 3/4 HP 1 HP
1 Motor, 115/230V, 1 Phase 1 J218-582APKG J218-582APKG J218-590PKG J218-596PKG
1 Motor, 230/460V, 3 Phase 1 – AP100CL AP100DL AP100EL
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-8 N3-8 N3-8 N3-8
4 Gasket, Seal Plate 1 N20-26 N20-26 N20-26 N20-26
5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller, Single Phase 1 J105-42MA J105-42MA J105-42LA J105-42NA
6 Impeller, Three Phase 1 – J105-42MA J105-42LA J105-42NA
6A Impeller Screw 1 – C30-6SS C30-6SS C30-6SS
7 Volute Assembly with Wear Ring 1 C101-122E C101-122E C101-122E C101-122
7A Wear Ring 1 N23-7 N23-7 N23-7 N23-7
8 Pipe Plug, 1/4” NPT Hex Hd. 4 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
9 Base with Motor Pad 1 J104-9 J104-9 J104-9 J104-9
9A Motor Pad 1 C35-5 C35-5 C35-5 C35-5
10 Hex Capscrew, 3/8” - 16 x 1-1/2” Lg. 2 U30-76ZP U30-76ZP U30-76ZP U30-76ZP
11 Hex Capscrew, 3/8” - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700 PP1700
NOTE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.
