STA-RITE Sunbrite Series - REPAIR PARTS; Exploded View of Sunbrite Lamps; Replacement Parts Identification

5
1
2
3
4
5
6
8
7
120 Volt Lamp
12 Volt Lamp
05501-2204 – 2210 05501-2211 – 2217 05502-1990 – 1996 05502-1997 – 2203
and and and and
Key 05501-2232 – 2238 05501-2239 – 2245 05502-2218 – 2224 05502-2225 – 2231
No. Part Description Qty. 12V, 100W 12V, 200W 120V, 300W 120V, 500W
1 Leader Screw 1 05101-0004 05101-0004 05101-0004 05101-0004
2 Stainless Steel Face Ring Assembly 1 05501-0002 05501-0002 05501-0002 05501-0002
3 Clear Lens 1 34620-0003 34620-0003 34620-0003 34620-0003
4 Lens Gasket 1 05501-0001 05501-0001 05501-0001 05501-0001
5 Clamp Assembly 1 05501-0003 05501-0003 05501-0003 05501-0003
6 Lamp Housing 1 † † † †
7 50W, 12V, R40 Lamp Use 2 for 100W 1 34600-0016 – – –
7 100W, 12V, R40 Lamp Use 2 for 200W 1 34600-0017 34600-0017 – –
8 300W, 120V, R40 Lamp 1 – – 34600-0018 –
8 500W, 120V, R40 Lamp 1 – – – 34600-0019
• Large Popover – Blue 1 34627-6005 34627-6005 34627-6005 34627-6005
• Large Popover – Red 1 34627-6007 34627-6007 34627-6007 34627-6007
• Replacement Screw Kit 1 05601-0101 05601-0101 05601-0101 05601-0101
• Rubber Retainer for Lead Screw 1 05101-0005 05101-0005 05101-0005 05101-0005
REPAIR PARTS LIST – SUNBRITE
™
LAMPS
† Not sold separately
• Not illustrated

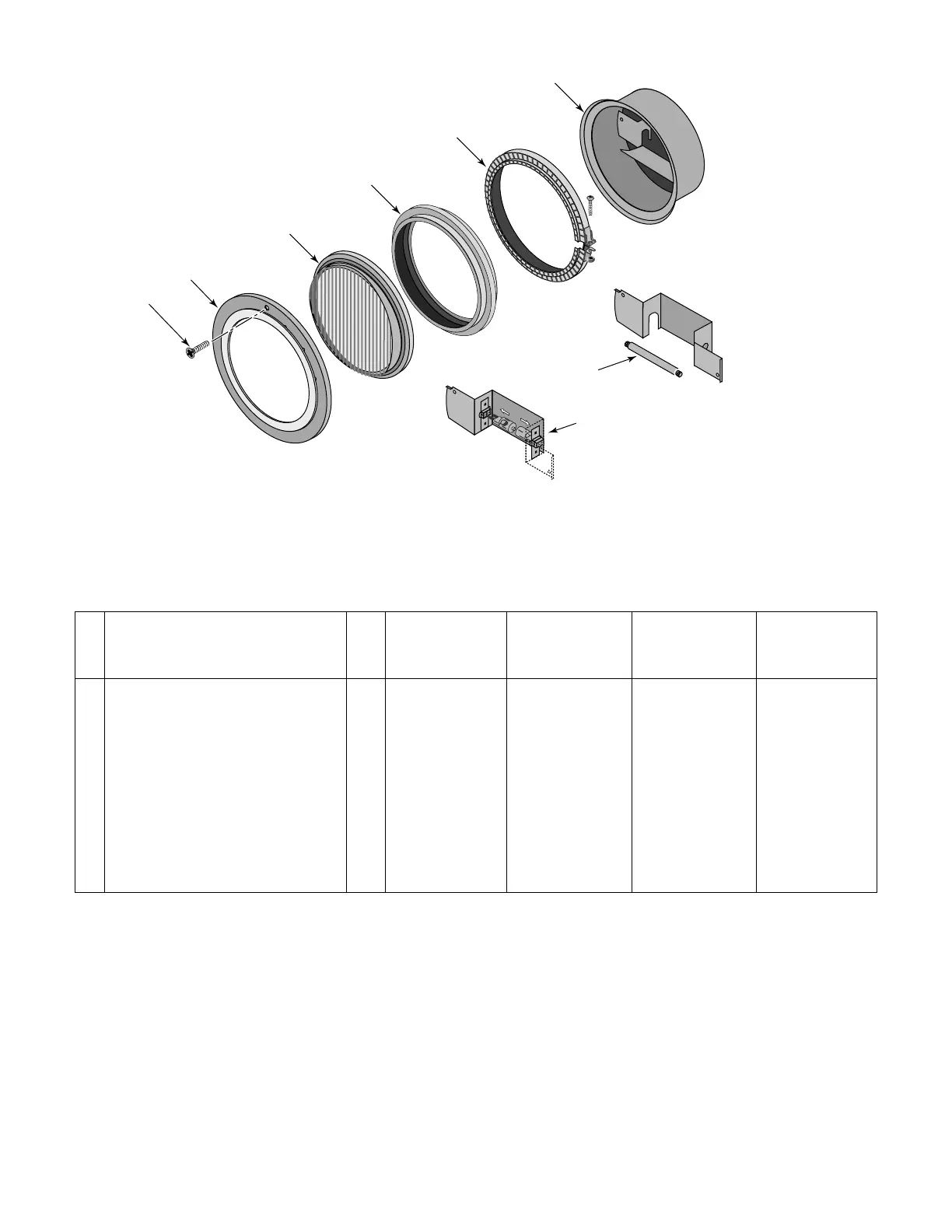

Figure 2 - Replacement Parts Sunbrite
™
Lamps Exploded View
