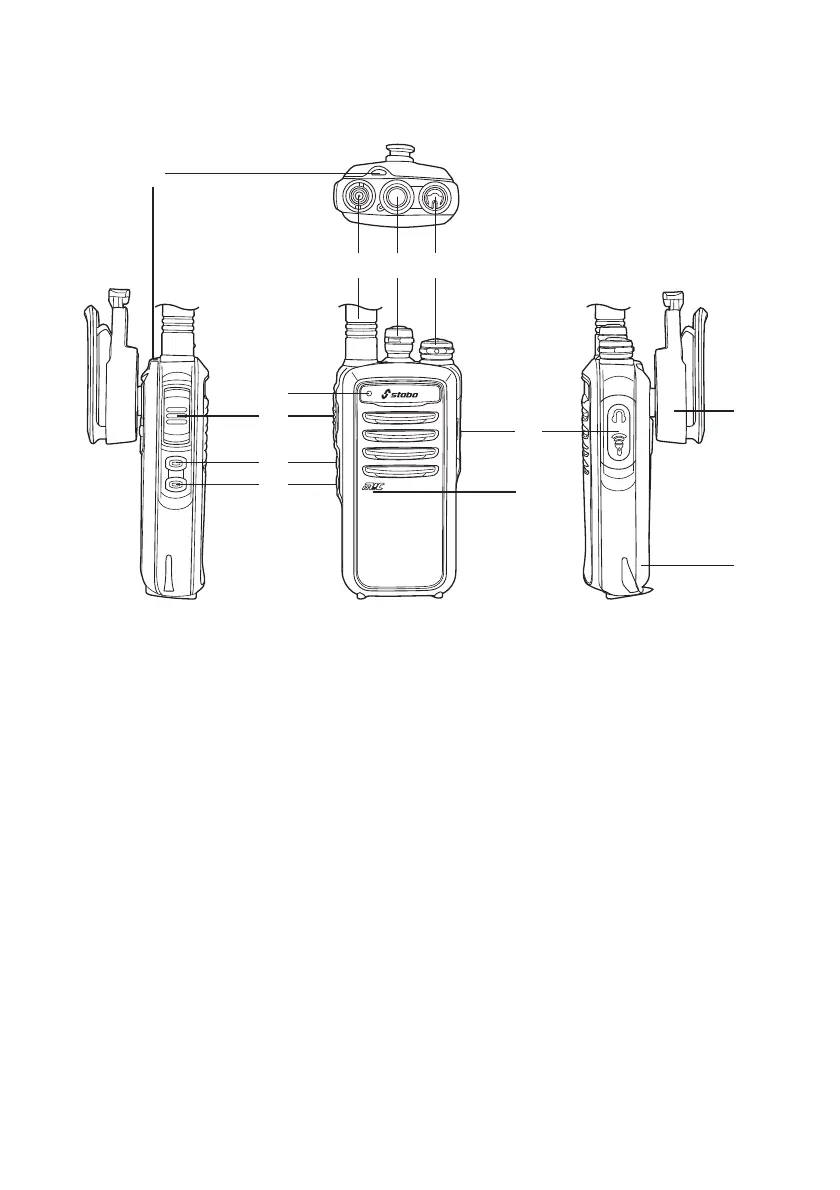

Control elements and connections
1 Antenna (The antenna is fixed to the housing, do not try to unscrew it!)
2 Status LED indications:
Red light: Transmitting indicator
Green light: Receiving indicator
Red flashing: Low capacity of battery pack
Green flashing: Scan function is activated.
3 Channel switch
4 On/off switch and volume control
5 Eyelet for carrying strap
6 PTT (Push to Talk) button
7 SK2: Lateral function key 2 (freely programmable)
8 SK1: Lateral function key 1 (freely programmable)
9 Microphone/Loudspeaker
10 Jack for ext. speaker/microphone
11 Belt clip
13 Li-ion battery pack
