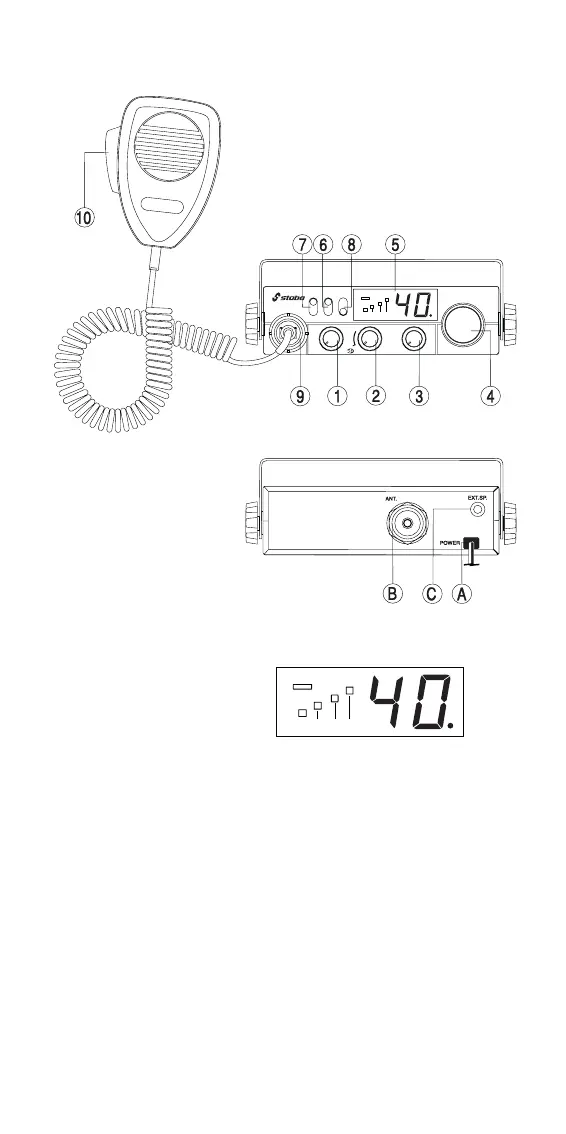

1 ON/OFF - Volume
2 SQUELCH/ASC (Automatic Squelch Control)
3 RF Gain
4 Channel Selector Rotary Knob
5 Display
6 Frequency Band Selection
7 Mode
8 CH 9
9 6-pin Microphone Plug
10 PTT "Push-to-talk" Button
A DC Power Supply (13.2 V)
B Antenna Jack (SO-239)
C External Speaker Jack (8W, Æ 3.5 mm)
Your stabo xm 3003 at a glance
