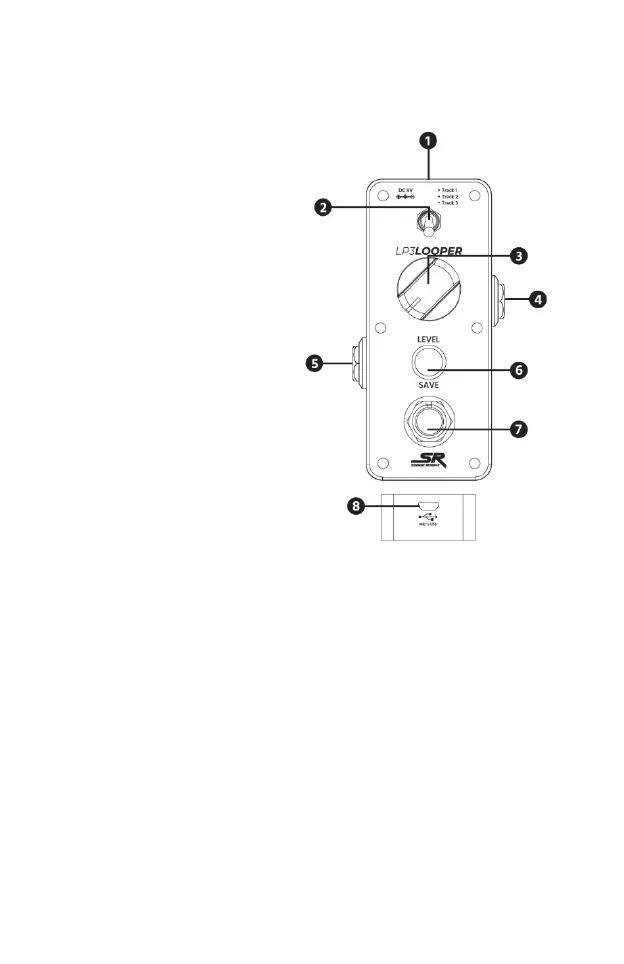

PRODUCT OVERVIEW

1. DC IN: DC barrel

connector for

connecting a standard 9

VDC guitar pedal AC

power adapter (not

included). The

connector has a 5.5mm

diameter positive barrel

and 2.1mm diameter

negative pin.

2. TRACK: Three position

switch to select each of

the three tracks.

3. LEVEL: Adjusts the

output volume level.

4. INPUT: 1/4" mono TS

jack for connecting a previous pedal in the effect chain or a

guitar.

5. OUTPUT: 1/4" mono TS jack for connecting to another pedal in

the effect chain or an amplifier.

6. SAVE LED: The LED illuminates to indicate the status. See the

FUNCTIONS

section for LED indication details.

7. SWITCH: Step on the switch to control the various functions.

See the

FUNCTIONS

section for details.

8. MicroUSB: Micro USB port for connecting a PC to upload or

download the tracks.
