Electrical Capacity Table
In hazardous (classified) areas, heat produced by current in the wire inside an enclosure is a concern. Therefore, the continuous current of each current carrying
conductor, the quantity and the size of the conductors inside a terminal enclosure need to be limited.
Type 8150/1-0600-0400-230...
Enclosure size in mm (inches), W x H x D: 600 x 400 x 230 (23.6 x 15.7 x 9.1)
16 14 12 10 8 6 4 3 2 1 1/0 2/0 3/0 4/0 250 300 400 500 600
5
10 84 166
15 63 124
20 29 61 137
25 34 71
30 44 99
35 27 62
40 43 115
45 30 72
50 20 52
60 29 78
65 22 58 145
70 46 81
80 29 48 98
85 23 39 69
90 32 55
100 21 37 69
110 26 46 153
115 21 38 81
125 28 51
150 24 46
175 23 47
200 25 56
225 29 56
250 30 75
300
350
380 46
400
Enclosure 8150/1-0600-0400-230…
Current
Amps
Wire size AWG

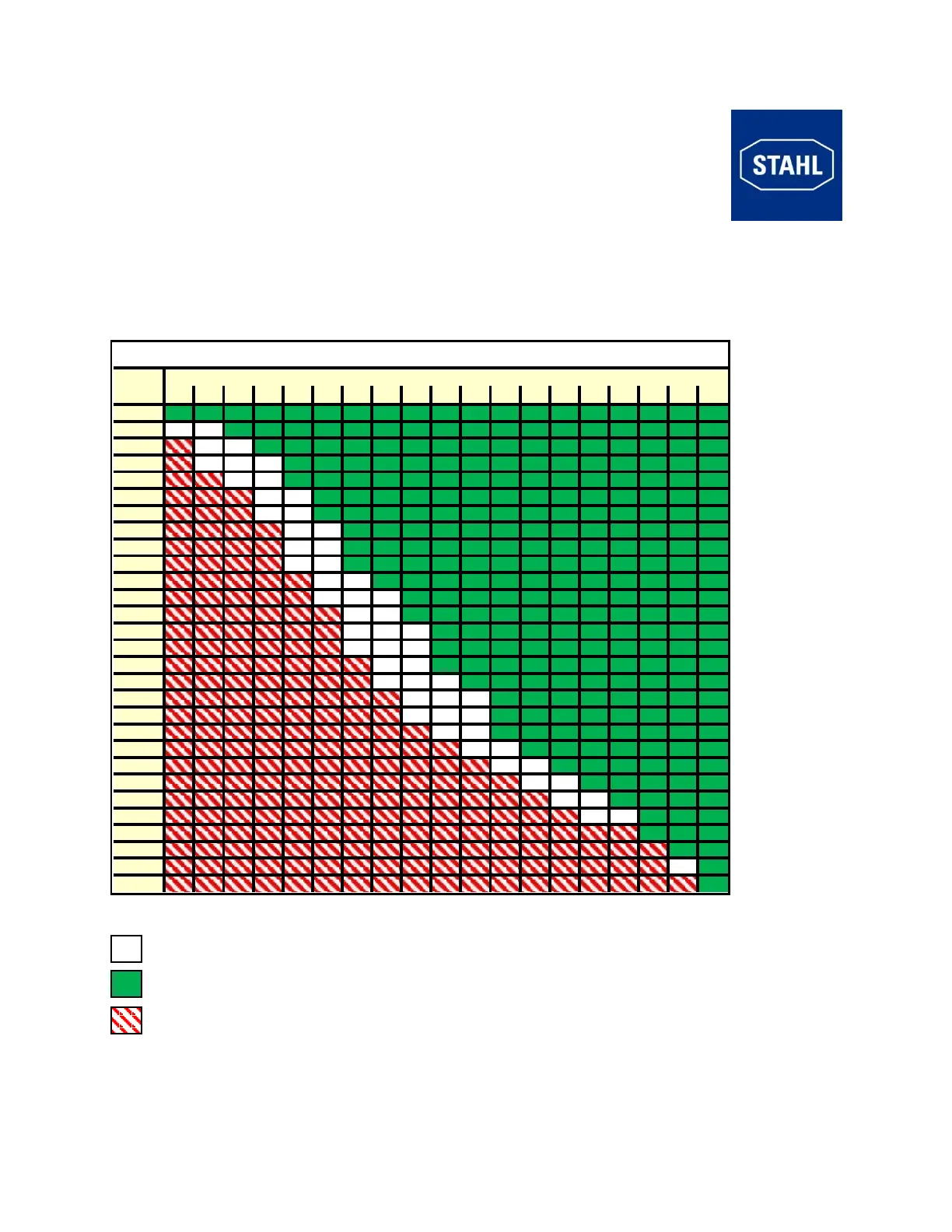

How to use the electrical capacity tables:
In the white area of the electrical capacity table, the permitted numbers of the current carrying conductors inside the enclosure are indicated
(in and out counts as two wires) depending on wire size and continuous current.
In the shaded area of the electrical capacity table, additional conductors/terminals are permitted up to space limit of the enclosure.
In the area with dark diagonal lines, no conductors are permitted.
Jumper links and ground wires can be neglected, in calculating the number of wires. These can be added whenever necessary.
Mixed circuits of different wire sizes and current values are possible by applying the table values proportionally.
Please refer to section 9.3.1 of 8150/1 Installation, Operating & Maintenance Sheet for more information.
