Stahl 8150/ - Electrical Capacity Table (Type 8150;1-0600-0600-230)

R. STAHL INC. 9001 Knight Road Houston, TX 77054 Tel.: (800) 782-4357 www.rstahl.com
Electrical Capacity Table
In hazardous (classified) areas, heat produced by current in the wire inside an enclosure is a concern. Therefore, the continuous current of each current carrying
conductor, the quantity and the size of the conductors inside a terminal enclosure need to be limited.
Type 8150/1-0600-0600-230...
Enclosure size in mm (inches), W x H x D: 600 x 600 x 230 (23.6 x 23.6 x 9.1)
16 14 12 10 8 6 4 3 2 1 1/0 2/0 3/0 4/0 250 300 400 500 600
5
10 97 191
15 73 143
20 33 71 158
25 39 81
30 51 114
35 32 72
40 50 132
45 35 82
50 23 60
60 34 90
65 25 67 167
70 52 93
80 33 55 113
85 26 45 80
90 37 63
100 24 43 80
110 30 53 176
115 25 44 93
125 32 59
150 28 53
175 27 54
200 29 64
225 34 65
250 35 86
300
350
380 53
400
Enclosure 8150/1-0600-0600-230…
Current
Amps
Wire size AWG

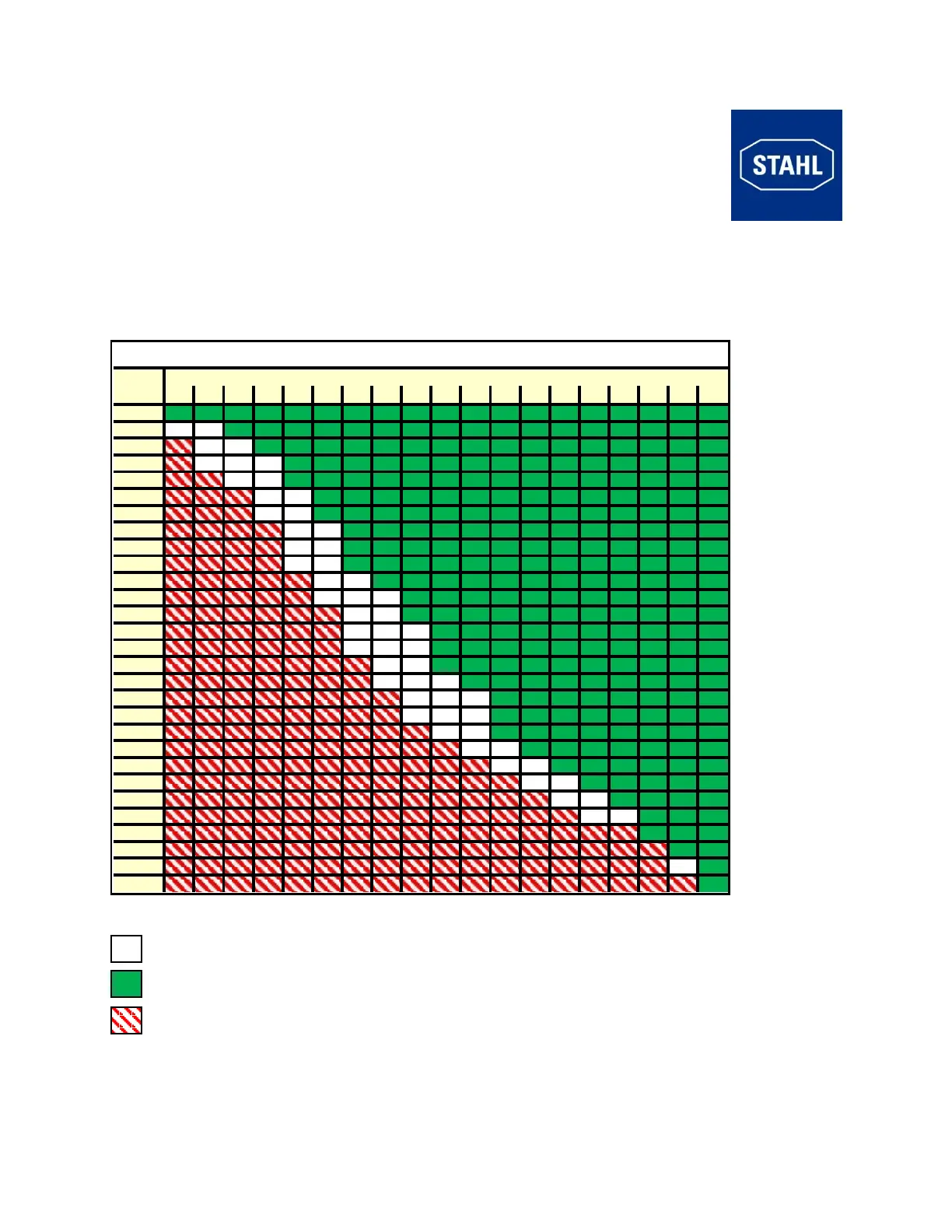

How to use the electrical capacity tables:
In the white area of the electrical capacity table, the permitted numbers of the current carrying conductors inside the enclosure are indicated
(in and out counts as two wires) depending on wire size and continuous current.
In the shaded area of the electrical capacity table, additional conductors/terminals are permitted up to space limit of the enclosure.
In the area with dark diagonal lines, no conductors are permitted.
Jumper links and ground wires can be neglected, in calculating the number of wires. These can be added whenever necessary.
Mixed circuits of different wire sizes and current values are possible by applying the table values proportionally.
Please refer to section 9.3.1 of 8150/1 Installation, Operating & Maintenance Sheet for more information.
