10
ASSEMBLY INSTRUCTIONS

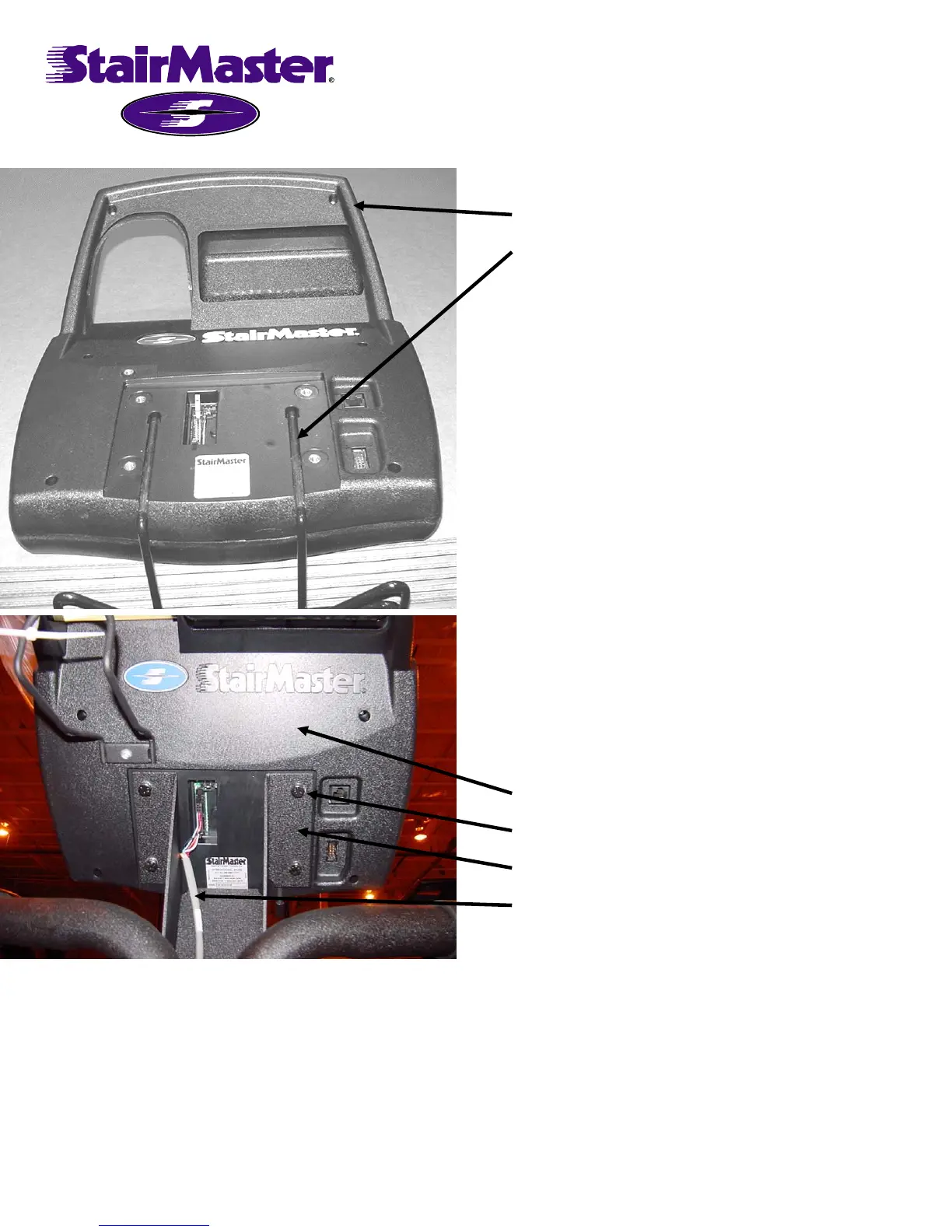

18. GET MAGAZINE RACK AND POSITION
IN GROOVES IN REAR OF CONSOLE.
CONSOLE
MAGAZINE RACK
19. GET FOUR CONSOLE SCREWS AND
LOCK WASHERS. HOLD MAGAZINE RACK
INTO GROOVES IN CONSOLE WHILE
POSITIONING THE CONSOLE OVER THE
CONSOLE BRACKET. USE THE CONSOLE
SCREWS AND LOCK WASHER TO SECURE
THE CONSOLE TO THE CONSOLE
BRACKET. ATTACH THE FEMALE
CONNECTOR ON THE CABLE TO THE
MALE CONNECTOR AT THE REAR OF THE
CONSOLE. MAKE SURE TO POSITION THE
CONNECTORS CORRECTLY WITH THE
ALIGNING TAB ON THE FEMALE
CONNECTOR WITH TH ALIGNING SLOT ON
THE MALE CONNECTOR.
CONSOLE
CONSOLE KNOB
CONSOLE BRACKET
CABLE
