9
ASSEMBLY INSTRUCTIONS

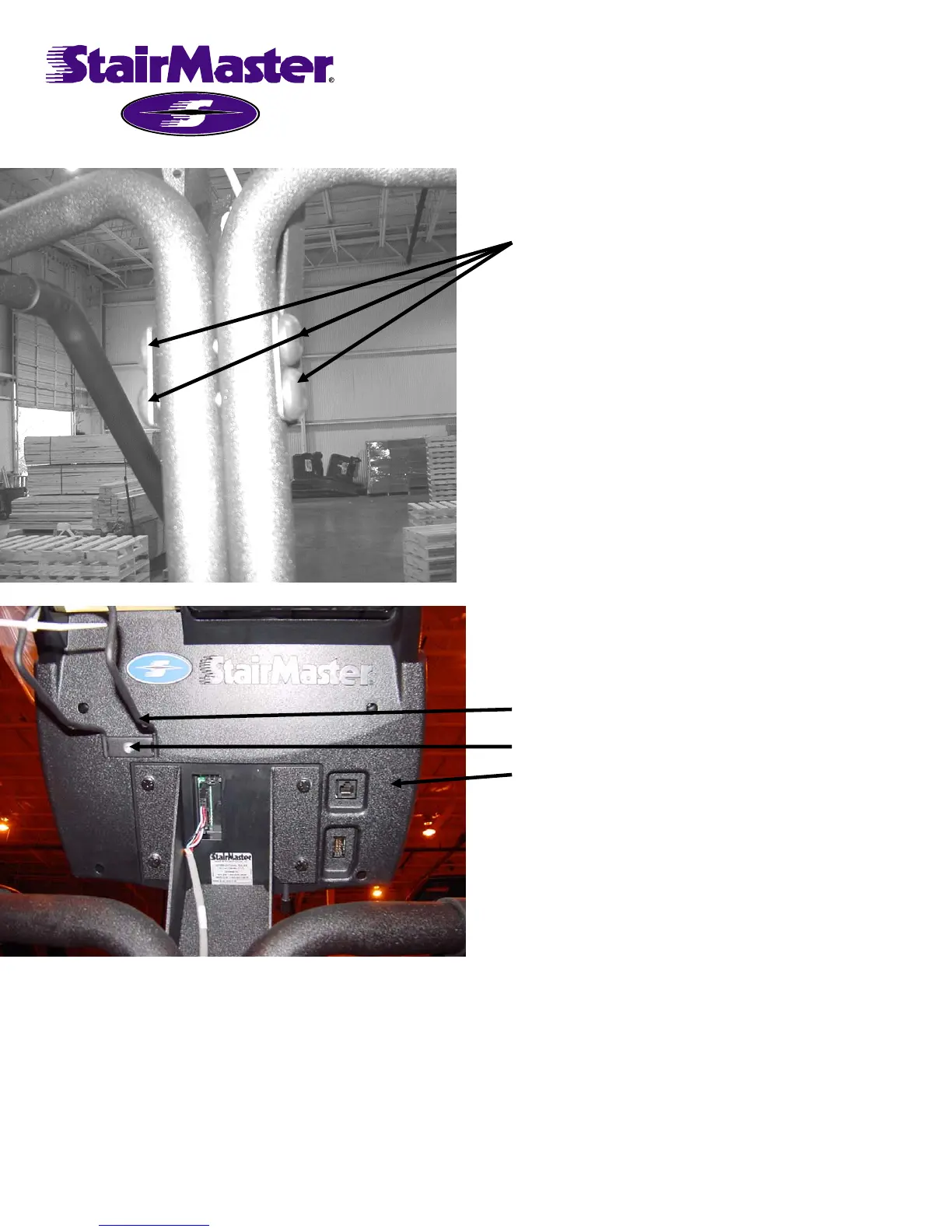

16. GET FOUR PLASTIC COVERS AND SNAP
ONTO THE FINISH WASHERS TO COVER
THE TWO BOLT HEADS AND NUTS.
PLASTIC COVER
17. USE A 5/32” ALLEN WRENCH TO
ATTACH THE DRINK HOLDER BRACKET
TO THE CONSOLE USING THE DRINK
HOLDER BRACKET SCREW.
DRINK HOLDER BRACKET
DRINK HOLDER BRACKET SCREW
CONSOLE
