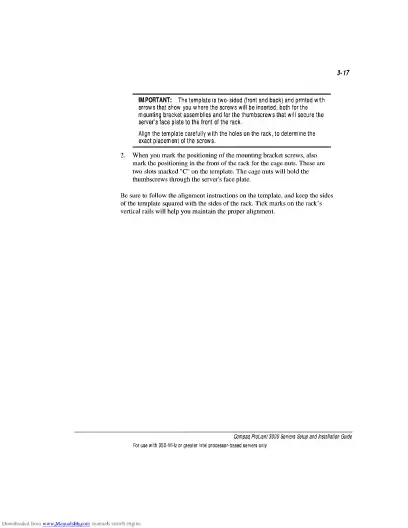

3-17

IMPORTANT:

The

template

is

two-sided

(front

and

back)

and

printed

with

arrows

that

show

you

where

the

screws

will

be

inserted,

both

for

the

mounting

bracket

assemblies

and

for

the

thumbscrews

that

will

secure

the

server's

face

plate

to

the

front

of

the

rack.

Align

the

template

carefully

with

the

holes

on

the

rack,

to

determine

the

exact

placement

of

the

screws.

2.

When

you

mark

the

positioning

of

the

mounting

bracket

screws,

also

mark

the

positioning

in

the

front

of

the

rack

for

the

cage

nuts.

These

are

two

slots

marked

"C"

on

the

template.

The

cage

nuts

will

hold

the

thumbscrews

through

the

server's

face

plate.

Be

sure

to

follow

the

alignment

instructions

on

the

template,

and

keep

the

sides

of

the

template

squared

with

the

sides

of

the

rack.

Tick

marks

on

the

rack’s

vertical

rails

will

help

you maintain

the

proper

alignment.

;
