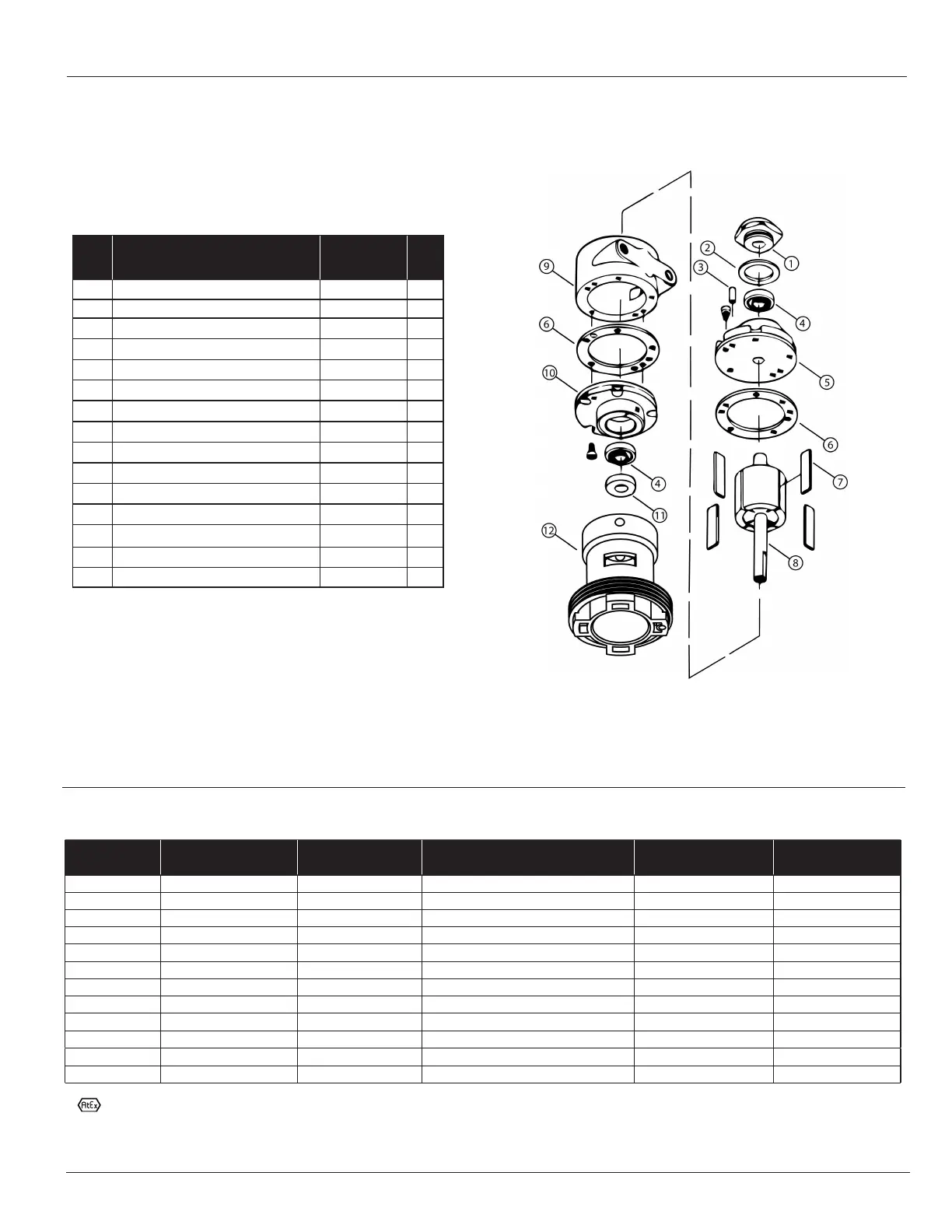

Standard Pump SP-PP Series - Page 7

Ref. #
Description
P/N
Qty
1
Dead End Cap
SAC228A
1
2*
Gasket
SAC229
1
3 Dowel Pin
SD324A
1
4*
Bearing
SAG549
2
5 Dead
End Plate
SAC617
1
6* Gasket
SAC527
2
7*
Vane
SAE893
4
8
Rotor Assembly
SAE896
1
9
Body
SAE899
1
10
Drive End Plate
SAC616
1
11*
Shaft Seal
SAC190A
1
12
Pump Tube Adapter
9007
-
Repair Kit* (Includes items 2,4,6,7 & 11
SK285
1
Muffler (not shown)
1
SP-A1 Spare Parts Lists
DRUM PUMP SPECIFICATIONS
* When operating in Hazardous Duty applications a pump must be used in conjunction with an explosion proof motor or air motor.
Model
Material of
Construction
Maximum Liquid
Temperature
Wetted Materials Maximum Flow Rate
Discharge
Pressure
SP-CPVC
CPVC 190º F (90º C) CPVC, Carbon, Hastelloy C, PVDF, PTFE 35 gpm (132 l/min) 16 psi (1,1 bar)
SP-CPVC-HH
CPVC 190º F (90º C) CPVC, Carbon, Hastelloy C, PVDF, PTFE 16 gpm (60 l/min) 32 psi (2,2 bar)
SP-PP
Polypropylene 130º F (55º C) PP, Carbon, Hastelloy C, PTFE 35 gpm (132 l/min) 16 psi (1,1 bar)
SP-PP-HH
Polypropylene 130º F (55º C) PP, Carbon, Hastelloy C, PTFE 16 gpm (60 l/min) 32 psi (2,2 bar)
SP-PHT
Polypropylene 175º F (80º C) PP, Carbon, Hastelloy C, PTFE 35 gpm (132 l/min) 16 psi (1,1 bar)
SP-PHT-HH
Polypropylene 175º F (80º C) PP, Carbon, Hastelloy C, PTFE 16 gpm (60 l/min) 32 psi (2,2 bar)
SP-PVDF
PVDF (Kynar
®
) 175º F (80º C) PVDF, Carbon, Hastelloy C, PTFE 35 gpm (132 l/min) 16 psi (1,1 bar)
SP-PVDF-HH
PVDF (Kynar
®
) 175º F (80º C) PVDF, Carbon, Hastelloy C, PTFE 16 gpm (60 l/min) 32 psi (2,2 bar)
SS316 175º F (80º C)
SS316L, Carbon, PTFE
35 gpm (132 l/min) 16 psi (1,1 bar)
SS316 175º F (80º C)
SS316L, Carbon, PTFE
16 gpm (60 l/min) 32 psi (2,2 bar)
175º F (80º C) 35 gpm (132 l/min) 16 psi (1,1 bar)
*SP-7700
175º F (80º C) 16 gpm (60 l/min) 32 psi (2,2 bar)
*SP-7600
Aluminum
Aluminum, Carbon, PTFE & SS316
Aluminum
Aluminum, Carbon, PTFE & SS316
*SP-6600
*SP-6700
7
Standard Pump Operating Instructions and Parts Manual (OIPM-IND-1019)
SAF350
-*
Muffler Foam (not shown)
-
Note: The only spare parts available for purchase are SK285 and 9007
-
