Standard S3 - Mounting Options; Slip Fitter Mount; Yoke Mount

SLIP FITTER MOUNT (100-277 VAC & 277-480 VAC)
1. Adjust the xture orientation by turning the bolt (FIG. 1).
2. Using a post with a diameter 2.36", mount and tighten with screws (FIG. 2).
3. Connect wires into wiring terminal; white wire to "neutral" terminal, black wire to "live" terminal, green wire to
"ground" terminal; and x them with wire nuts. Ground must be properly attached to avoid the risk of electrical
shock. Make sure connections are secure and that no loose wire strands are sticking out of connectors. Secure
wiring compartment cover to the xture. Use cULus listed weather-proof outlet box cove
Installation Instructions
LED Outdoor Large Flood Light S3
400 W
YOKE MOUNT (100-277 VAC & 277-480 VAC)
1. Use expansion bolts to secure the xture on mounting surface.
2. Keep enough length wires to ensure adjusting angle unhindered.
3. Connect wires into wiring terminal; white wire to "neutral" terminal, black wire to "live" terminal, green wire to
"ground" terminal; and x them with wire nuts. Ground must be properly attached to avoid the risk of electrical
shock. Make sure connections are secure and that no loose wire strands are sticking out of connectors. Secure
wiring compartment cover to the xture. Use cULus listed weather-proof outlet box cove

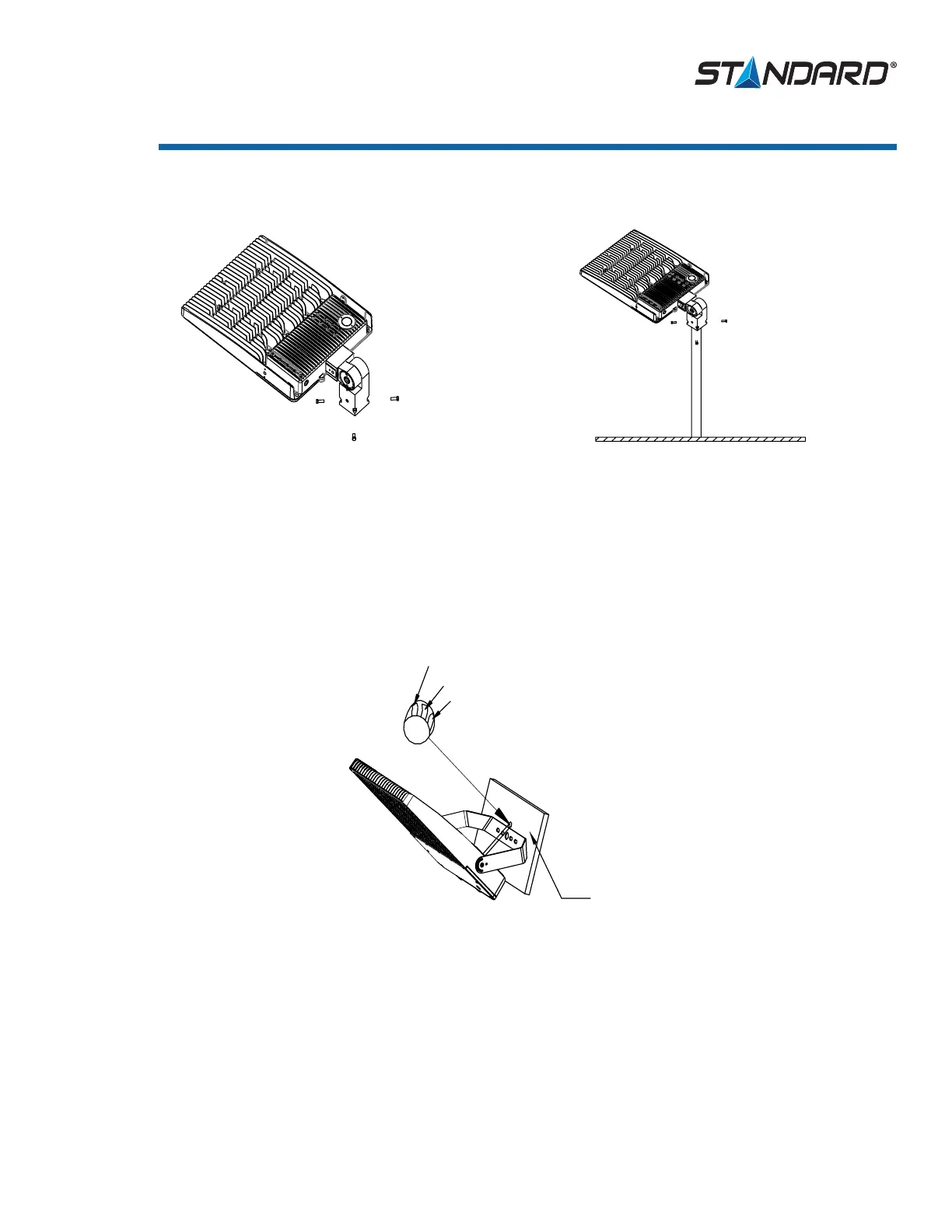

FIG. 1
FIG. 1
FIG. 2
Mur
L (Noir)
N (Blanc)
G (Vert)
