Stanley TA54 - Specifications; Accessories; Service Tools

14 ► TA54 User Manual
Oil Flow Range .............................................................................................................................. 3-9 gpm/11-34 lpm
Pressure Range................................................................................................................. 1000-2000 psi/70-140 Bar
Length.........................................................................................................................................................See Below
Weight ...................................................................................................................................................25 lbs/11.3 kg
Porting ...................................................................................................................................1/2 in. SAE O-Ring Port
Couplers .........................................................................................HTMA/EHTMA Flush Face Type Male & Female
System Type ........................................................................................................................ HTMA Type I and Type II
SPECIFICATIONS
ACCESSORIES
Description ............................................................................................................. Part No.
Kidney Shoe ............................................................................................................ 00833
Round Shoe, 6-inch Diameter ................................................................................. 00840
Rectangular Shoe .................................................................................................... 01070
8 Ft Hose (2 required) ............................................................................................. 35784
In-Line Valve Assembly OC/CC ............................................................................... 72264
SERVICE TOOLS
Tamper Sleeve Tool ................................................................................................. 01120
Sleeve Installation Wrench ...................................................................................... 01949
O-ring Tool Kit .......................................................................................................... 04337
TOOL
MODEL
TOOL LENGTH
(WITHOUT
COUPLERS OR
HOSE WHIPS)
ON/OFF
VALVE IN
HANDLE
ON/OFF VALVE
IN-LINE
(CONNECTED
TO END OF
HOSE WHIPS)
NO
ON/OFF
VALVE
SHOE
TYPE
(FOOT)
LENGTH
OF
HANDLE
SYSTEM
TYPE
TA54103 71 Inches YES NO -- KIDNEY 3 FT OC
TA54113 71 Inches YES NO -- ROUND 3 FT OC
TA54603 69 Inches NO NO YES KIDNEY 3 FT OC
TA54603A 69 Inches NO YES -- KIDNEY 3 FT OC/CC

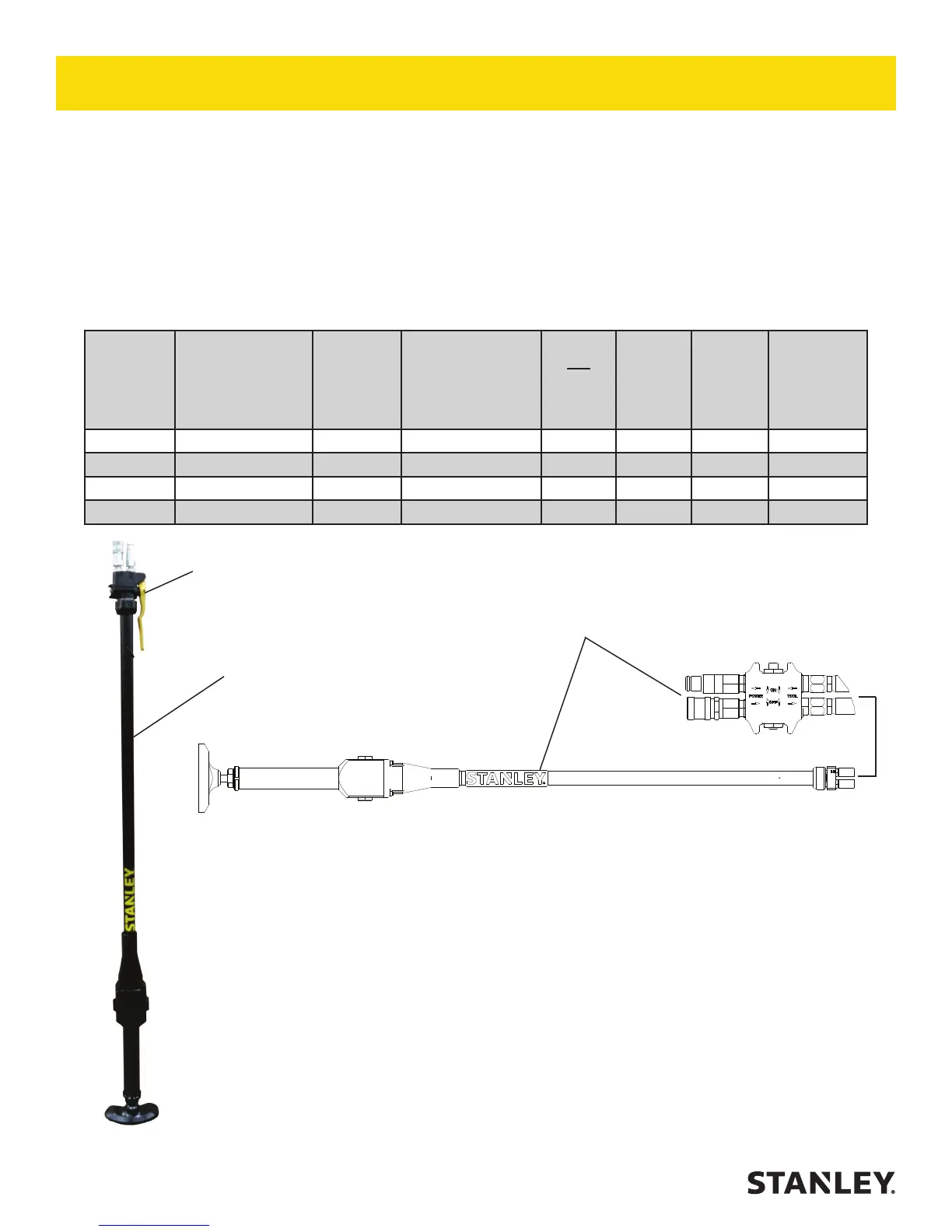

TA54103 Pictured with
On/O󰀨 Valve in Handle
Handle length on all
models is 3 ft.
Model TA54603A with
On/O󰀨 Valve attached to
end of hose whips.
