The installation instructions for WF-1690BL

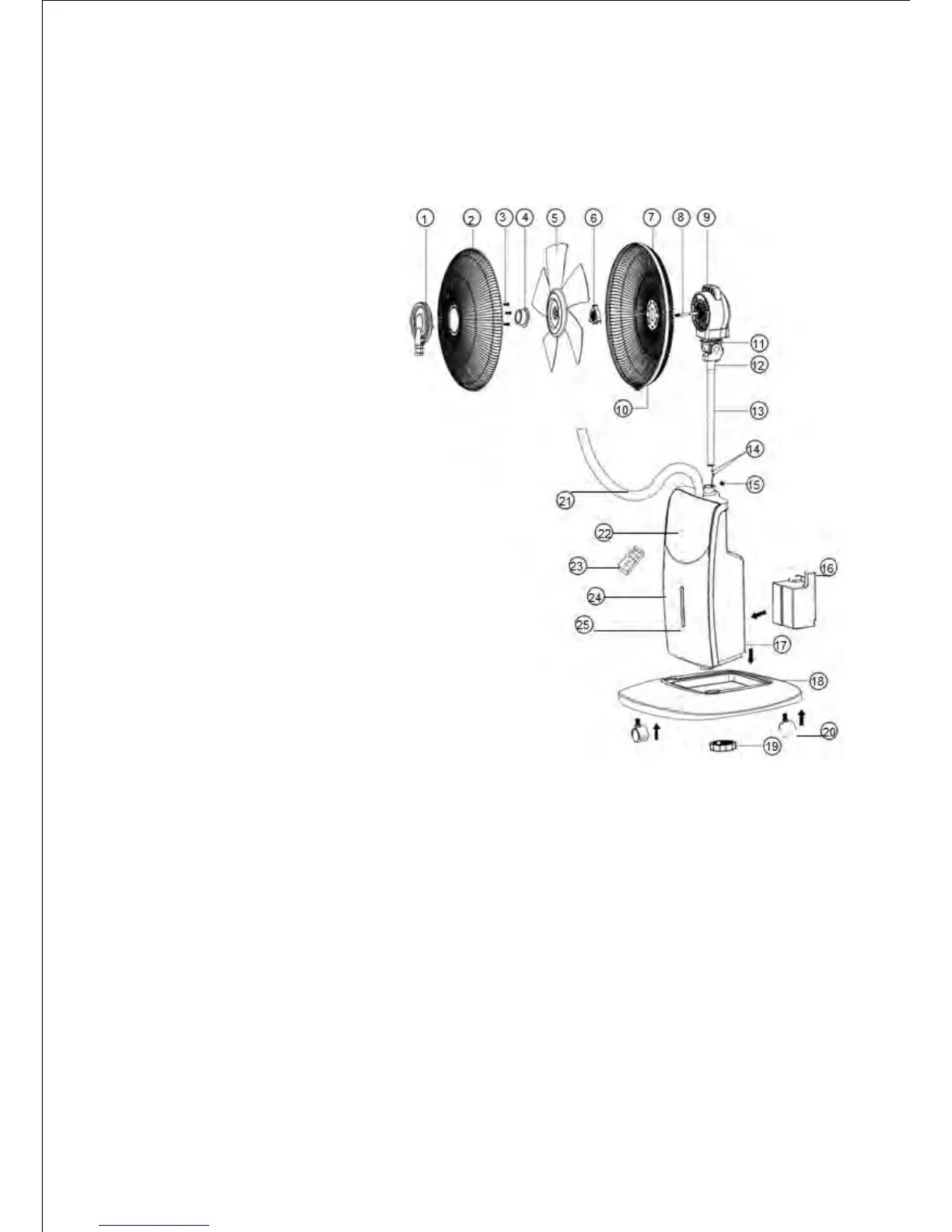

Parts:
1. Misting Board
2. Front Grill
3. Misting Board Screws
4. Blades Lock Net
5. Blades
6. Grill Lock Net
7. Rear Grill
8. Motor
9. Motor Shell
10. Grill Ring
11. Motor Holder
12. Connection Holder
13. SS Holder
14. Power Connection line electrical
15. Fixed Screw
16. Water Tank
17. Main Body
18. Base
19. Castor
20. Base Lock Nut
21. Misting Tube
22. Control Panel
23. Remote Controller
24. Decorate Panel
25. Water Indicator
