2M-Z16009 Star-Max Electric Griddle
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
MATERIAL
DR.
DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1°
REVISIONS
~
~
536TGD 220/230V SK2204

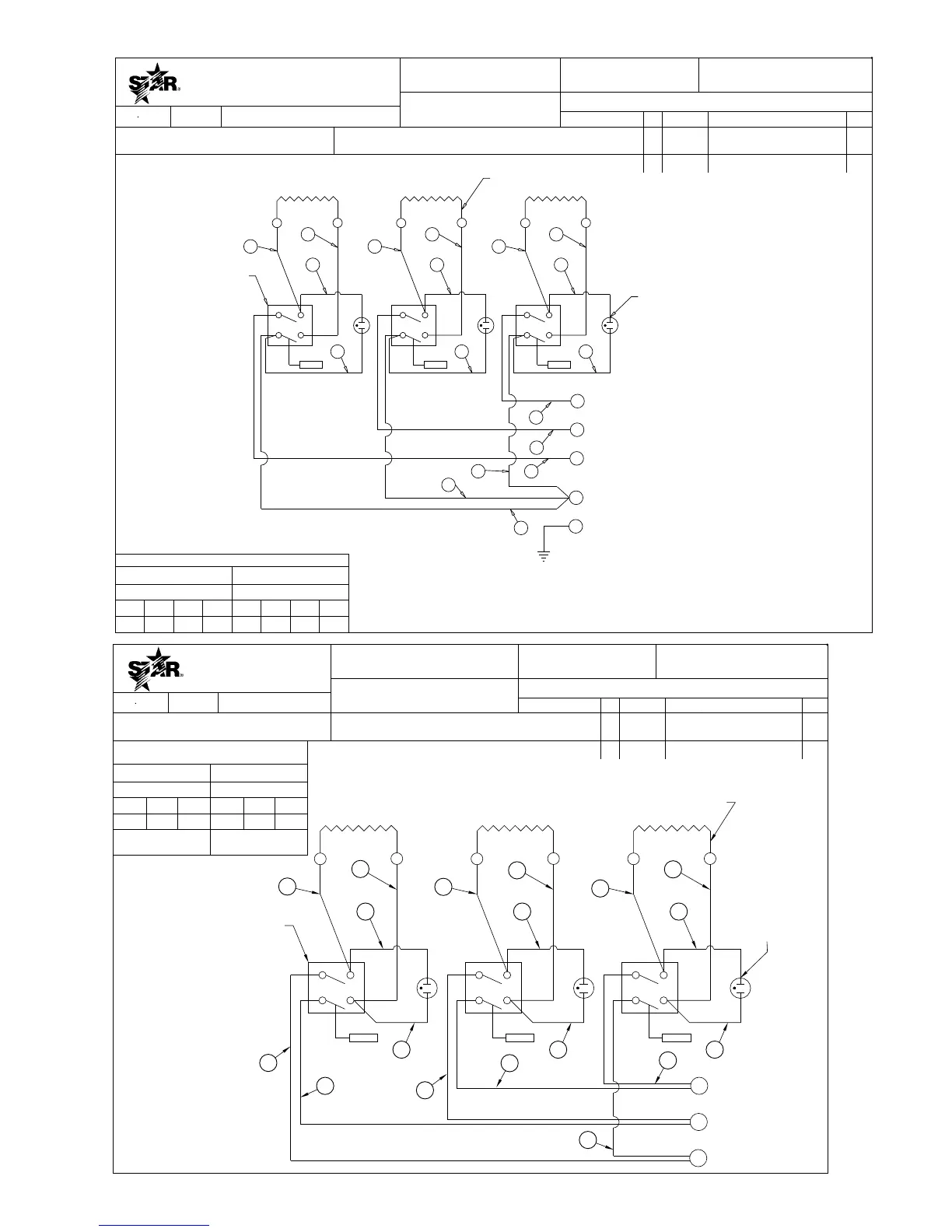

WIRING DIAGRAM 3 PHASE 5 WIRE
TH
6-9-06
CK.
LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
NOMINAL AMPS PER LINE
220/380V Y
10083 WATTS
X
15.3
Y Z
230/400V Y
11020 WATTS
X Y Z
1615.315.3 16 16
N N
15.3 16
-
PILOT LIGHT
THERMOSTAT
1
3
2
2
1
HEATING ELEMENT
6
2
1
2
1
8
7
2
2
1
1
4
5
X
Y
Z
N
G
LINE 1
LINE 2
LINE 3
NEUTRAL
CHASSIS GROUND
FOR SUPPLY CONNECTIONS USE
COPPER WIRE ONLY, SUITABLE
FOR AT LEAST 90°C (194°F). #10
AWG OR LARGER.
DO NOT CONNECT TO AN ELECTRICAL SYSTEM
OPERATING AT MORE THAN 240 VOLTS TO GROUND
MATERIAL
DR.
DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1°
REVISIONS
536TGF-PE SK2624
WIRING DIAGRAM 536TGF-PE
MH
10-23-12
CK.
LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
NOMINAL AMPS PER LINE
208V-3 PHASE
9,012 WATTS
X
25.0
AWG
#12
Y Z
240V-3PHASE
12,000 WATTS
X Y Z
#10
AWG
28.925.025.0 28.9 28.9
-
PILOT LIGHT
THERMOSTAT
1
3
2
1
HEATING ELEMENT
6
1
2
1
8
7
2
2
1
1
4
5
X
Y
Z
2
2
NOTE:
1) FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT
LEAST 90°C (194°F). USE GAUGE SHOWN OR LARGER.
2) ALL INTERNAL WIRING IS #14 GA.
