IV. Dimensions

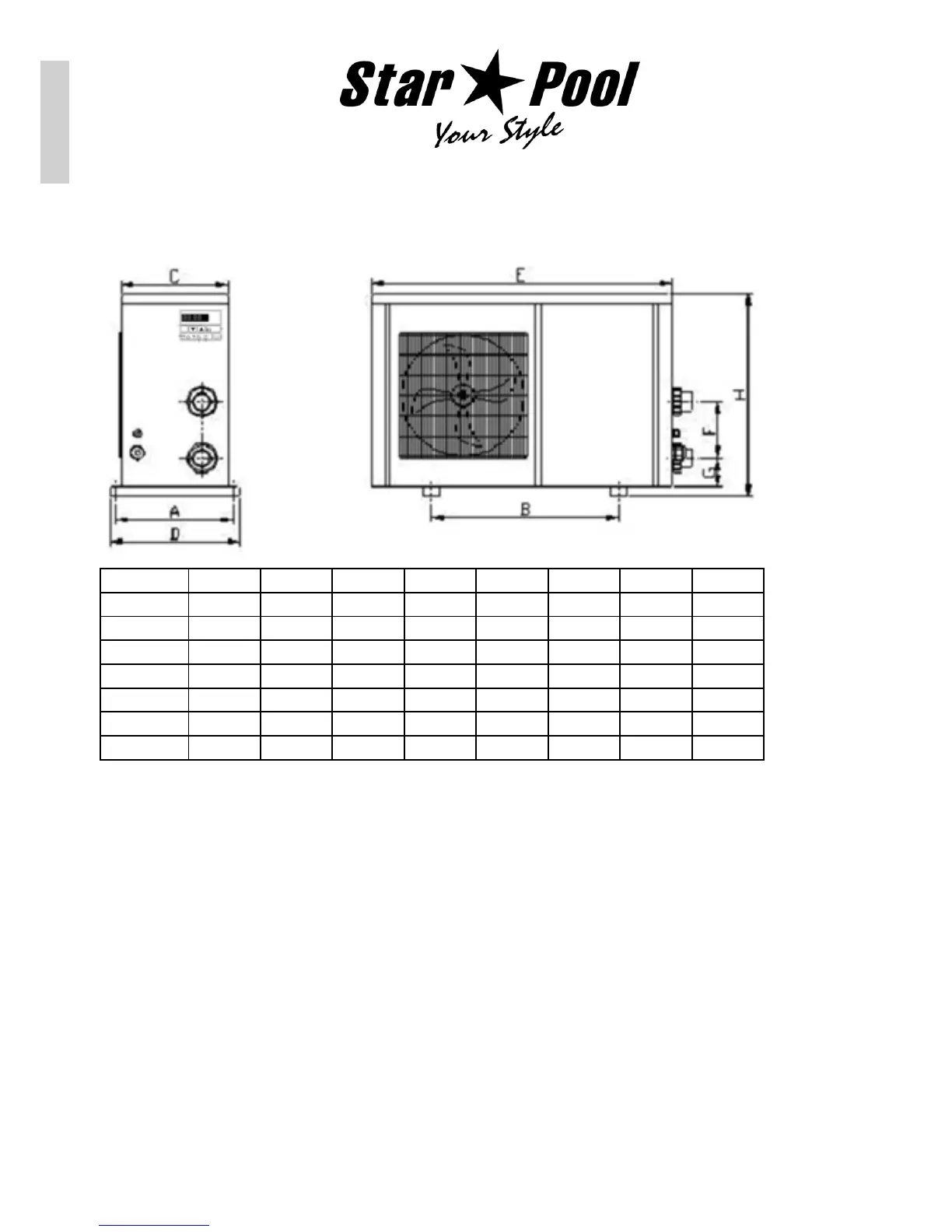

Dimensions shown above are in mm.
Note:
The picture shown above is a diagram of technical conditions for pool heating. It serves only as a reference
for the technician during the installation and adjustment of the equipment. On the grounds of continuous
improvement, product parameters may change without previous notice.
Model A B C D E F G H
THP05 330 580 285 350 930 200 83 550
THP06 330 580 285 350 930 200 83 550
THP09 330 580 285 350 930 200 83 550
THP12 330 650 300 350 1000 280 83 630
THP16 330 650 300 350 1000 280 83 630
THP23 438 770 425 470 1120 350 83 950
THP30S 438 810 425 470 1180 600 83 950
