Connector pin out details

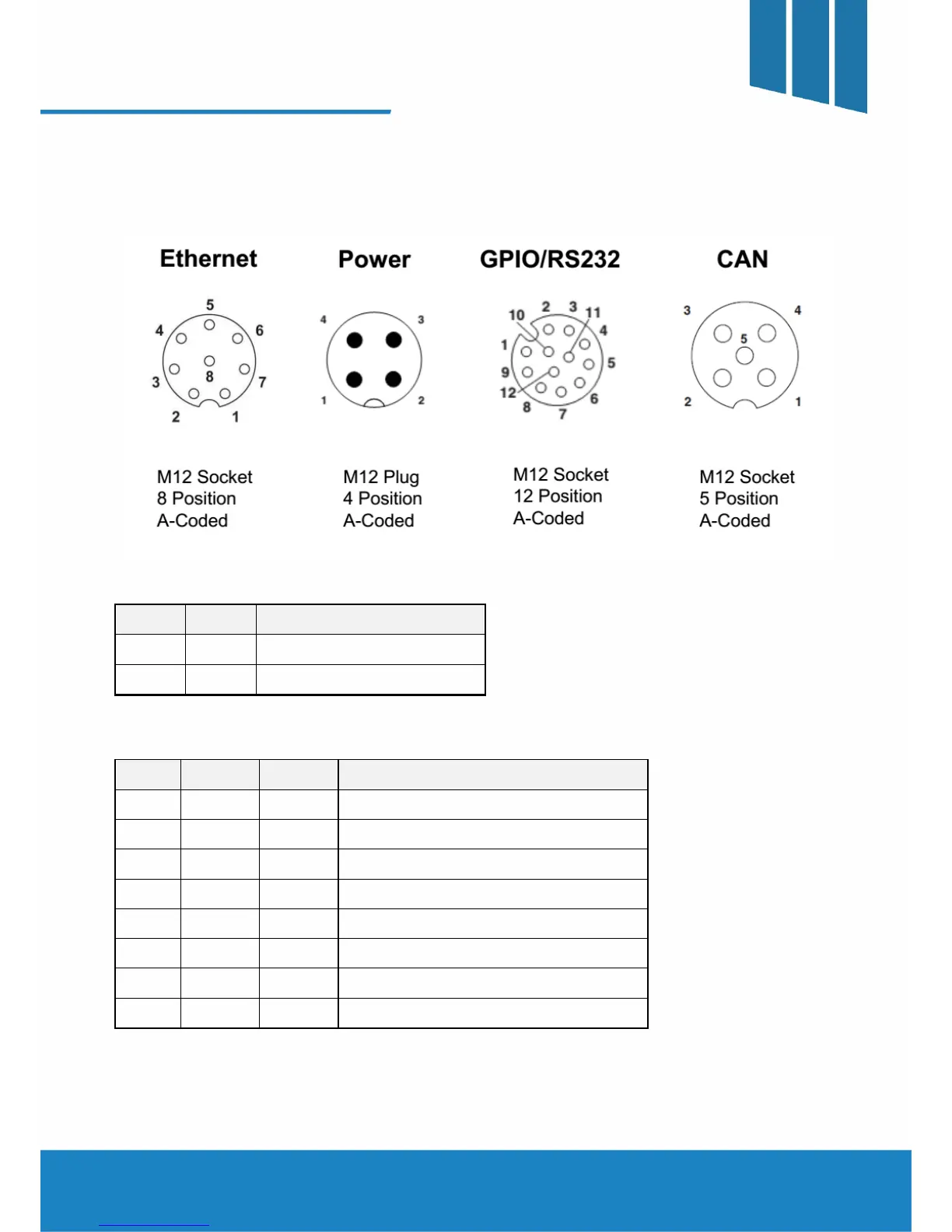

The following diagram provides specific details regarding each connector type:
DC Power:
Pin Signal Description
1 +V Voltage (12-48v)
2 GND Ground
LAN(PoE+):
Pin Mode A Mode B Description
1 Rx+, DC+ Rx+ LAN Rx+, DC+ for Mode A POE Spec
2 Rx-, DC+ Rx- LAN Rx-, DC+ for Mode A POE Spec
3 Tx+, DC- Tx+ LAN Tx+, DC- for Mode A POE Spec
4 Unused DC+ DC+ for Mode B POE Spec
5 Unused DC+ DC+ for Mode B POE Spec
6 Tx-, DC- Tx- LAN Tx-, DC- for Mode A POE Spec
7 Unused DC- DC- for Mode B POE Spec
8 Unused DC- DC- for Mode B POE Spec
