Star 56 - Wiring Diagrams

10

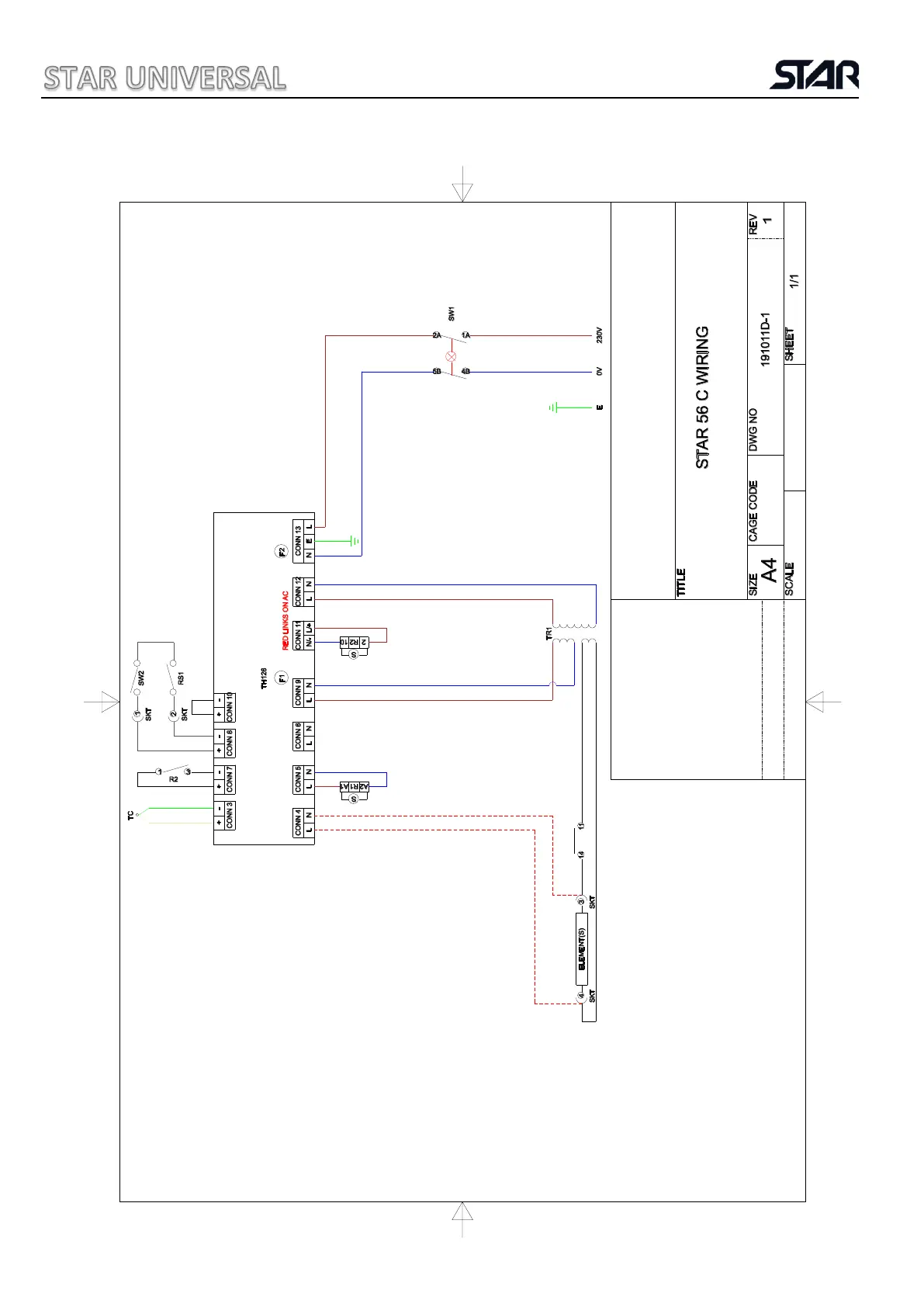

SW1 ON/OFF SWITCH SW2 TRIGGER R1 POWER RELAY R2 11 PIN RELAY RS1 JAWS CLOSED REED SWITCH TR1 MAIN TRANSFORMER TH126 CIRCUIT BOARD F1 SOLENOID FUSE F2 MAIN FUSE TC THERMOCOUPLE
N/A
STAR UNIVERSAL (GOSPORT) LTD
R1
7 WIRING DIAGRAM
