pressure which is in accordance with the requirements
of the Authority Having Jurisdiction — usually 5 psi
(0.34 bar) higher than the required system air pressure.
7. Installation of an Air Maintenance Device, which pro-
vides a restricted air inlet for the automatic air supply, is
recommended.
8. An Inspector’s Test Connection as required by NFPA 13
must be provided on the system piping at the most re-
mote location from the Model A-1 Dry Pipe Valve.
9. Conduit and electrical connections are to be made in ac-
cordance with the requirements of the authority having
jurisdiction and/or the National Electric Code.
10. Before hydrostatic tests are performed in accordance
with NFPA 13 system acceptance test requirements, the
Clapper Assembly is to be manually latched open (Ref.
Figure 2-C); the Automatic Drain Valve (5 -Fig. 4) is to
be temporarily replaced with a 1/2 inch NPT pipe plug;
and the Handhole Cover Bolts are to be tightened using
a cross-draw sequence. Also, if a Model S430 Accelera-
tor is being utilized, the Accelerator control Valve must
be closed.
STAR SPRINKLER INC.
2-2.1.41
Page 5

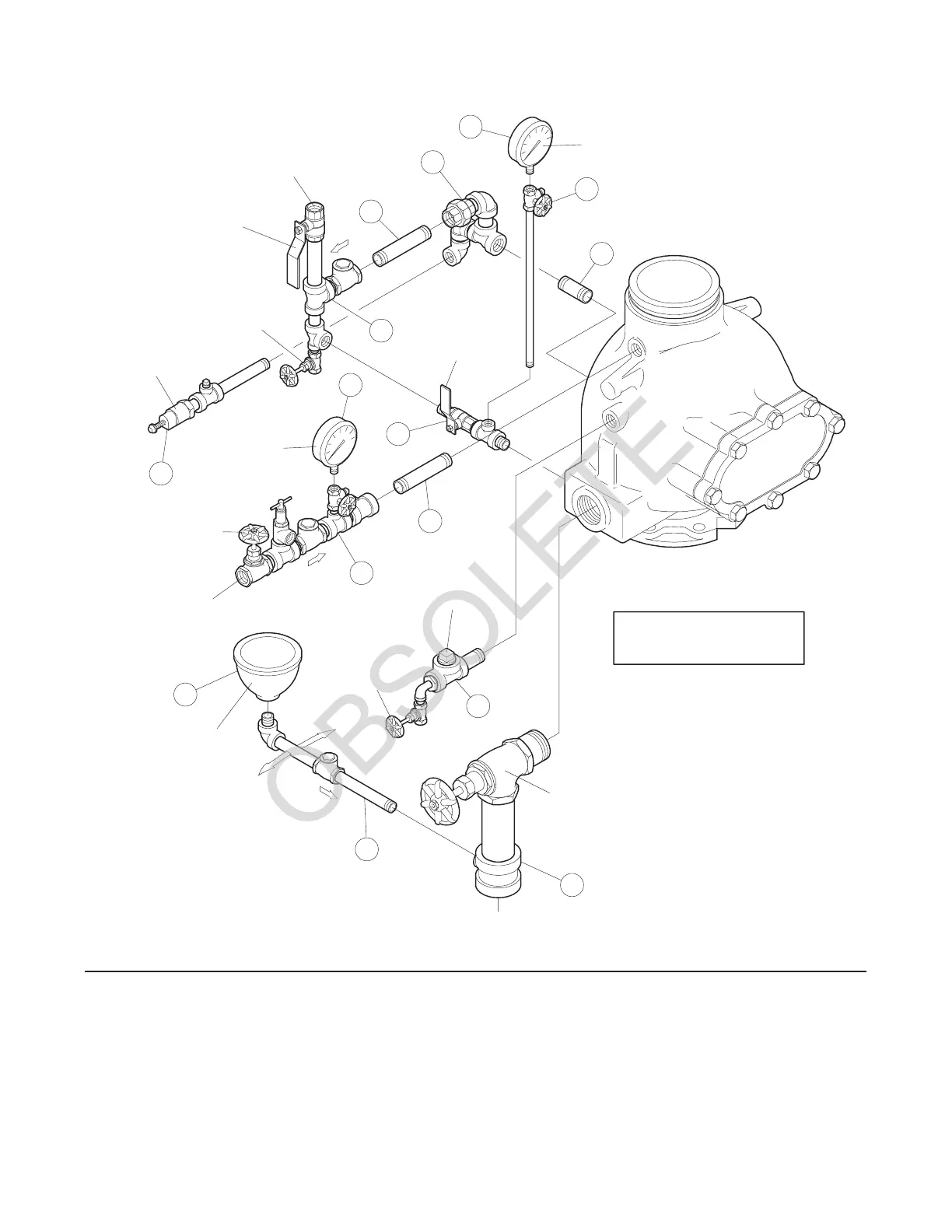

FIGURE 5
6 INCH (DN150) MODEL A-1 DRY PIPE VALVE TRIM
SUB-ASSEMBLIES (#1210)
PRESSURE
GAUGE
WATER SUPPLY
SYSTEM
TO ALARMS
CONNECTION
3/4 INCH NPT
TEST VALVE
ALARM
(NORMALLY
CLOSED)
AIR SUPPLY
CONTROL VALVE
(NORMALLY
OPEN)
3/4 INCH NPT
CONNECTION
FOR SYSTEM
AIR SUPPLY
PRESSURE
GAUGE
AIR SUPPLY
SYSTEM
AUTOMATIC
DRAIN VALVE
CONNECTION
PRIMING
1 INCH NPT
CLOSED)
(NORMALLY
DRAIN VALVE
MAIN
2 INCH NPT
CONNECTION
CLOSED)
(NORMALLY
TEST VALVE
PRIMING
TO DRAIN
ASSEMBLY
ORIENTED WITH
DRIP FUNNEL
POSITIONED
UNDER AUTOMATIC
DRAIN VALVE
2
1
14
4
3
FUNNEL
DRIP
15
6
5
11
CONTROL
(NORMALLY
OPEN)
ALARM
VALVE
DRAIN VALVE
ALARM LINE
(NORMALLY
CLOSED)
7
9
10
8
13
NOTE:
INSTALL TRIM ASSEMBLIES
IN NUMERICAL ORDER
NIPPLE
3/4" x 5"
NIPPLE
3/4" x 5"
NIPPLE
3/4" x 2-1/2"
12
