Stardom ST2-SB3 - Operating Information

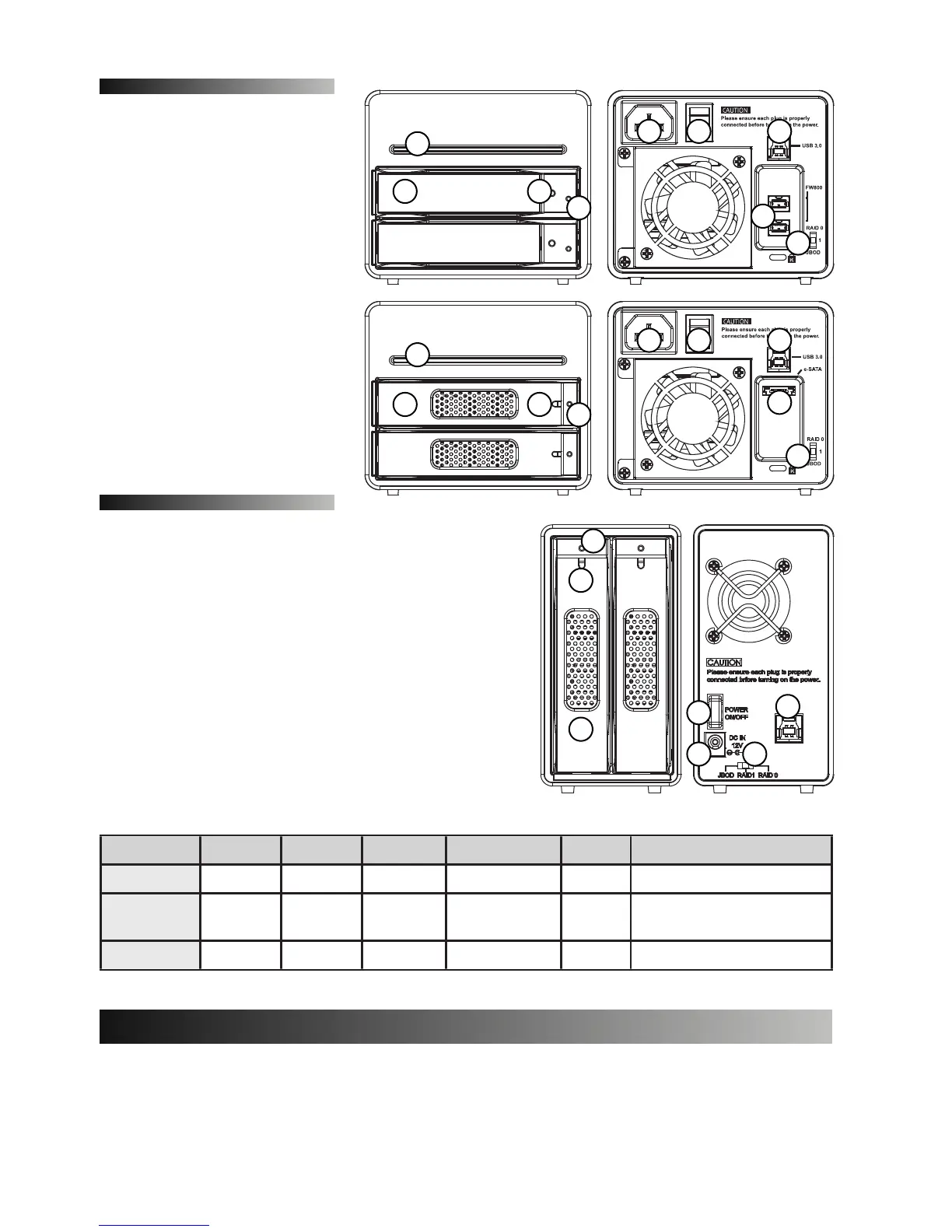

Front View
Rear View
LED Indicator Definitions
No Disk
Disk Idle
Access
HDD Failed
Sleep
Rebuilding
RAID 0
Red
Blue
Blue flash
Red
----
None
RAID 1
Red
Blue
Blue flash
Red
----
Source : Blue flash
Target : Blue & Red flash
JBOD
Red
Blue
Blue flash
----
----
None
Operating Temperature : 0 ~ 40 !C (32 ~ 104 !F)
Storage Temperature : -10 ~ 70 !C (14 ~ 158 !F)
Line Voltage : 100 ~ 240V AC
2. Operating Information
STARDOM ST2 User Manual
3
A.Power socket
B.Power switch
C.RAID mode switch
D.USB 3.0 interface connection
E.Firewire 800 interface connection
F. e-SATA interface connection
1. HDD Tray Handle
2. HDD Tray Ejection Hole
3. HDD Indicator LED
4. Power indicator
3
1
2
A
B
C
D
1
2
3
A B
C
D
4
E
1 2
3
A B
C
D
4
F
The ST2-WB3 secondary Firewire ( 1394b ) connection
can be used to connect to other Firewire 800 ( 1394b )
devices.
