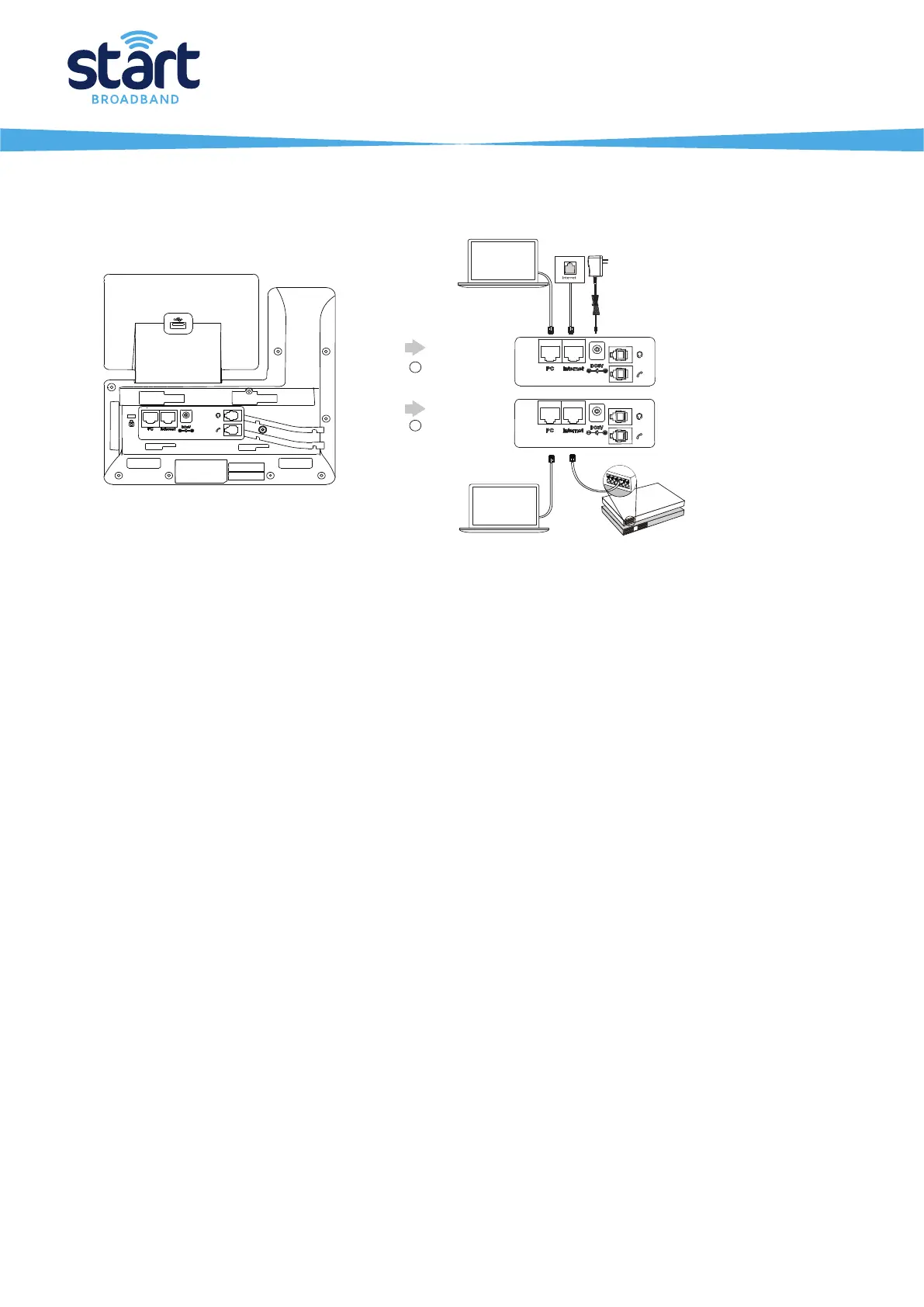

3. Connect the network and power
For the best performance, Start recommend that you connect your phone and your PC to separate ethernet ports.
After the phone is connected to the network and supplied with power, it automatically begins the initialisation process. Once complete
the phone will be ready to make and receive calls.
Page 2 of 4
PoE Hub/Switch
A
AC Power Option
PC Connection
(Optional)
Power Adapter
(DC 5V)
B
PoE ( Power over
Ethernet ) Option
PC Connection
(Optional)
IEEE 802.3af compliant
PC
PC
