3. To clean air cap and fluid tip, brush exterior with a
stiff bristle brush. If necessary to clean cap holes,
use a broom straw or toothpick if possible. If a wire
or hard instrument is used, extreme care must be
used to prevent scratching or burring of the holes
which will cause a distorted spray pattern.
4. To clean fluid passages, remove excess material
at source, then flush with a suitable solvent. Wipe
gun exterior with a solvent dampened cloth. Never
completely immerse in solvent as this is
detrimental to the lubricants and packings.
PREVENTATIVE MAINTENANCE
Spray Gun Lubrication
1. Apply a drop of GL-1 spray gun lube at trigger
bearing stud and the stem of the air valve. The
shank of the fluid needle where it enters the
packing nut should also be oiled. The fluid needle
packing should be kept soft and pliable by periodic
lubrication.
2. Make sure the baffle and retaining ring threads are
clean and free of foreign matter. Before assembling
retaining ring to baffle, clean the threads
thoroughly, then add two drops of GL-1 spray gun
lube to threads.
3. The fluid needle spring and air valve spring should
be coated with a light grease, making sure that any
excess grease will not clog the air passages. For
best results, lubricate the points indicated, daily.

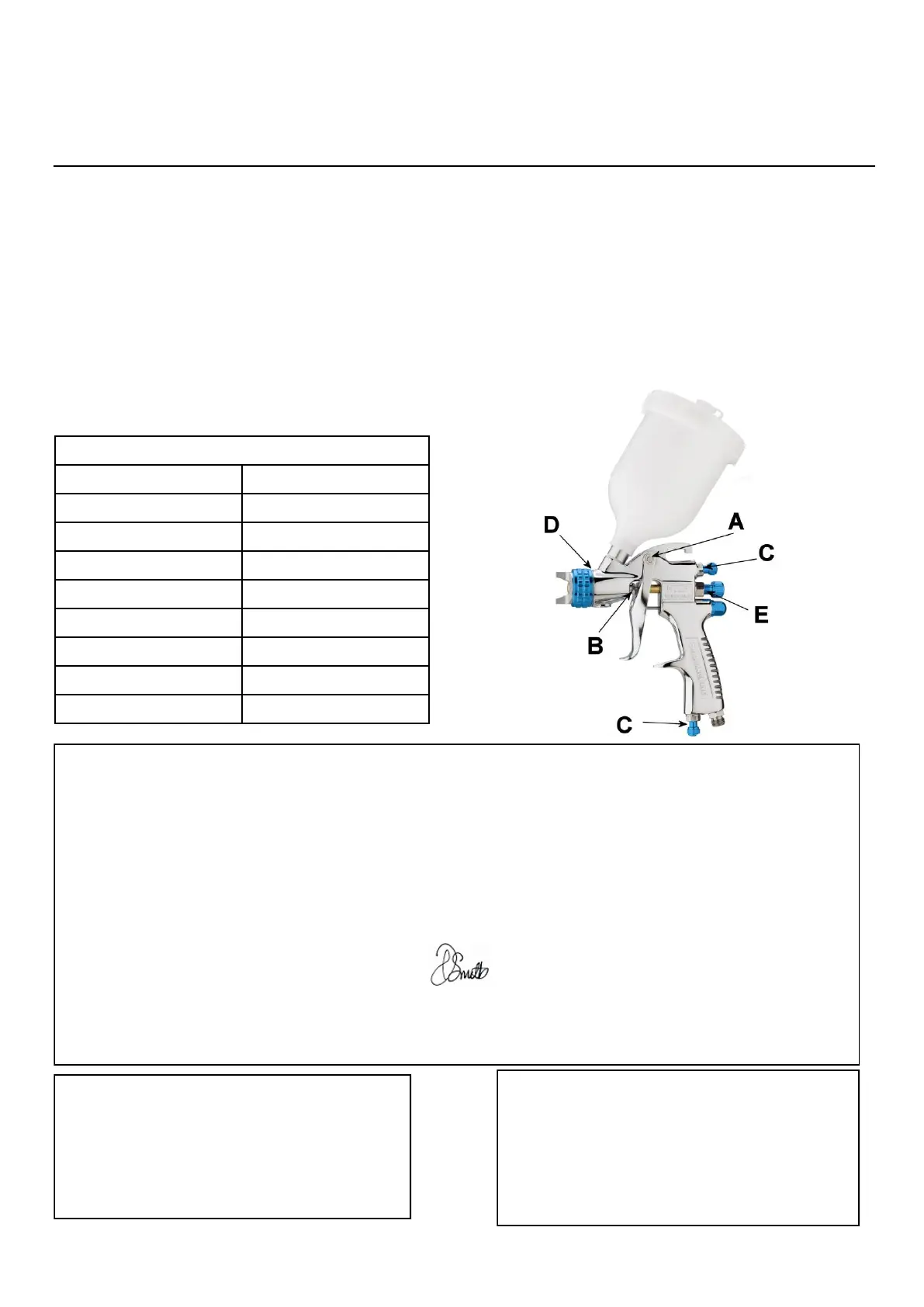

A. Trigger Points
B. Packing
C. Adjusting Valves
D. Baffle/Air Cap Threads
E. Needle adjusting knob and spring (inside knob)
SPARE PARTS
PART No
DESCRIPTION
SLG-110-1318
AIR CAP, for 1.3 & 1.8
SLG-110-25
AIR CAP, for 2.5
SLG-210-XX
FLUID TIP, 1.3, 1.8 or 2.5
SLG-310-XX
NEEDLE, 1.3, 1.8 or 2.5
SLG-40
NEEDLE PACKING
SLG-401
FAN CONTROL
SLG-402
AIR ADJUSTING VALVE
SLG-450
GRAVITY CUP AND LID
