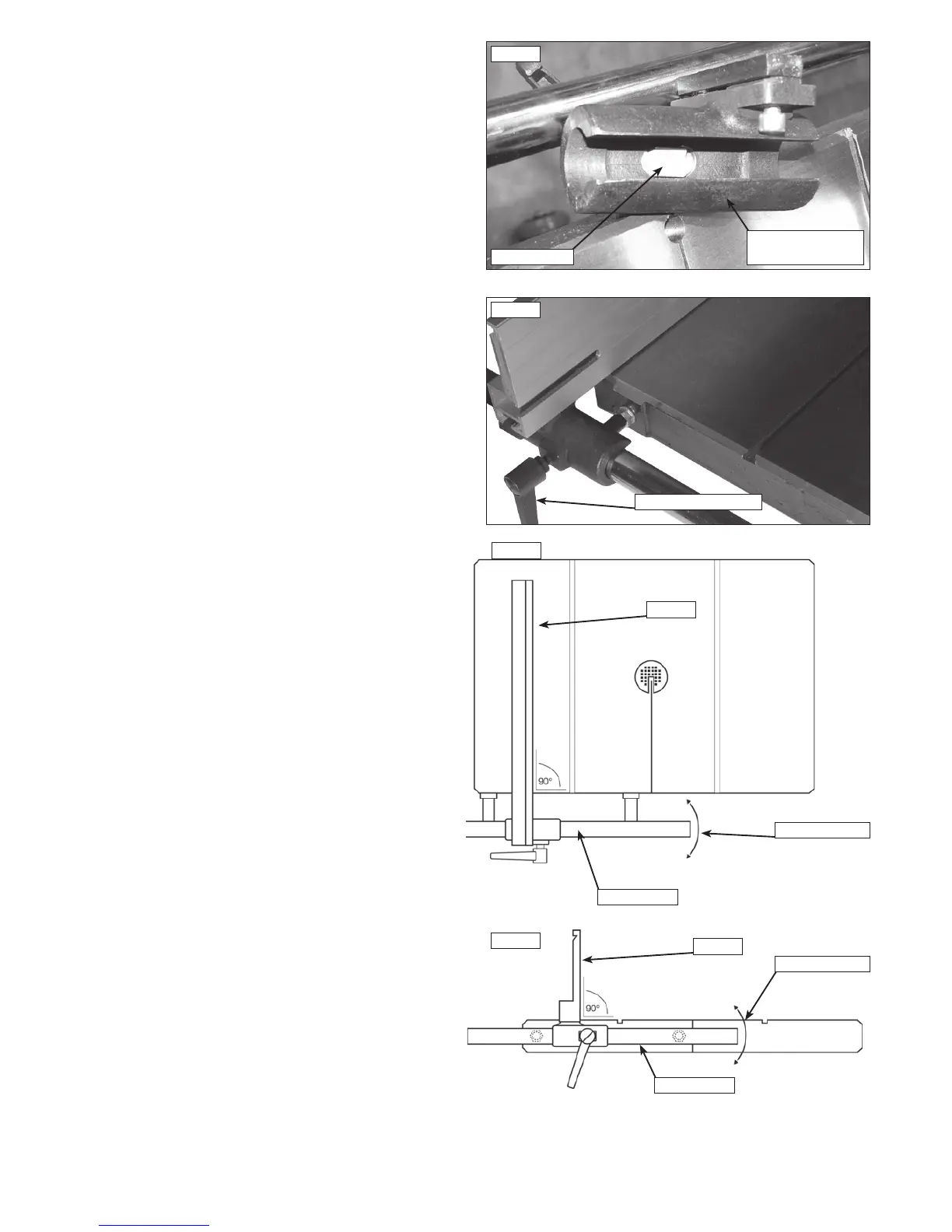

6.4 FITTING THE FENCE BAR
3.6 Cast iron fence carrier
Insert Brass Pad into fence carrier (See Fig.6.2).
3.7 Fitting the fence assembly
Locate fence assembly onto the fence bar. Position the fence on to the
table and lock off using fence ratchet handle. (See Fig.6.3).
3.8 Fence alignment 1
Align the fence assembly in or out until parallel with the side of the blade
(See Fig.6.4) by adjusting the fence bar nuts accordingly.
3.9 Fence alignment 2
Check that the fence is 90º to the table using a suitable square. If no
adjustment is needed fully tighten the fence bar nuts. If adjustment is
required this is achieved by raising or lowering either side of the fence rail
until the fence itself is 90º to the table, (See Fig.6.5). Once set at 90º fully
tighten the fence bar nuts.
CAUTION: Components of the machine are heavy.
Care should be taken when handling heavy components during assembly.
Always seek help when fitting or removing the worktable as this will
require two people to safely lift and position on the machine
Fig.6.2
BRASS PAD
Fig.6.3
RATCHET HANDLE
Fig.6.5
FENCE
FENCE BAR
ADJUSTMENT
Fig.6.4
FENCE
FENCE BAR
ADJUSTMENT
CAST IRON FENCE
CARRIER
