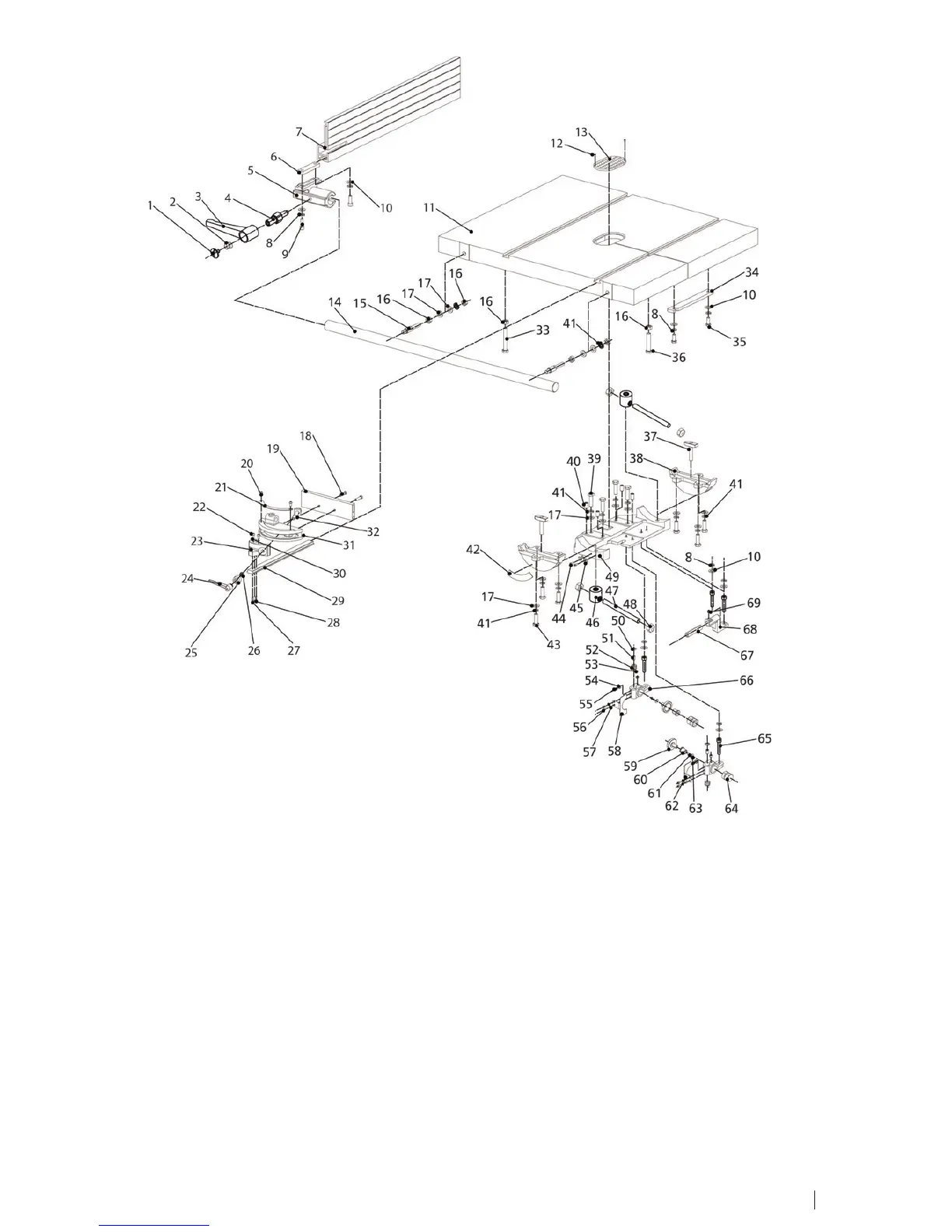

Ref No. Description
1 Hex. Socket head screw M6X10
2 Spring
3 Lock handle
4 Hex. Rod
5 Fence bracket
6 Bracket
7 Fence
8 Spring washer 8
9 Screw M8X25
10 Flat washer 8
11 Table
12 Set screw M5X4
13 Table insert
14 Guide rail
15 Guide rail support
16 Hex. Nut M10
17 Flat washer 10
18 Screw M6X20
19 Mitre gauge fence
20 Pan head screw M5X10
21 Angle scale
22 Rivet 2.5x5
23 Indicator
24 Lock handle
25 Bushing
26 Spring
27 Roll pin 3X16
28 Screw M5X14
29 Mitre gauge guide bracket
30 Mitre gauge sliding block
31 Mitre gauge base
32 Guide block
33 Hex. Bolt M10X70
34 Table bracket
35 Hex. Bolt M8X20
36 Hex. Bolt M10X55
37 T bolt
38 Table sliding block
39 Hex. Bolt M10X45
40 Set screw M10X25
41 Spring washer 10
42 Angle scale
43 Hex. Bolt M10X30
44 Hex. Socket head screw M4X10
45 Indicator
46 Lock handle
47 Handle rod
48 Cap nut M10
49 Trunnion support bracket
50 Hex. Nut M8
51 Set screw M8X12
52 Shaft
53 Pin nail
54 Hex. Nut M6
55 Hex. Socket head screw M6X10
56 Pan head screw M4X8
57 Flat washer 4
58 Spring washer 4
59 Left end cap
60 Bushing
61 Guide panel
62 Flat washer 4
63 Right end cap
64 Pan head screw M4X8
65 Shaft
66 Hex. Socket head screw M8X45
67 Lower guide support
68 Rear bracket
69 Rear support base
70 Screw M8X8
18 19
