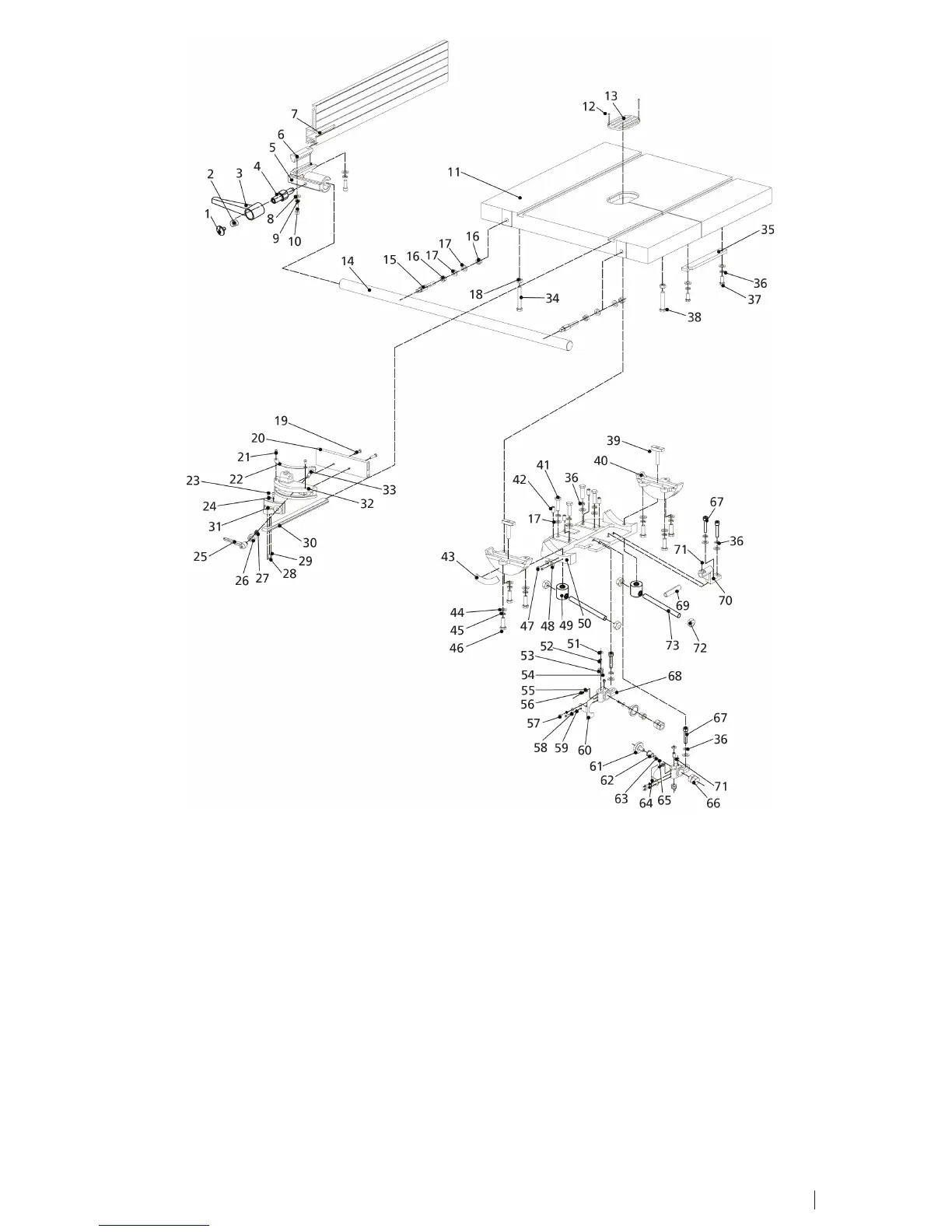

Ref No. Description
1 Hex. Socket head screw M6X10
2 Spring
3 Lock handle
4 Hex. Rod
5 Fence bracket
6 Bracket
7 Fence
8 Flat washer 6
9 Spring washer
10 Hex. Socket head screw M6X25
11 Table
12 Set screw M5X4
13 Table insert
14 Guide rail
15 Guide rail support
16 Hex. Nut M8
17 Flat washer 8
18 Hex. Nut M10
19 Screw M6X20
20 Mitre gauge fence
21 Pan head screw M5X10
22 Angle scale
23 Rivet 2.5X5
24 Indicator
25 Lock handle
26 Bushing
27 Spring
28 Roll pin 3x16
29 Screw M5X14
30 Mitre gauge guide bracket
31 Mitre gauge sliding block
32 Mitre gauge base
33 Guide block
34 Hex. Bolt M10X70
35 Table bracket
36 Spring washer
37 Hex. Bolt M8X20
38 Hex. Bolt M10X55
39 T bolt
40 Table sliding block
41 Hex. Bolt M8X40
42 Set screw M8X25
43 Angle scale
44 Flat washer 10
45 Hex. Nut M10
46 Hex. Bolt M10X30
47 Pan head screw M4X8
48 Indicator
49 Lock handle
50 Trunnion support bracket
51 Hex. Nut M8
52 Set screw M8X12
53 Shaft
54 Pin nail
55 Hex. Nut M6
56 Hex. Socket head screw M6X10
57 Pan head screw M4X8
58 Spring washer 4
59 Flat washer 4
60 Left end cap
61 Guide panel
62 Bushing
63 Flat washer 4
64 Right end cap
65 Pan head screw M4X8
66 Shaft
67 Hex. Socket head screw M8X25
68 Lower guide support
69 Rear bracket
70 Rear support base
71 Set screw M8X8
72 Cap nut M10
73 Adjusting rod
22 23
