STEP 4

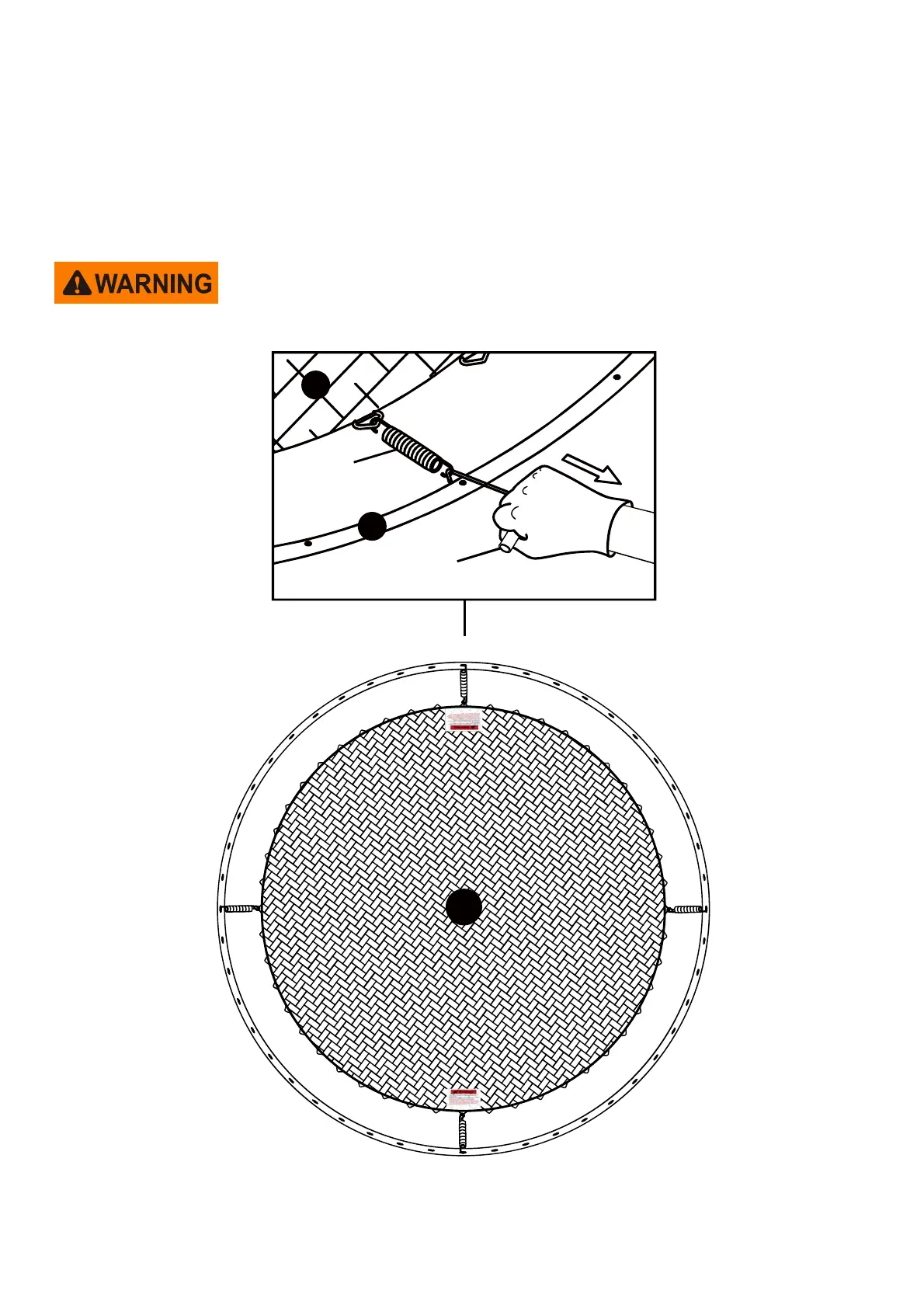

There are a total of 48 springs, For even distribution of spring tension and ease of assembly, the springs must
always be installed on opposite sides of the mat in an alternating manner, i.e. 1,then 25, followed by 13 and 37
as shown in below FIGURE. For ease of calculating springs, place the first spring beside a leg joint and in front
of the warning label.
Hint: The number of triangle-rings sewn onto the Mat is equal to the number of holes on the frame. If you
notice that you have miscounted a hole or triangle-ring, remove and reinstall the springs as necessary while
maintaining an even distribution of tension as explained above.
Heavy gloves must be used to protect your hands from pinch points during assembly and goggles
must be worn to avoid injuries to the eyes.
