3.3.5 TRANSDUCER BRIDGE INPUT

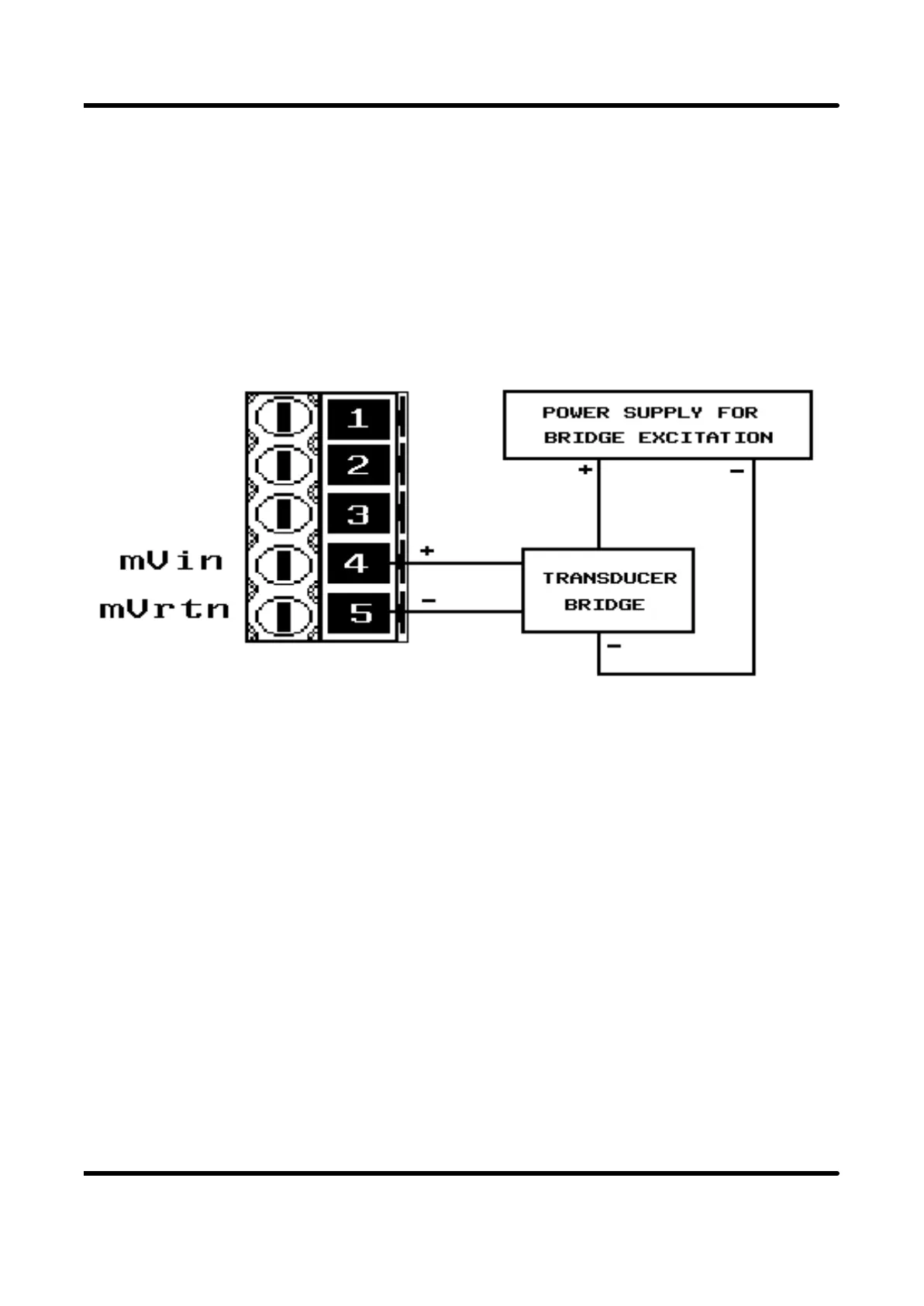

A transducer bridge requires two sets of connections. A power supply and bridge

output. The bridge output is treated as a millivolts signal and connected between pins

4 and 5 as in the diagram below.

Note that the power supply could be from the units bridge excitation output option or

an external power supply.

INSTALLATION

SENSOR CONNECTIONS

Page 16
