MECHANICAL INSTALLATION
When installing the instrument into the panel, the following dimensions should be
taken into account.
The unit is held in the Panel by two metal clamp bars, on diagonally opposite corners,
fitted from the rear. A gasket is available, and should be fitted wherever sealing of the

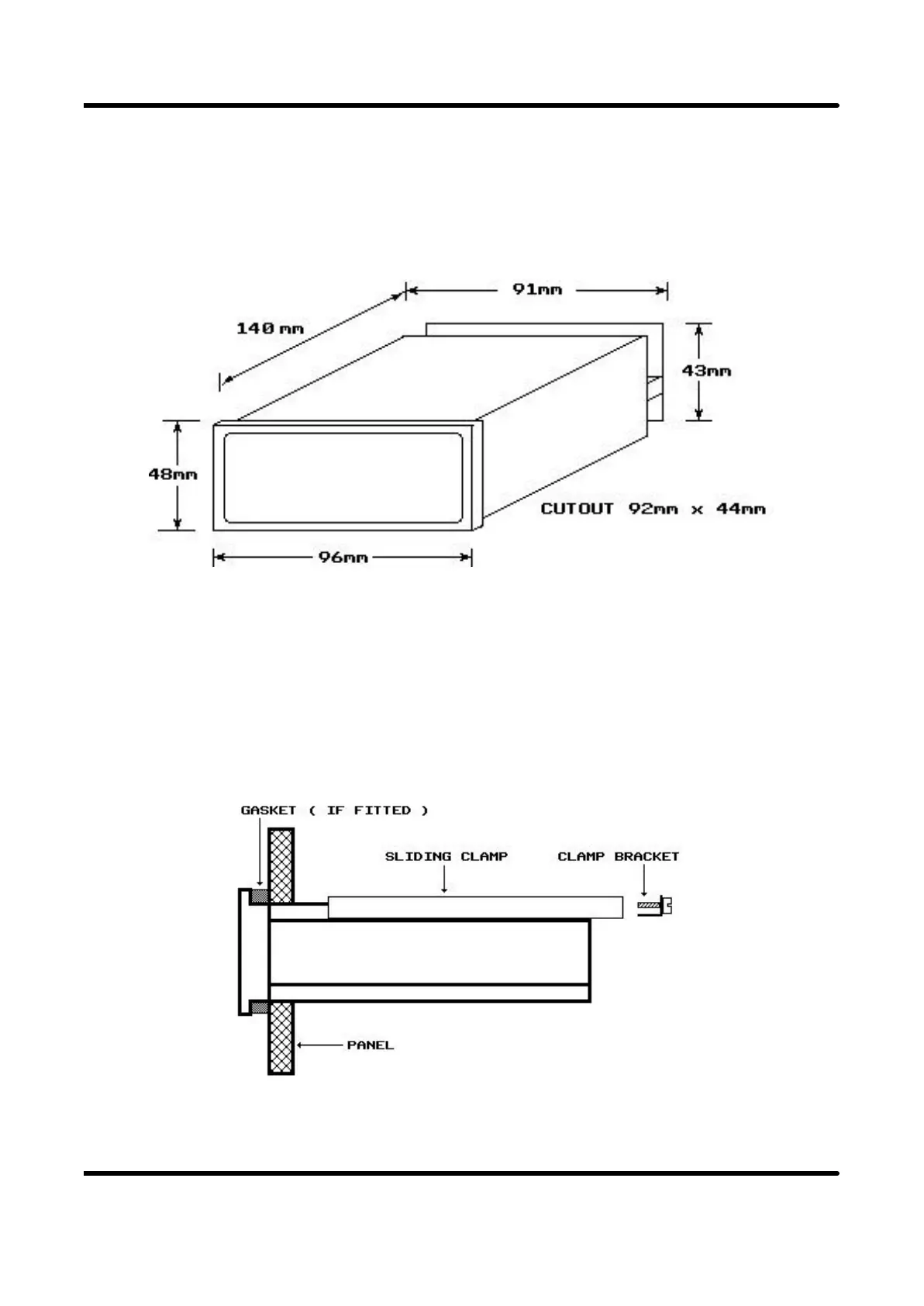

instrument is required. See diagram below.
The maximum panel thickness is 3.5mm with a gasket and 4.5mm without. The gasket
has a self adhesive side which should be stuck to the panel around the cutout. The
instrument may then be inserted and tightened against the gasket to form a seal. The
panel should be clean and smooth for the seal to be effective.
