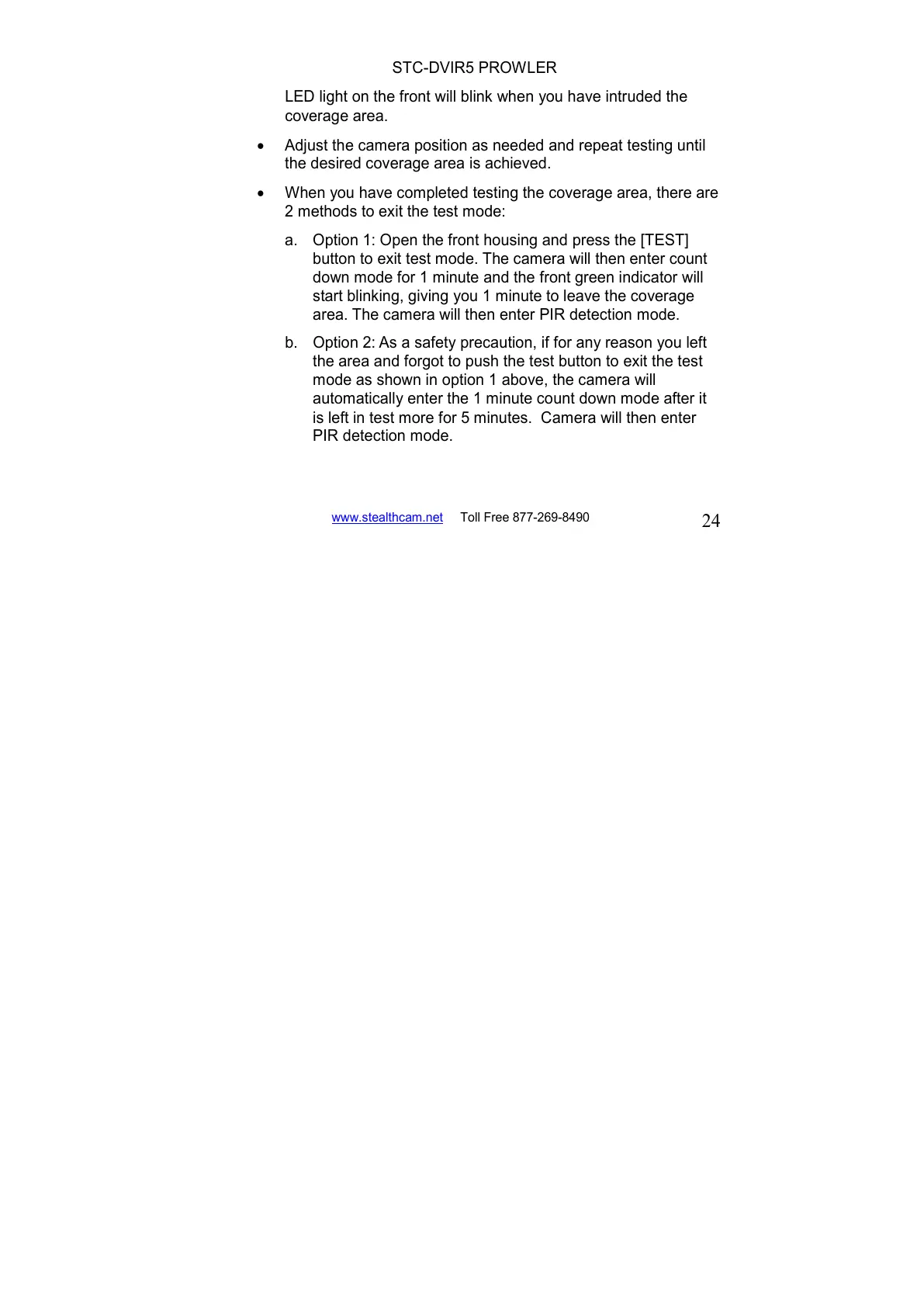

LED light on the front will blink when you have intruded the
coverage area.
• Adjust the camera position as needed and repeat testing until
the desired coverage area is achieved.
• When you have completed testing the coverage area, there are
2 methods to exit the test mode:
a. Option 1: Open the front housing and press the [TEST]
button to exit test mode. The camera will then enter count
down mode for 1 minute and the front green indicator will
start blinking, giving you 1 minute to leave the coverage
area. The camera will then enter PIR detection mode.
b. Option 2: As a safety precaution, if for any reason you left
the area and forgot to push the test button to exit the test
mode as shown in option 1 above, the camera will
automatically enter the 1 minute count down mode after it
is left in test more for 5 minutes. Camera will then enter
PIR detection mode.
