Installation and Maintenance
Service Manual
Steps

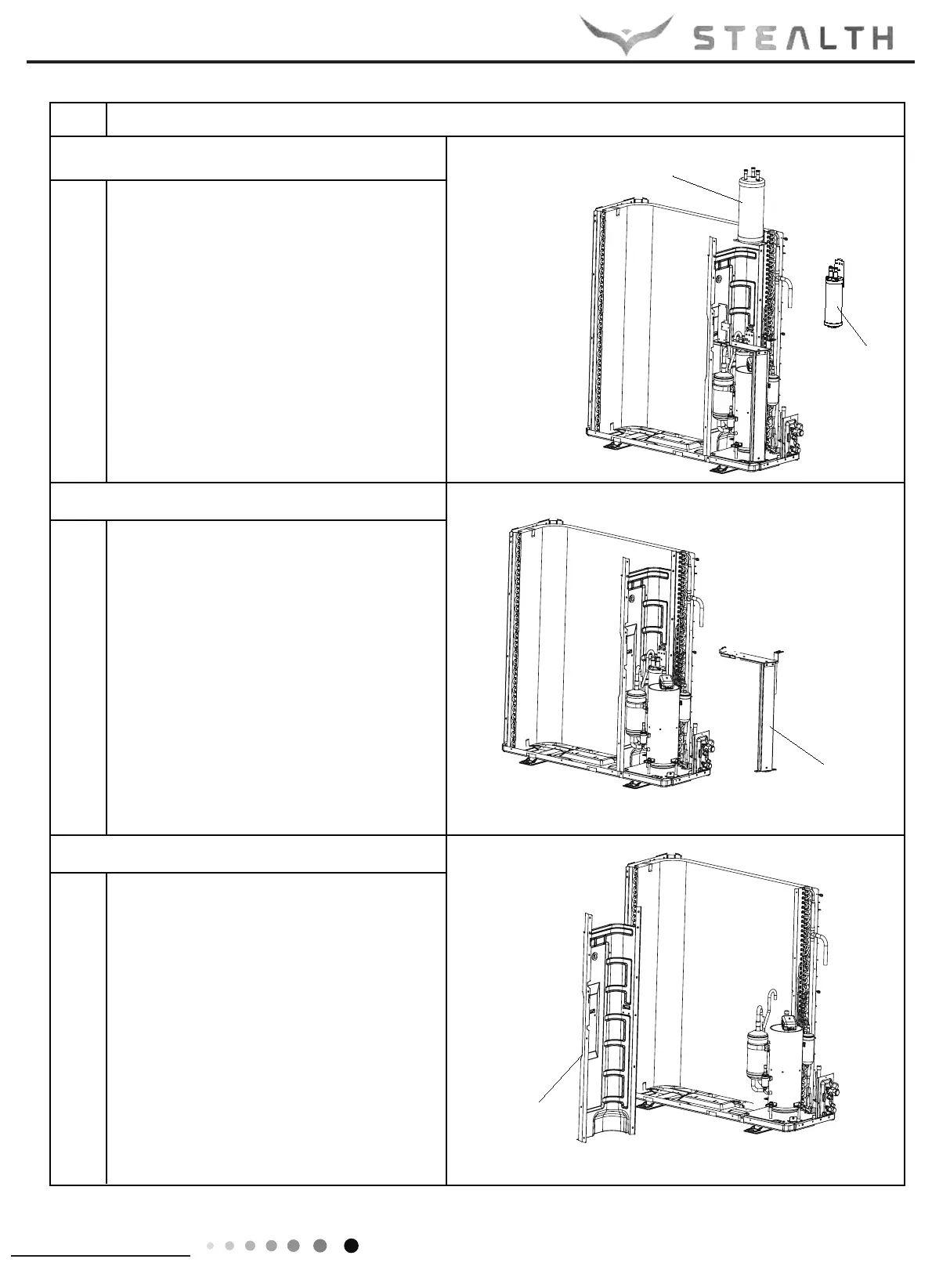

Twist off the screws connecting accumulator
and gas-liquid separator, and then remove
the accumulator and gas-liquid separator.
11.Remove accumulator and gas-liquid separator
gas-liquid
separator
accumulator
Procedure
Twist off the screws connecting supporting board
sub-assy(accumulator) and then remove the
supporting board sub-assy(accumulator).
12.Remove supporting board sub-assy(accumulator)
supporting board
sub-assy(accumulator)
13.Remove left side plate
left side plate
Twist off the screws connecting the left side plate
and chassis with screwdriver, and then remove
the left side plate.
