The Stealth Ultra is a versatile gaming controller designed for use with Xbox Series X|S, Xbox One, Windows 10/11, and Android Smart Devices. It offers both wireless and wired connectivity options, providing flexibility for various gaming setups.

Function Description:

The Stealth Ultra functions as a high-performance gaming controller, offering extensive customization and control over gameplay and audio settings. It features a Command Display that serves as a central hub for adjusting various aspects of the controller, operating in two main modes: Dashboard and Main Menu.

The Dashboard mode allows for quick adjustments during gameplay, including:

Profile Selection: Easily switch between up to 10 on-board profiles, each with unique settings tailored for different games or preferences.
EQ Cycle: Adjust audio equalization settings on the fly.
Social Feed: View recent notifications from a connected smart device.
Mic Mute: Quickly mute the microphone.
Chat Mix: Adjust the balance between game audio and chat audio.
Volume Control: Increase or decrease overall volume.

The Main Menu provides more in-depth customization and access to all product features. Navigation within this menu is intuitive, mirroring console interfaces using the D-Pad and A/B buttons for selection and cancellation. Customization options are stored on-board and are categorized as:

Per Profile: Settings that can vary based on the active profile, such as button mappings and lighting setups.
Global: Settings that remain consistent across all profiles, like Command Display brightness.

Key sections within the Main Menu include:

CONNECT: Manages wireless connections to Xbox/PC via a wireless dongle or Bluetooth to smart devices. The controller intelligently switches between wired and wireless modes, prioritizing wired when connected via USB-C for charging or gameplay.
SYSTEM: Allows adjustment of global settings, including:
- Firmware: Displays the current firmware version and prompts for updates.
- Calibration: Enables calibration for sticks and triggers to ensure optimal performance.
- Screen Brightness: Adjusts the backlight intensity of the Command Display.
- LED Brightness: Controls the brightness of the RGB LEDs.
- Screen Timeout: Sets the duration before the screen dims when inactive.
- Sleep Timeout: Configures the duration before the controller powers down when inactive.
- Power Mode: Selects between Full, Balanced, and Eco modes to manage power consumption, affecting screen and LED brightness, and sleep timeout.
- Charging LED: Adjusts the brightness of RGB LEDs during charging.
- Social Alert Colour: Customizes the RGB LED color that flashes for social notifications.
- Reset to Defaults: Reverts all on-board memory settings and profiles to factory defaults.
SOCIAL: Displays recent notifications from a connected smart device, requiring an "APP LINK" connection to be established first.
PROFILES: Manages the 10 on-board profile slots, allowing users to select and activate specific profiles.
HEADSET MIXER: Provides comprehensive control over audio experience, including:
- Volume: Overall audio level.
- Chat Mix: Game audio/chat audio balance.
- Mic Monitoring: Adjusts the level of your own voice heard through the headset.
- Mic Gain: Controls microphone input sensitivity.
- Mic Open/Mute: Toggles microphone status.
- Signature Sound: Selects different EQ presets (Custom, Signature Sound, Bass Boost).
- This feature is per-profile and requires a 3.5mm headset to be plugged into the controller.
BUTTONS: Allows mapping of standard controller buttons to the four programmable buttons on the bottom of the controller. It also includes a "PRO AIM" feature to reduce right stick sensitivity for improved aiming precision, adjustable via the D-Pad. This is a per-profile setting.
AXIS MAPPING: Enables performance adjustments for analogue sticks and triggers, also a per-profile feature.
- RESPONSE (Sticks only): Modifies the relationship between physical stick movement and input data. Options include Standard (1:1), Precision (more movement for less input), and Fast (less movement for more input).
- DEADZONE (Sticks and Triggers): Creates an area in the center of sticks or at the start of triggers where no input data is sent.
VIBRATION: Offers full control over the four vibration motors, with per-profile settings. Users can cycle through motors (Left Side, Right Side, Left Trigger, Right Trigger) and adjust intensity.
LIGHTING: Customizes the RGB LEDs, a per-profile feature. Users can choose from different colors or create custom ones via Control Center 2, select various lighting effects (e.g., breathing), and adjust the speed of these effects.
APP LINK: Establishes a Bluetooth connection to iOS or Android smart devices specifically for relaying smart device notifications to the Command Display. This is distinct from the "Smart Devices" option in the CONNECT menu, which handles general device pairing.

Usage Features:

Wireless and Wired Operation: The Stealth Ultra can be used wirelessly with its transmitter or as a wired controller via the supplied USB-C cable. When connected via cable, it prioritizes the wired connection and charges simultaneously.

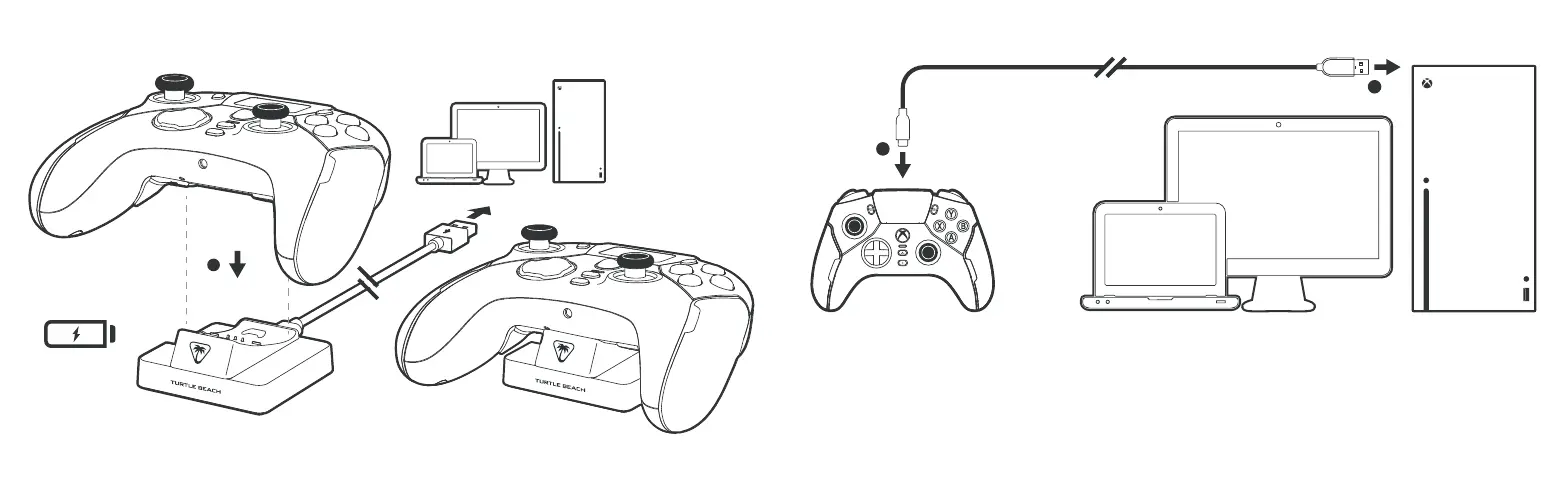

Rapid Charge Dock: The controller comes with a rapid charge dock, allowing for convenient and quick charging. It can also be charged directly via a USB-C cable. LEDs on the controller indicate battery status (red for low, green for full).
Adjustable Trigger Locks: Physical switches on the controller allow users to adjust the trigger pull distance for faster reactions in certain games.
Mappable Action Buttons: Four programmable buttons on the underside of the controller can be assigned to various functions, enhancing gameplay efficiency.
Thumbstick Grip Caps: Includes four interchangeable thumbstick grip caps for personalized comfort and control.
Carry Case: A protective carry case is provided for safe storage and transport of the controller and its accessories.
Intuitive Command Display: The integrated display offers a user-friendly interface for real-time adjustments and in-depth customization without needing external software during gameplay.
Guide Button Functionality: The Guide button serves multiple purposes: a 2-second press powers the controller on, and a 6-second press powers it off.
Input Focus Button: Allows users to quickly switch the input focus between the game and the Command Display for on-the-fly adjustments.

Maintenance Features:

Firmware Updates: The SYSTEM menu provides information on current firmware and prompts for available updates, ensuring the controller remains up-to-date with the latest features and performance enhancements. Updates are typically managed via a connected app or PC.
Calibration: The ability to calibrate sticks and triggers helps maintain optimal performance and accuracy over time, compensating for potential wear or drift.
Reset to Defaults: The "Reset to Defaults" option in the SYSTEM menu allows users to easily revert all settings to their factory state, useful for troubleshooting or starting fresh with configurations.
Charging Indicators: LED indicators on the controller clearly communicate charging status, helping users manage battery life effectively.
Durable Design: While not explicitly detailed in the provided content, the inclusion of a carry case suggests an emphasis on protecting the device during transport and storage, contributing to its longevity.
Support Resources: The manual directs users to www.turtlebeach.com/support for questions and www.turtlebeach.com/warranty for warranty information, providing clear channels for assistance and product care.
Product Registration: Users are encouraged to register their product at www.turtlebeach.com/productregistration to receive important updates, which may include maintenance tips or software improvements.
