- 4 -
06/14
Pub. No. 908-F
Electric Steam Cleaner
Installation and Operating Instructions
120 VAC
BK
GN
WT
STEAM
SOLENOID
VALVE
FILL
HEAT
FILL
HEAT
FILL/STEAM
LIGHT
HEATING LIGHT RESET LIGHT
HEATING
ELEMENT
TEMPERATURE
CONTROL
LOW WATER
CUT-OFF
FOOT SWITCH
SWITCH
To order replacement parts:
When ordering replacement parts for your Steam Cleaner
please provide your authorized Steamaster Sales Agent
with both the part number and description.
IMPORTANT:
Please fill out and retain for your records. See label on machine for Serial
Number.
Model No.
Serial No.
Date Purchased
Purchased from

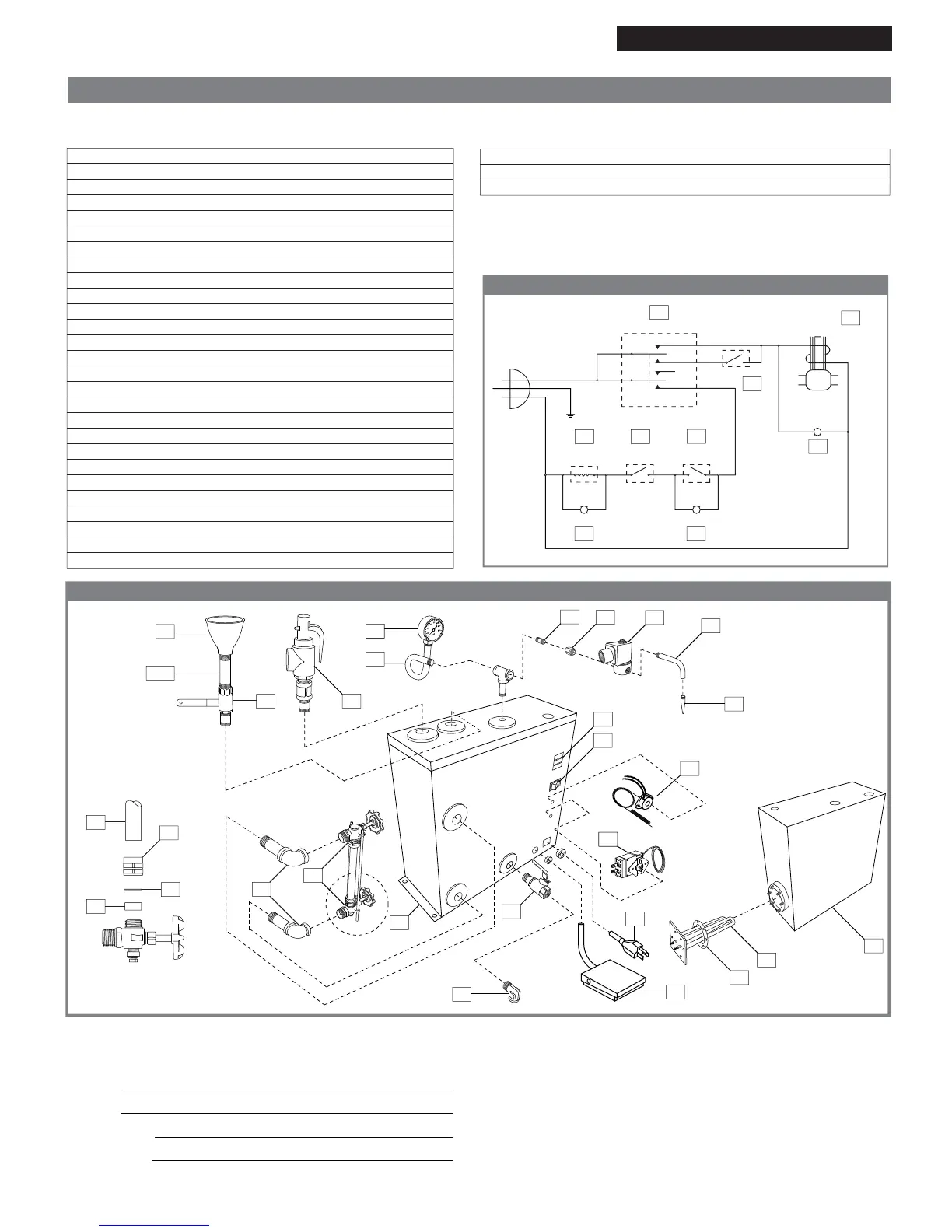

HPJ-2S Exploded View
19A
19
20
25
14
24
7
6
2
27
22
20
24
18
17
11
8
9
10
Details "A"
Details "A"
12
16
13
26
15
23
21
3
1
4
5
wiring Diagram
MODEL HPJ-2S PARTS LISTING
ITEM
25
26
27
PART NO.
007-1214
005-1101
005-2109
DESCRIPTION
½" Safety Valve 100psi
¼" x 1½", nipple
Street Elbow ½" x ½"
QTY
1
1
1
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17A
17B
17C
18
19
19A
20
21
22
23
24
PART NO.
N/A
N/A
006-6348
007-4114
007-4102
007-1212
005-1014
007-1260
006-3207
005-2138
007-4105
006-3216
007-1102
005-2074
005-2122K
005-2023
007-1240-1
007-1240-2
007-1240-3
007-5275
006-3215
005-2017
007-1205
006-4201
007-1122
002-1075
007-1129
DESCRIPTION
Tank
Cabinet
Heating Element 120V, 1.5kW
Pressure Control
Thermodisc High Limit Reset Switch
Water Gauge Fixture Top and Bottom
Elbow, ½”NPT
Water Gauge Friction Washer
Water Gauge Rubber Washer
Gauge Glass Packing Nut
Gauge Glass, ⅝” x 8”L
Aluminum Nozzle
¼" Steam Solenoid Assembly
Pig Tail
¼” Adaptor with Strainer (inside)
"L" Shape Nipple (¼" Male THD x ⅛" FTHD
Indicator light Fill/Steam, Orange
Indicator light Heat, Orange
Indicator light Reset, Red
Rocker Switch
Funnel
½” x 3” nipple
½" Ball Valve, Fill/Drain
Gasket for heating element
Electric Foot Switch – Pedal
Cord with plug
Pressure Gauge
QTY
1
1
1
1
1
1
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
17
1717
18
13
22
5
3
4
STEAMASTER CO., INC.
25 East Union Ave
East Rutherford, NJ 07073
Tel. (201) 933-5800
Fax (201) 933-0746
Model: HPJ-2S
