Tip:
Use a sharp knife
to cut skin.
Short Screws
(Receptacles)
Long Screws
(Data/Communication)
4 5
6
7
8

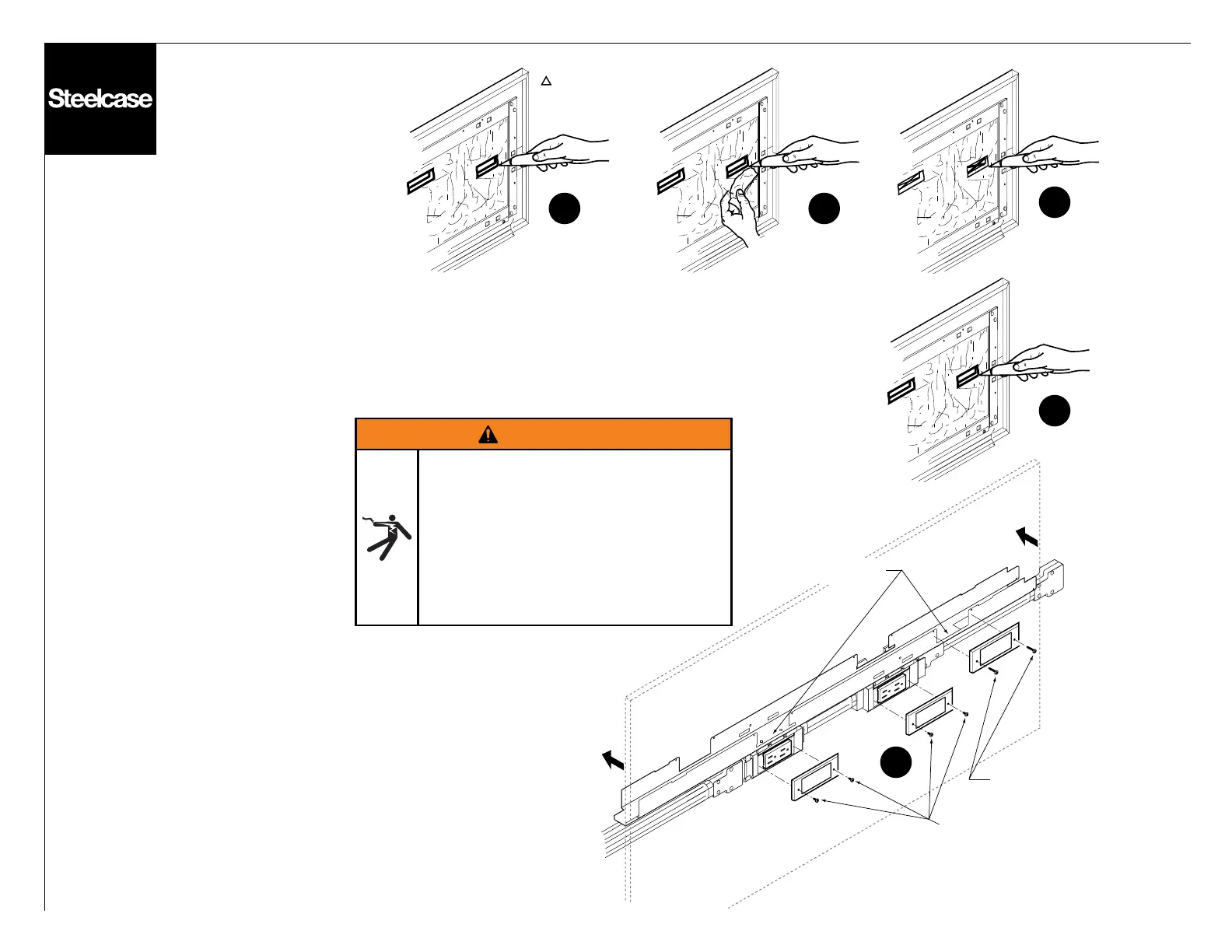

4.
Cut skin back where impressions
are. Be careful not to cut through
the material.
5. Remove inside pieces exposing
the material.
6. Cut an "X" from corner to corner.
7. Pull material through hole and
secure with tape.
8. Position skin and attach receptacle
covers.
NOTE: When replacing the panel skin,
make sure that the face plate mounting
screws do not make contact with the
foil backing of the panel skin.
Page 4 of 10
939504633 Rev Y
Risk of Fire or Electric Shock
When mounting the face plates:
• Use only the short screws
(#6-32 x 3/4") for the receptacles, and
• Use only the long screws
(#6-32 x 1-1/4") for data jacks.
• Receptacle opening must be 1-1/2" x
3-5/8". Use template to mark opening.
WARNING
Location of
Communication/Data
Ports
