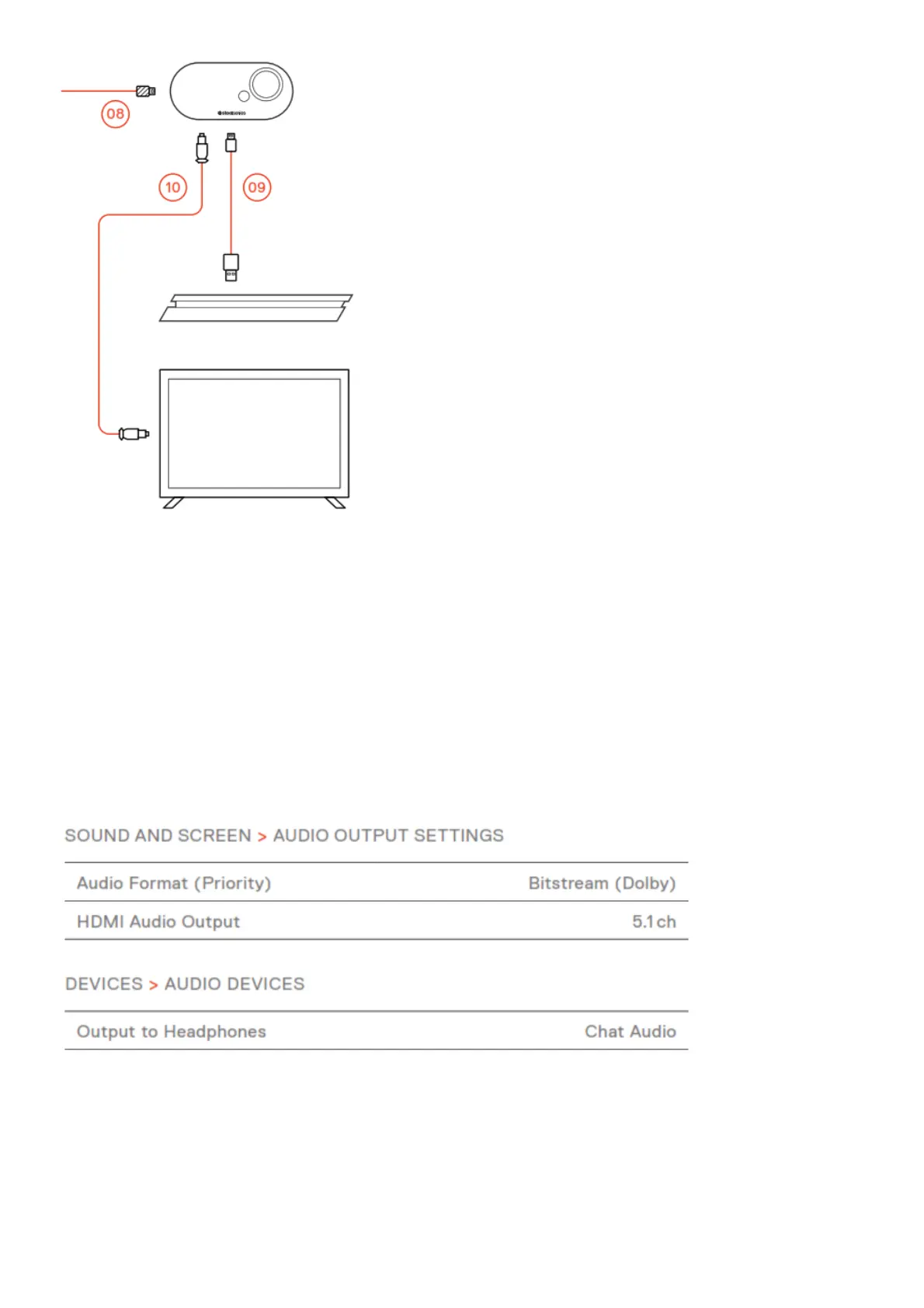

HARDWARE INSTALLATION WITH OPTICAL AUDIO
01 Connect the main headset cable 08 from the headset to the left side of the GameDAC
02 Connect the optical cable 10 from the GameDAC to the optical output of your TV or HDMI adapter
03 Connect the USB audio cable 09 from the GameDAC to the USB port on the front of the PS4
* The PS4 Slim does not have an optical output. For full functionality, you will need to connect the
GameDAC to the optical output of a TV or an HDMI adapter. If no optical is available proceed to the
next page.
GameDAC SETTINGS
01 Press and hold the control wheel 14 to enter the main menu
02 Select Input, then click the control wheel 14 to edit
03 Choose the PS4 mode
PS4 AUDIO SETTINGS
SETUP PS4 SLIM
HARDWARE INSTALLATION
