Steinbach MINI Series - Spare Parts Identification

** single-phase alternating current
*** heat loss was not taken into account (e.g. with or without cover, insulation, etc.)

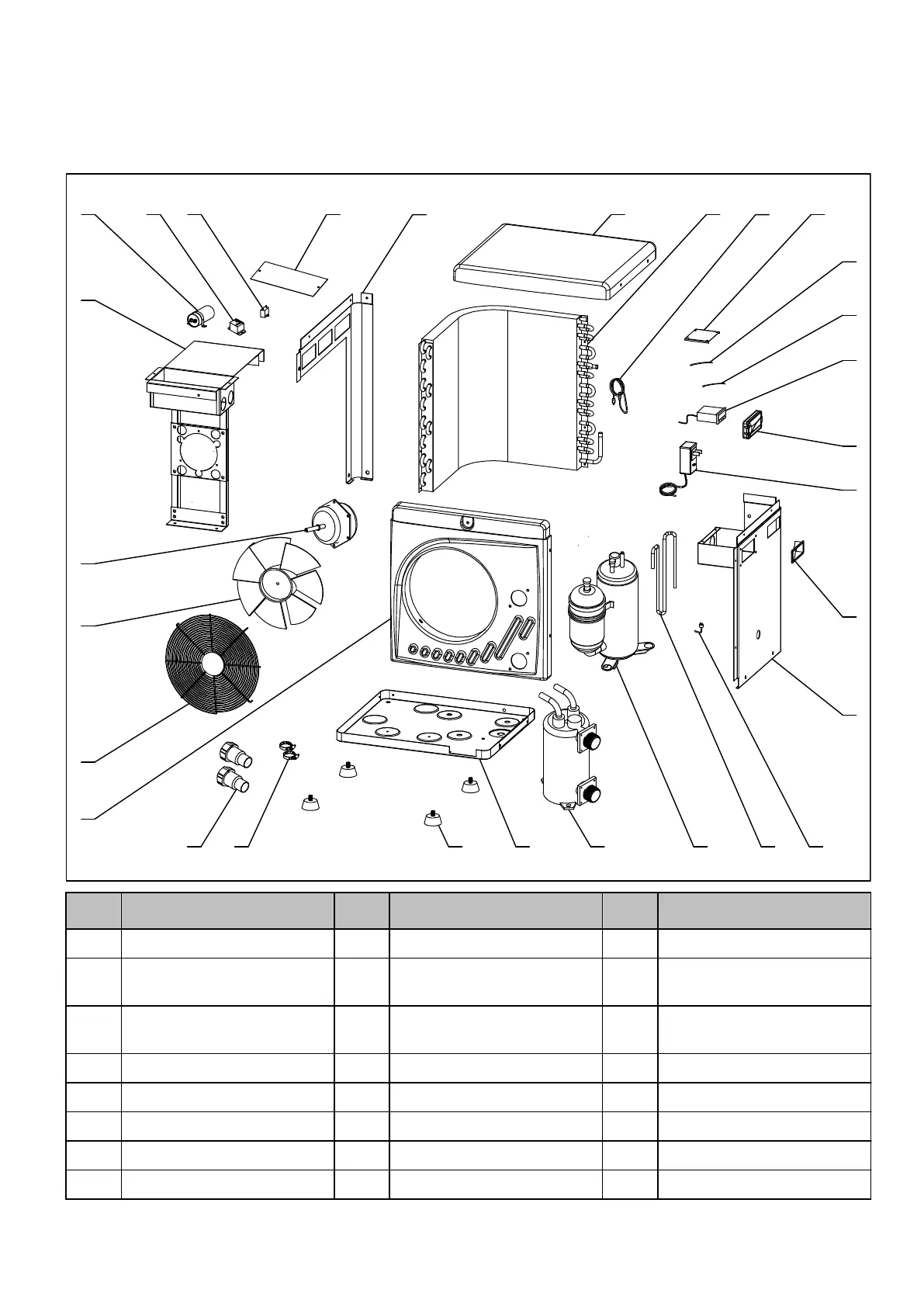

Spare parts
3
7
8
16
17
1920
22
23
24
25
26
21 4
9
10
11
12
28 5
6
27
29
15
21
13
14
18
Item Spare part Item Spare part Item Spare part
1 Rubber foot 11 Display 21 Relay
2 Frame 12 Compressor sensor 22 Compressor start-up
capacitor
3 Titanium heat exchanger 13 Water connection inlet
sensor
23 Fan bracket
4 Compressor 14 Cover 1, electrical box 24 Motor fan
5 Copper tube 15 Capillary tube 25 Fan blade
6 Interrupter, low pressure side 16 Capacitor 26 Fan guard grille
7 Cover, right 17 Cover, top 27 Cover, front
8 Handle 18 Cover, left 28 Adapter
