Steinway & Sons Model D – Installation Manual, version 2.1

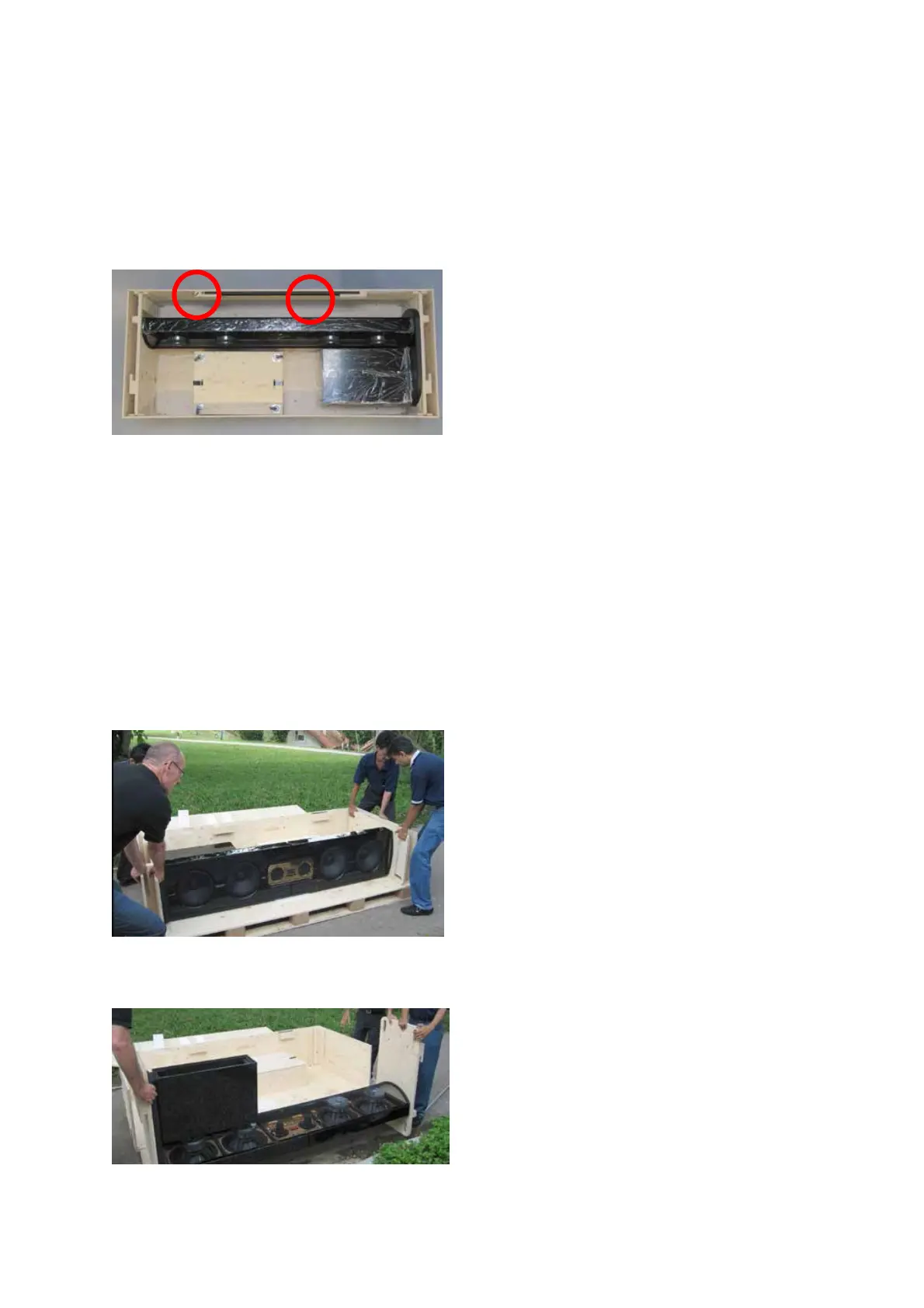

Once you have unclipped the box, remove the top. The speakers are bolted to two wooden plates equipped
with handles and lifting points. In the right channel speaker box, in a small compartment on the speaker front
facing wall, you will find two levers for later moving usage and an Unbraco fastener for removing the transport
fittings on top and bottom of the speakers.
You will find a Hex/Allen (Unbraco) key and two steel levers inside the box. The levers are for moving the
speaker when it has been unpacked. The key is for removing the transport fittings at top and bottom of the
speakers.
After unclipping the top of the crate, remove the side wall as illustrated. The speakers are bolted to two
wooden plates equipped with handles and lifting points. Carefully slide out the speakers and place them firmly
on the ground. Using the supplied steel levers, you can now carry the loudspeaker. The levers are located in a
room on top of one of the crate walls. Place them in the transport fittings as shown. Four people will now be
able to move the speaker securely into the installation site. Do not remove the protective foil before final
placement! Remove your watches, buckles, rings etc. before handling the lacquered system components.
Carefully slide out the speaker from the opened box.
Carefully lift the speaker completely out of the box. You can now move it using the supplied levers.
