TMAX™ Owner’s Manual | Page 7
TMAX Installation Notes
• Before performing any tasks that involve welding to the chassis, refer to the specific
chassis manufacturer’s recommendations.
• When lifting and placing the body, use the D-Ring tiedown locations and always lift
vertically.
Chapter 3 - Installation

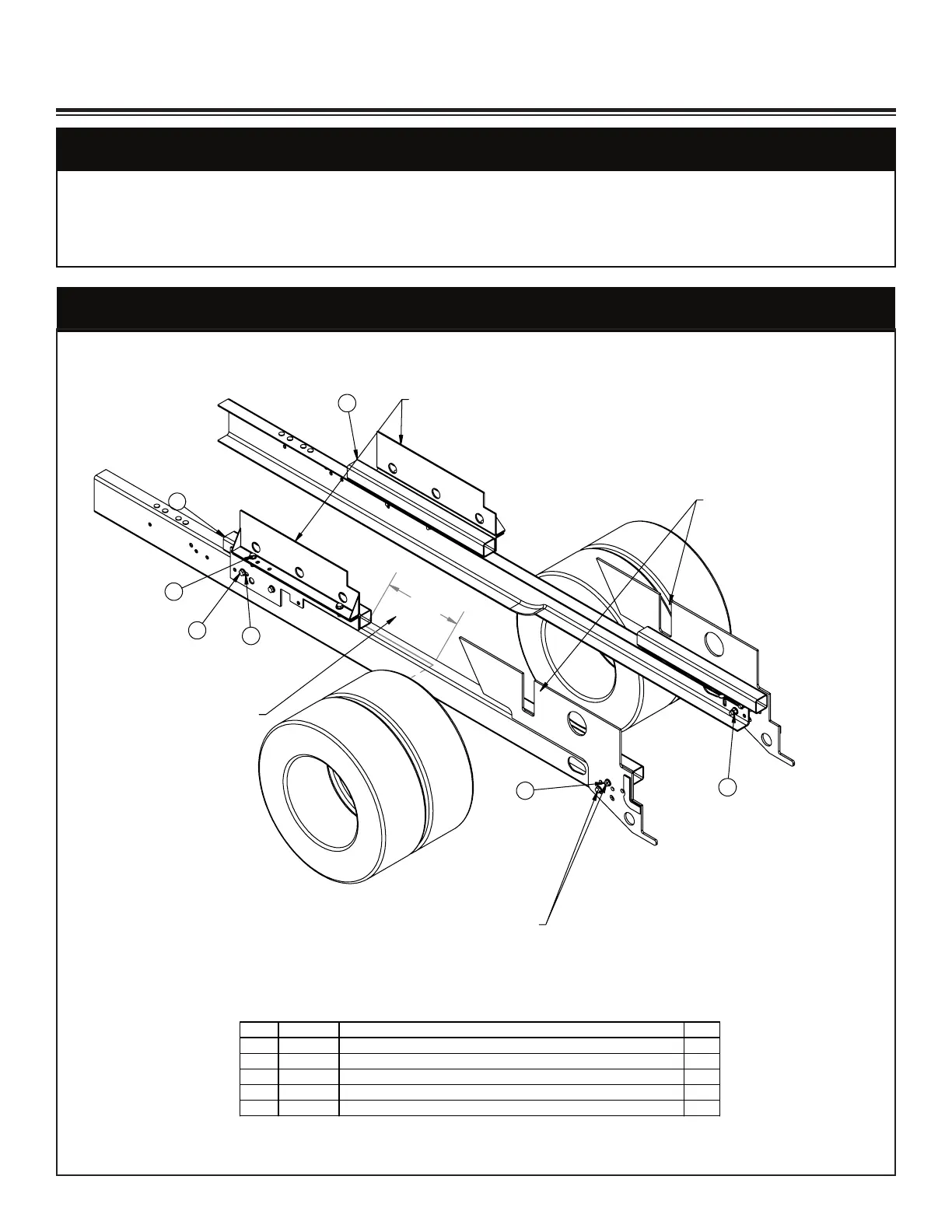

TMAX1/30K/16K-9 Mounting Kit - Ford - PN 24051
17.13
EXISTING HOLES IN FORD CHASSIS.
BODY MOUNT ON REAR
OF SUBFRAME.
BODY MOUNT ON FRONT OF SUBFRAME
2
1
3
6
3
3
7
CENTER OF AXLE TO
REAR OF FRONT MOUNT
PN 24051
01 24046 1BRKT BODY MNT 60 CA T1 9 LF FRT PC BLACK
06 C5902 24WASHER 0.63 SAE FLAT YELLOW GR8
03 C1025 12CAP SCR 0.63-11X2.00 HHGR8
02 24047 1BRKT BODY MNT 60 CA T1 9 RF FRT PC BLACK
07 24868 12NUT 0.63-11 HHGR8 NYLOC
ITEM PART No. QTY.DESCRIPTION
