Page 8 | Stellar
®
TMAX™ Owner’s Manual

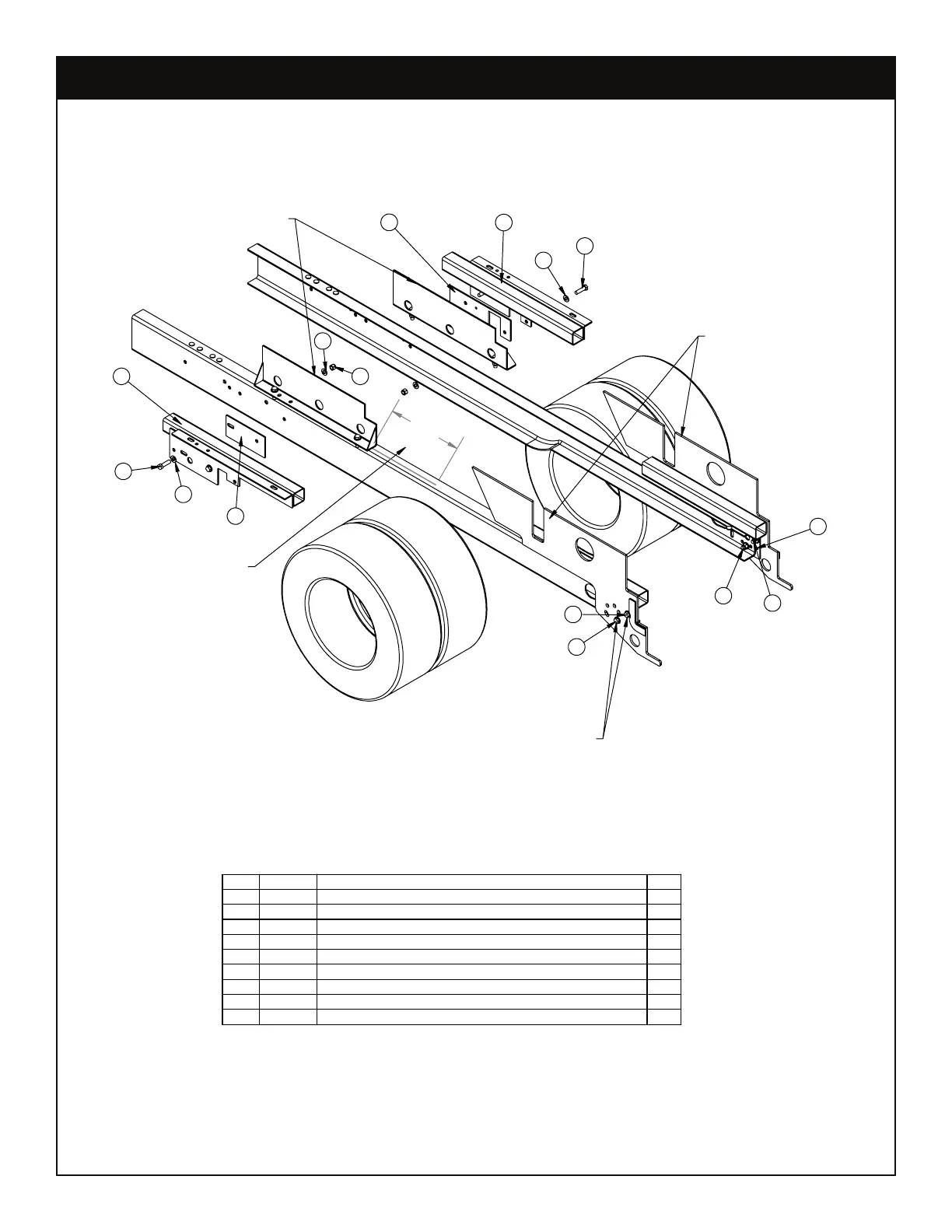

TMAX1/30K/16K-9 Mounting Kit - Dodge - PN 96076
17.13
EXISTING HOLES IN CHASSIS.
BODY MOUNT ON REAR
OF SUBFRAME.
BODY MOUNT ON FRONT
OF SUBFRAME
8
2
4
3
1
3
4
6
7
9
4
5
CENTER OF AXLE TO
REAR OF FRONT MOUNT
3
9
3
PN 96076
01 24046 1BRKT BODY MNT 60 CA T1 9 LF FRT PC BLACK
04 C5902 24WASHER 0.63 SAE FLAT YELLOW GR8
03 84053 6CAP SCR 0.63-11X2.25 HHGR8
02 24047 1BRKT BODY MNT 60 CA T1 9 RF FRT PC BLACK
05 24868 12NUT 0.63-11 HHGR8 NYLOC
06 96077 1SPACER 0.25 BODY MNT T1-9 LF D5500
07 79493 1SPACER T1 MTG D5500
08 96078 1SPACER 0.25 BODY MNT T1-9 RF D5500
09 C1025 6CAP SCR 0.63-11X2.00 HHGR8
ITEM PART No. QTY.DESCRIPTION
