TMAX™ Owner’s Manual | Page 13

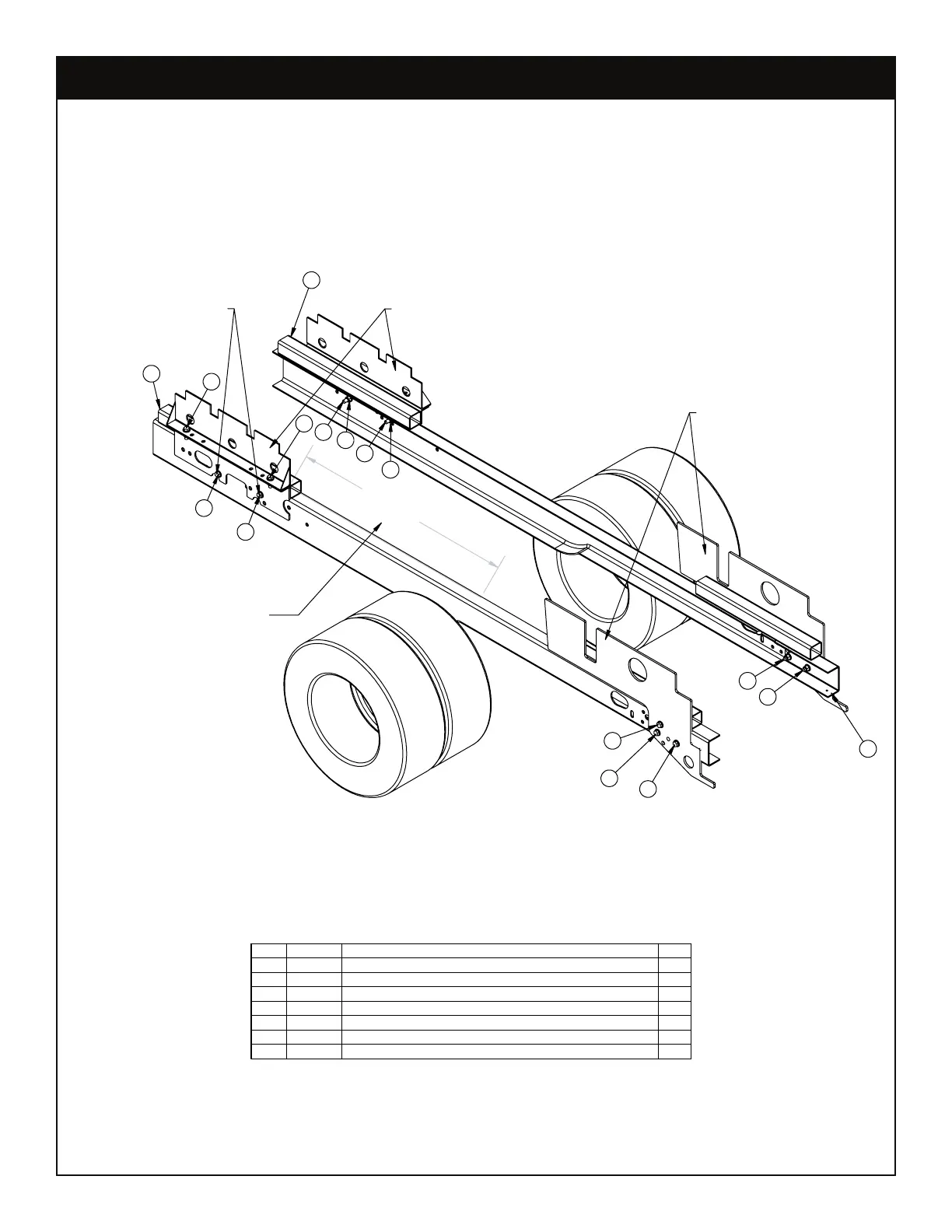

TMAX LP Mounting Kit - Ford - PN 79837
41.13 (12')
65.13 (14')
DRILL EXISTING HOLES
TO FIT 5/8 BOLT
FORD
MOUNTING HOLES.
BODY MOUNT ON REAR
OF SUBFRAME.
BODY MOUNT ON FRONT OF SUBFRAME
1
2
6
6
6
6
5
5
5
5
5
5
5
4
8
8
CENTER OF AXLE
TO REAR OF
FRONT MOUNT
PN 79837
01 13251 1BRKT BODY MNT FRONT RF PC BLACK
05 C1025 10CAP SCR 0.63-11X2.00 HHGR8
04 6408 2FRAME EXT 15.00 FORD W/HOLE
02 13254 1BRKT BODY MNT FRONT LF PC BLACK
06 84053 4CAP SCR 0.63-11X2.25 HHGR8
07 C5902 28WASHER 0.63 SAE FLAT YELLOW GR8
08 24868 14NUT 0.63-11 HHGR8 NYLOC
ITEM PART No. QTY.DESCRIPTION
