TMAX™ Owner’s Manual | Page 37

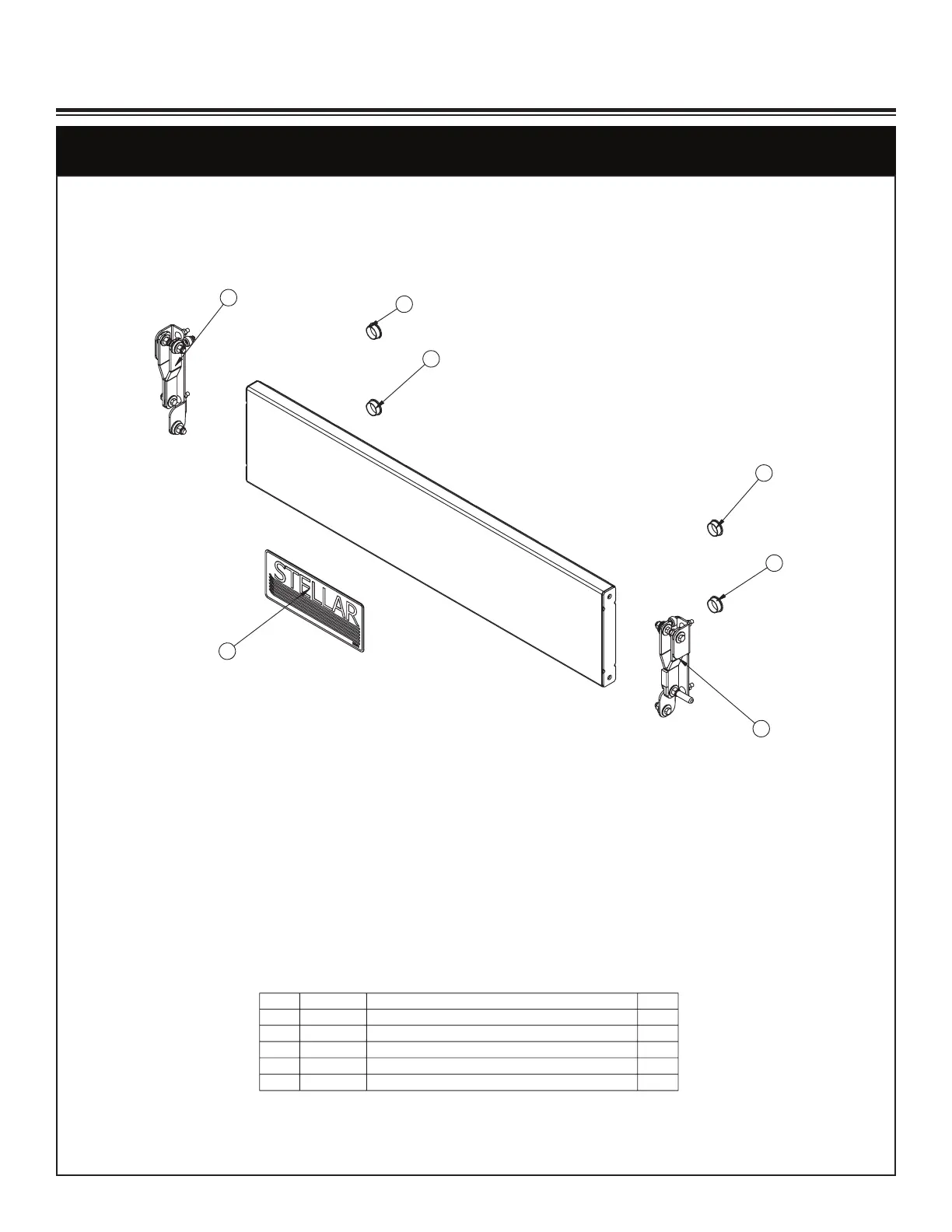

Aluminum Tailgate Assembly - PN 86100
.YTQNOITPIRCSEDTRAPMETI
1 86101 TAILGATE 12.00X52.00 MECH AL 1
2 15851 PLUG PLASTIC 1.50 HOLE 85985K29 4
3 16094 DECAL STELLAR LOGO6.00X14.25REFLECT 1
4 75917 BRKT ASM RH TAILGATE MECH 1
1HCEM ETAGLIAT HL MSA TKRB819575
3
2
5
4
2
2
2
PN 86100
Chapter 4 - Assembly Drawings
