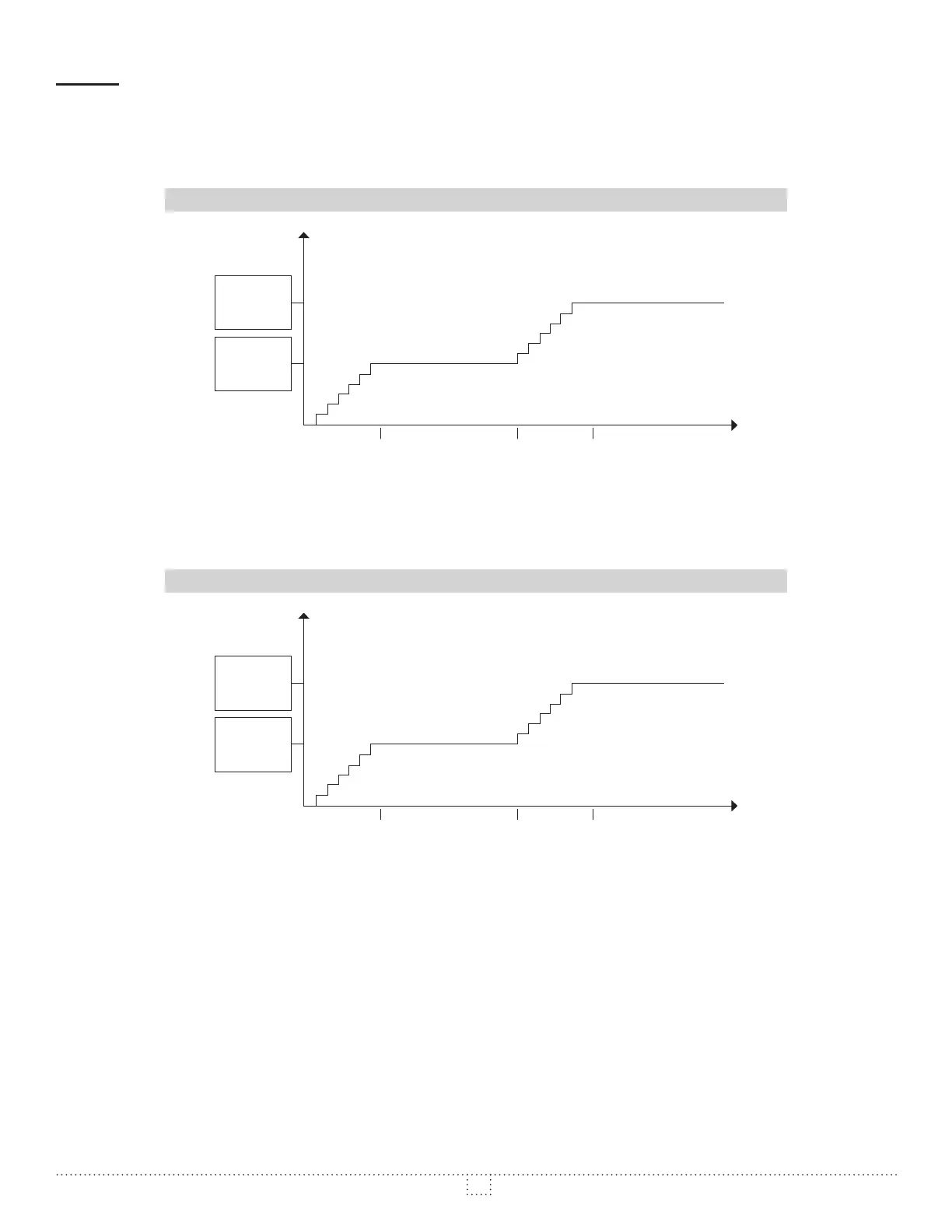

HEATING DEMAND, ECO MODE, W1 DEMAND (WITH FURNACE INTELLIGENCE)
100% Heat,
Med speed,
Adjust. limit
50% Heat,
Low speed
Adjust. limit
5 MIN 30 MIN 35 MIN
MODES
The user can select two different heating modes by pressing the button located in the middle of the control panel (item #4 in the control panel
picture). The two modes affect the heating demand and the functions when used with the heat pump and the STANDARD mode described previ-
ously. When ECO mode is selected, the heating sequence is longer than STANDARD and the heating power will ramp-up to 50% heating for ve
(5) minutes. If a heating demand lasts 30 minutes, a second sequence of ve (5) minutes activates a ramp-up of the elements to 100% heating at
medium speed.
HEATING DEMAND, ECO MODE, W2 DEMAND (WITH FURNACE INTELLIGENCE)
100% Heat,
Med speed,
Adjust. limit
50% Heat,
Low speed
Adjust. limit
5 MIN 10 MIN 15 MIN
Also, the temperature compensation option explained previously in installation type ”B” does not operate in ECO mode.Thus, whenever the heat
pump is activated (Y demand), no electric heating will be supplied by the furnace.
For a two-stage thermostat, when the W2 is in demand, the furnace waits another ve (5) minutes before ramping-up for ve (5) minutes until 100%
of heating capacity is reached.
