API A065 series Interfacing Via bowling (MC2)/Switch pinsetters
13

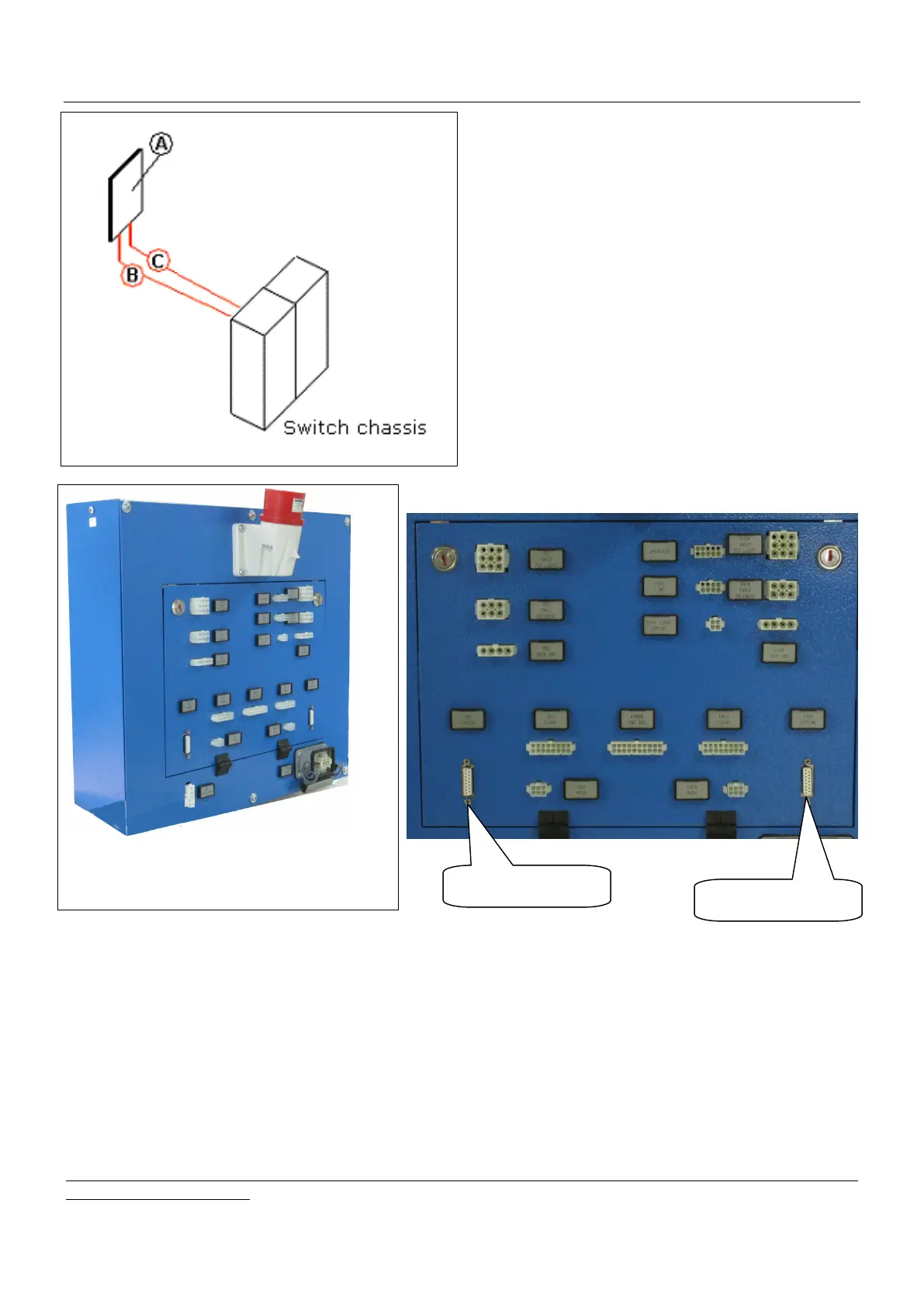

Switch pinsetter chassis Interfacing
A = A.P.I. A065 series
B = CAB-Y-CA0232A
Scoring signal cable (ODD pinsetter)
C = CAB-Y-CA0232B
Scoring signal cable (EVEN pinsetter)
Switch pinsetter Chassis
(1 chassis control one lane pair)
Switch chassis rear view
• Set the A.P.I. input jumpers for 24V input (2
nd
ball and foul).
• Open each pinsetter front channel and look for MC2 Scoring interface board.
• Lay the cable CA0232A* from A.P.I. to the chassis, connecting the DB15 on ODD score input
connector.
• Lay the cable CA0232B* from A.P.I. to the chassis, connecting the DB15 on EVEN score
input connector.
• Place the Sciba like the standard installation.
*NOTE: remove the foul input wires from CA0232A and CA0232B cable if the chassis make
continues the foul cycle
