API A065 series Interfacing Via bowling (MC2)/Switch pinsetters
12

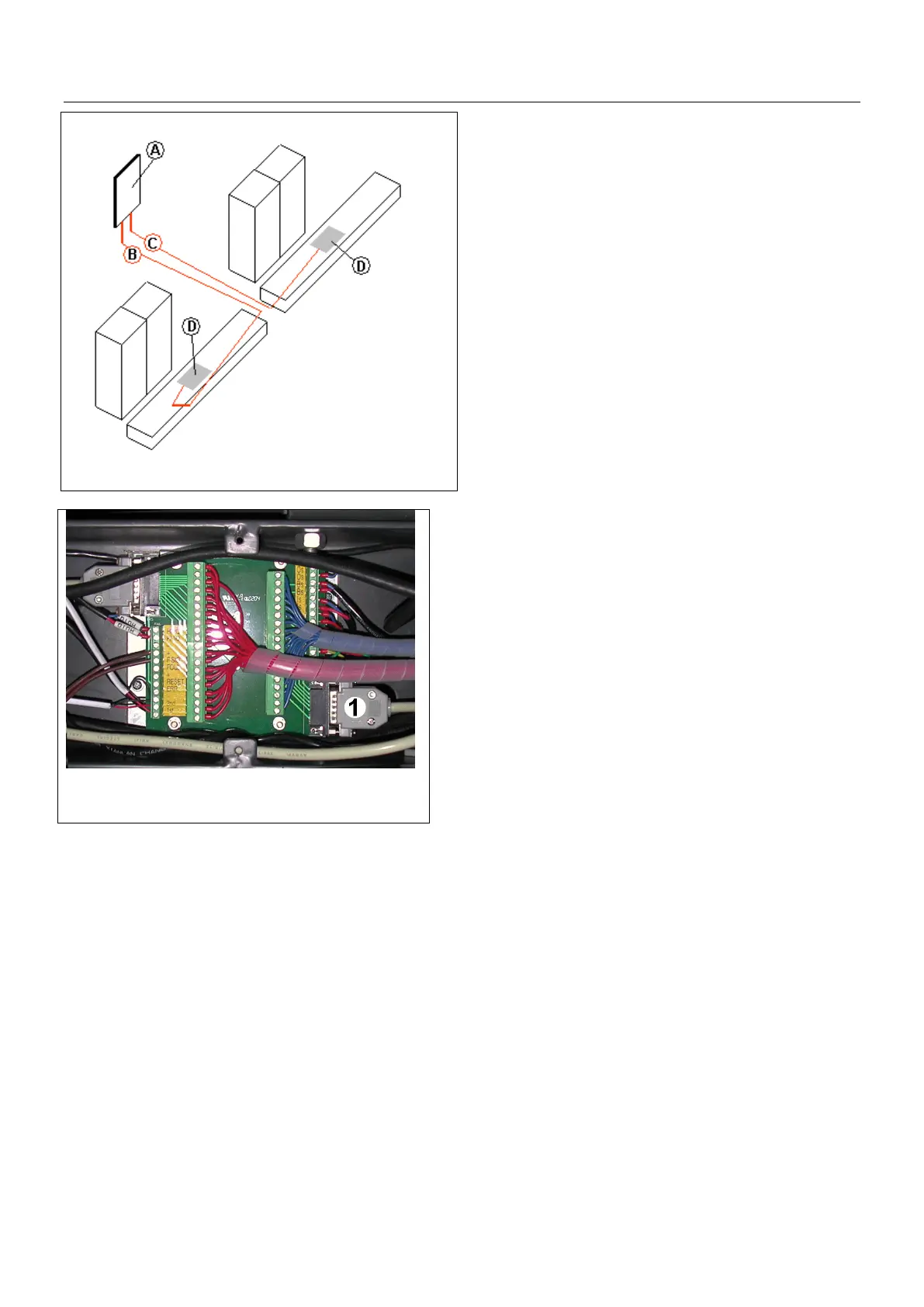

VIA Bowling (MC2) pinsetter Interfacing
A = A.P.I. A065 series
B = CAB-Y-CA0232A
Scoring signal cable (ODD pinsetter)
C = CAB-Y-CA0232B
Scoring signal cable (EVEN pinsetter)
D = VIA MC2 Scoring interface board
Via MC2 Scoring interface board
1 = Scoring interface connector
• Set the A.P.I. input jumpers for 24V input (2
nd
ball and foul).
• Open each pinsetter front channel and look for MC2 Scoring interface board.
• Lay the cable CA0232A from A.P.I. to ODD MC2 Scoring interface board.
• Lay the cable CA0232B from A.P.I. to EVEN MC2 Scoring interface board.
• Place the Sciba like the standard installation.
