API A065 series Interfacing Via bowling (MC2)/Switch pinsetters
15

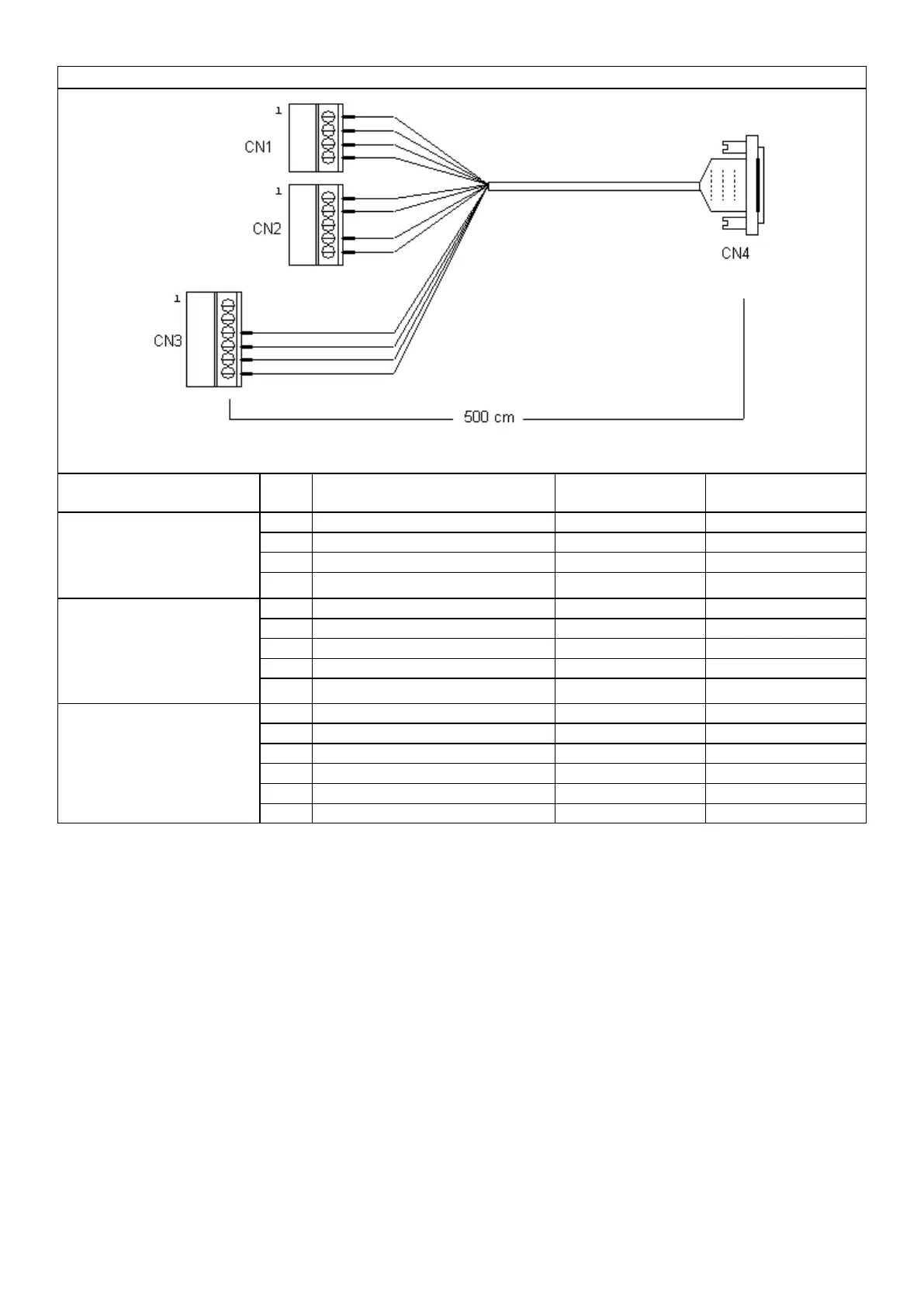

CAB-Y-CA0232A – CAB-Y-CA232B cables
Phoenix
Connector
PIN
SIGNAL
WIRE COLOUR
15 DB
male connector
1 Foul input Yellow 6
2 Foul input Green 15
3 2
nd
ball input Brown 7
CN1
(Phoenix Combicon
Female
4pin p. 5.08
4 2
nd
ball input White 14
1 Pinsetter ON Output Grey 2
2 Pinsetter ON Output Pink 11
3 - -
4 Pinsetter CYCLE Output Blue 1
CN2
(Phoenix Combicon
Female
5 pin p. 5.08
5 Pinsetter CYCLE Output Red 10
1 - - -
2 - - -
3 Strike Output Black 3
4 Strike Output Purple 9
5 Gutter Output Grey/Pink 4
CN3
(Phoenix Combicon
Female
6 pin p. 5.08
6 Gutter Output Red/Blue 12
