API A065 series Interfacing Via bowling (MC2)/Switch pinsetters
9
Connecting Bumpers, Glow,
Bar- Maintenance call light
Note:
Steltronic supply only the Phoenix connectors for connecting the outputs. Installer must
provide Cables, ties and other accessories.
Warning! The A.P.I. provide a N.O. LOW VOLTAGE DRY CONTACT RELAY, do not
connect directly to high voltage to do not damage the interface.
Please order an Steltronic H.V.B. or refer to the High voltage diagram
connection for high voltage devices connection.
BUMPER INTERFACING (LOW VOLTAGE CONNECTION)
Generally there are 3 model of Bumpers:
• Simple Toggle bumpers – this bumpers require a contact close when bumper Up or a pulse
for UP/Down the bumper
• Bumper Toggle + UP SWITCH – this bumper require a pulse for UP/Down the bumper and
2 or 1 switch for control the bumpers position.
• Bumper Toggle + UP/DOWN SWITCH – this kind of bumpers has 2 different motors and it
required the Steltronic H.V.B. for drive it.
Note: A.P.I. Bumpers output is always an N.O. Dry contact relays,
working mode is selectable by Front Desk software settings.

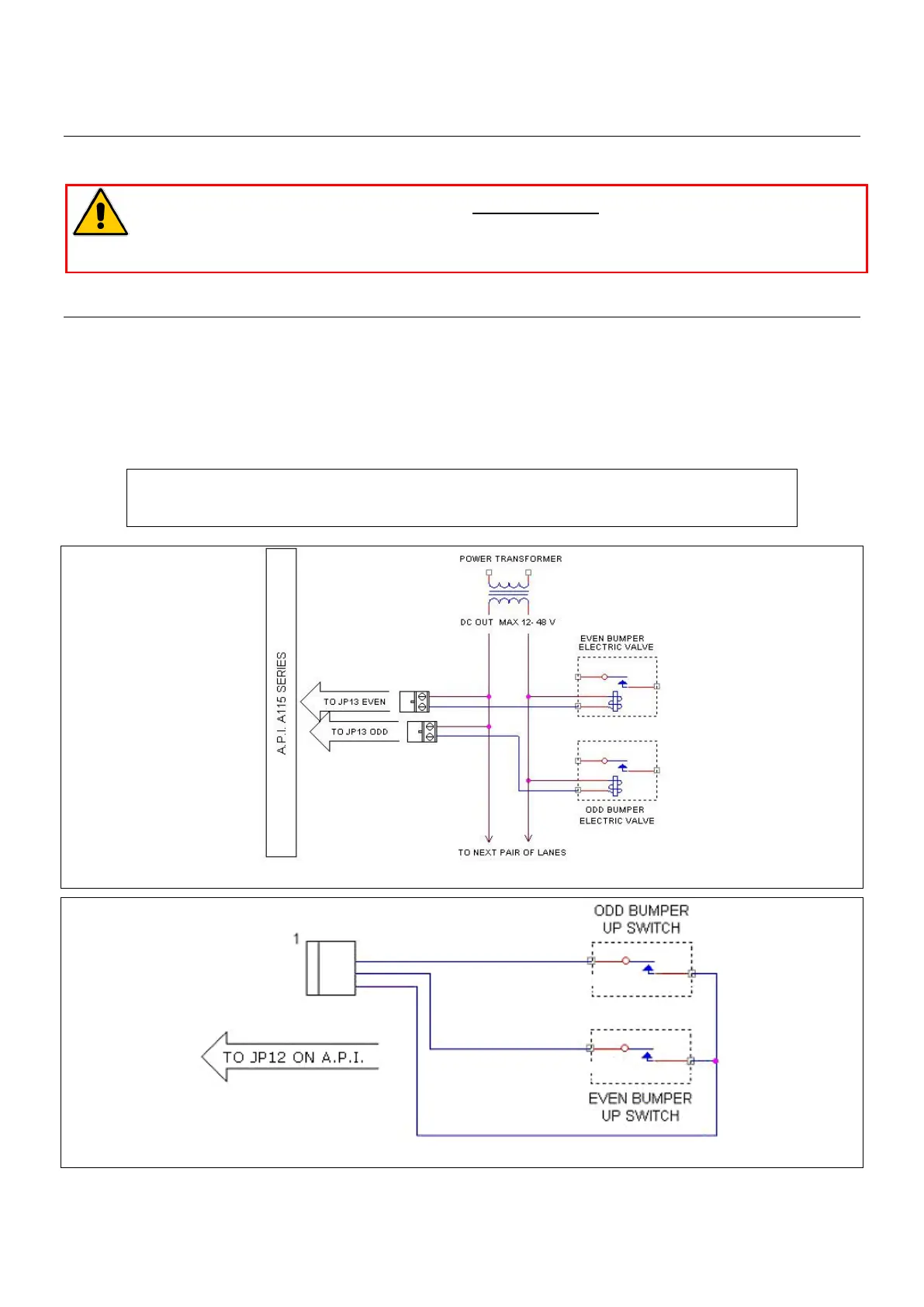

Simple toggle Bumpers connections
Auxiliary connection for toggle Bumpers + UP Switch connections
To Next Page
