SteppIR 3 Element Yagi - Page 18

18
Note: If you are wiring the control cable yourself using a 25 pin connector and backshell instead of using the
above dSub field splice, use the same pin numbers shown above. For the 25 pin connector installation, you would
solder the ground wire to the case of the 25 pin connector and then put the backshell on.
12 WIRE CONTROL CABLE
BLACK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GREY
WHITE
PINK
CRÈME
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
SHIELD WIRE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

G
25 PIN DSUB
FIELD SPLICE
TERMINAL STRIPS (3)

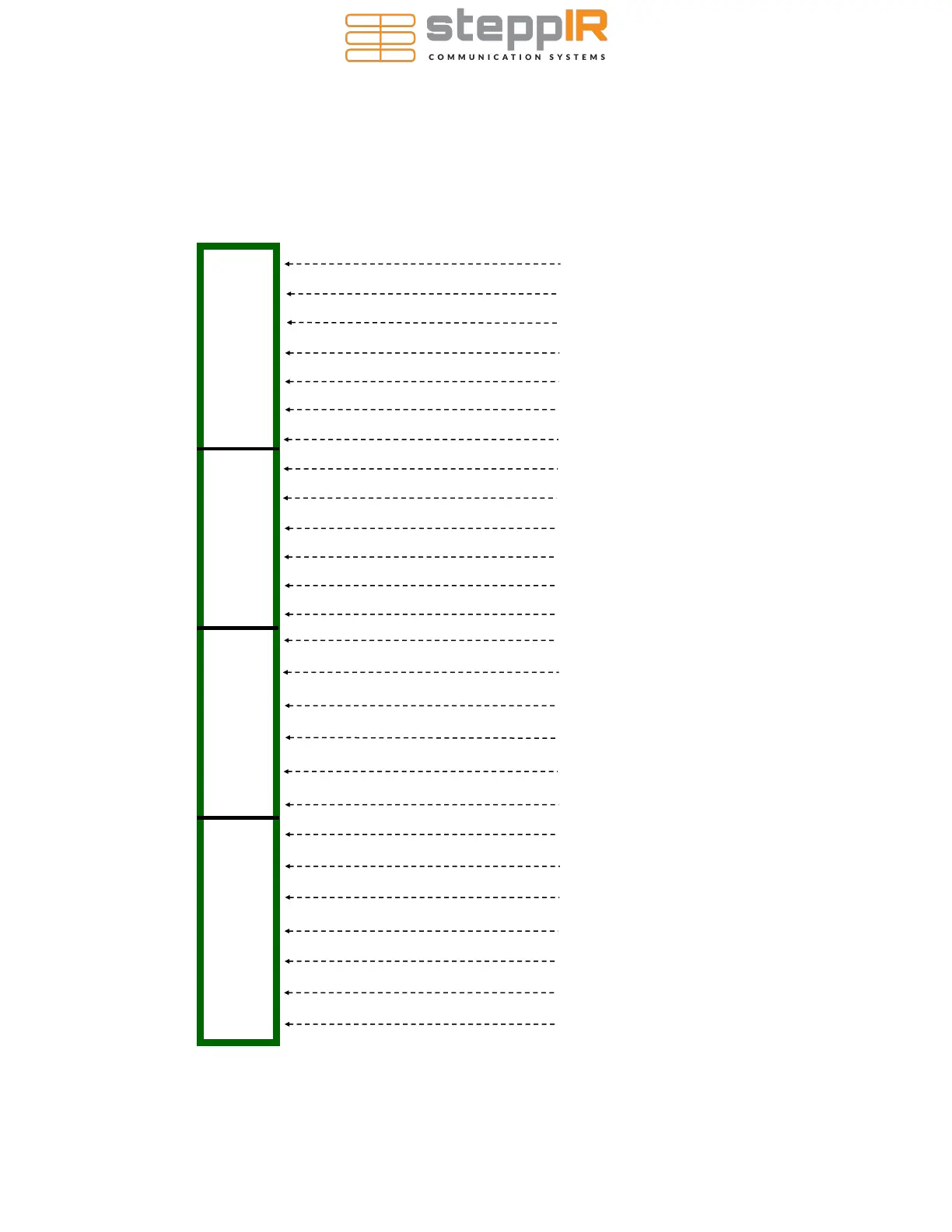

FIG. 23
25 PIN DSUB SPLICE INSTALLATION
